3M Products & Supplies

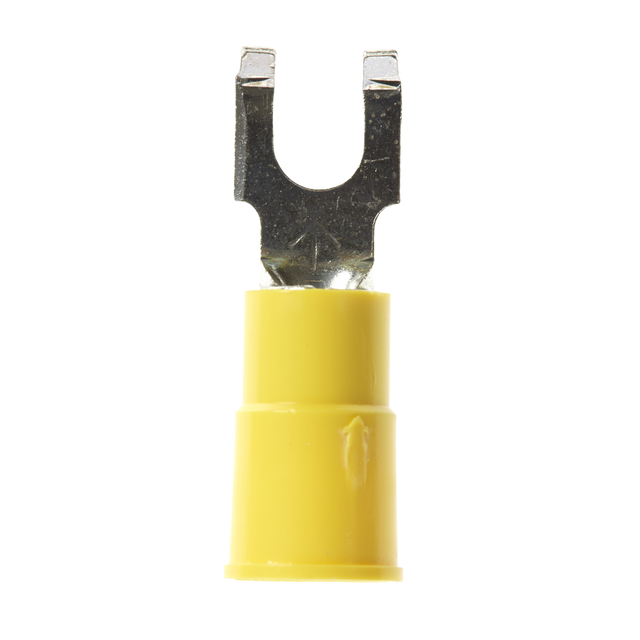

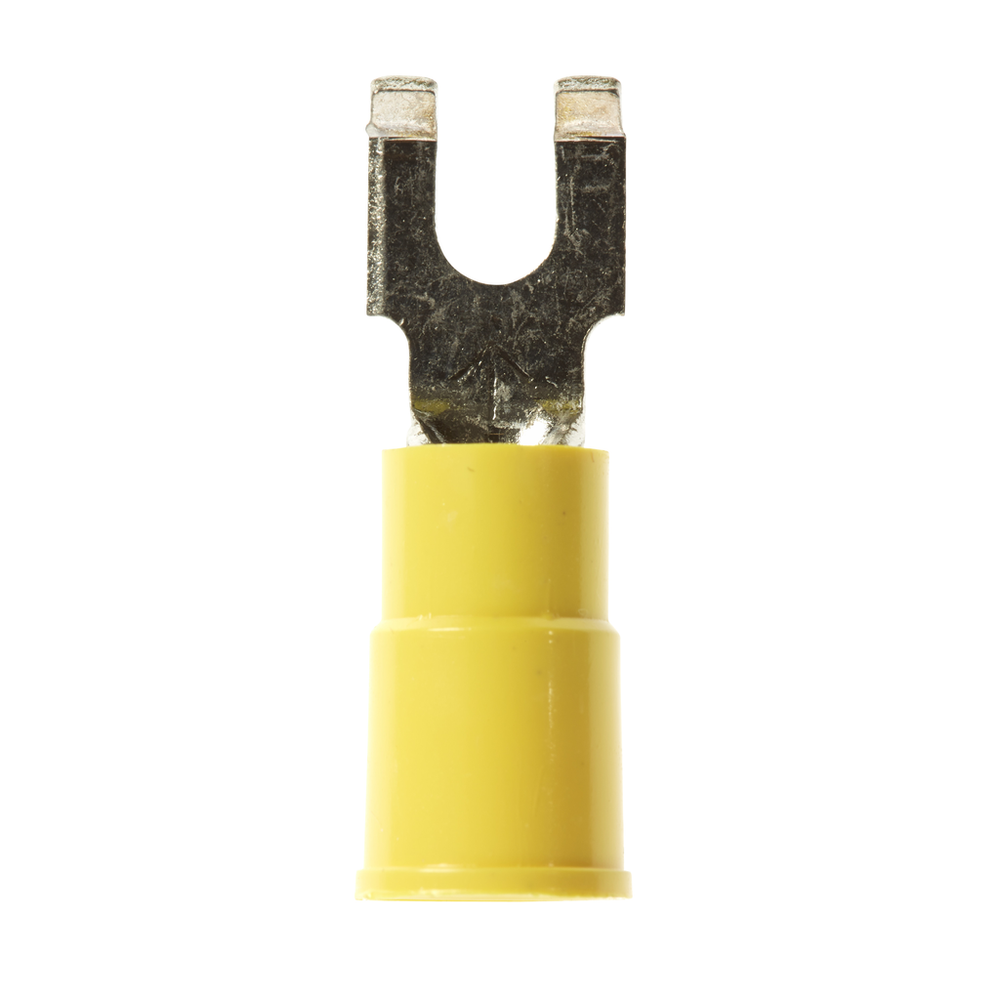

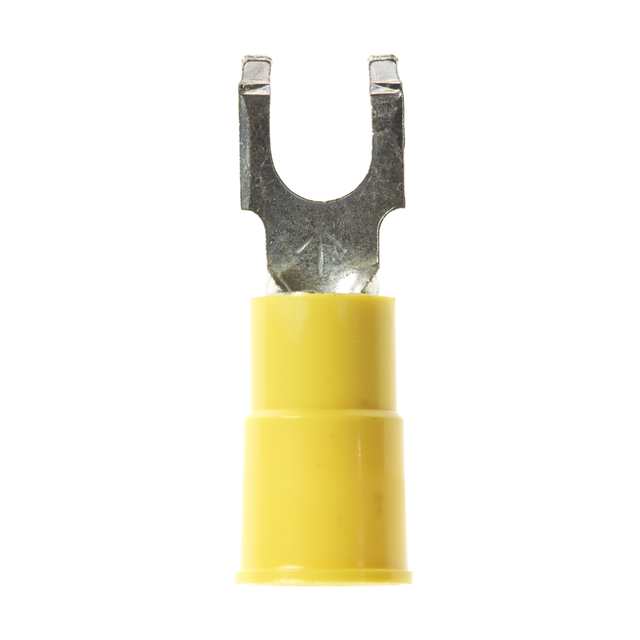

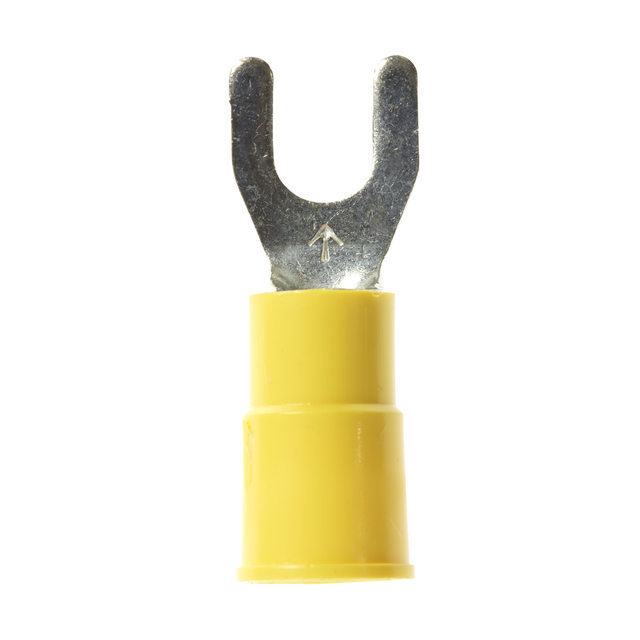

3M™ Scotchlok™ Block Flanged Fork, Vinyl Insulated Butted Seam MVU10-6FFBK, 12-10 AWG, 500/Case - 7000132265

Sold As: 500-Pack
SKU: 7000132265
MPN: 7000132265
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007020387
3M ID: 80610050272
5 Digit UPC: 2038
$243.12 ($0.49 / Count)
Hurry up! Current stock:

Product Description

3M™ Flanged Block Fork Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Suitable for use in a terminal block
  • Electrolytic copper construction offers good conductivity
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Insulation MaterialVinyl
Terminal TypeFork
Maximum Operating Temperature (Celsius) UOMDegree
Terminal StyleFlanged Block
Connection Width (Imperial)0.138
Overall Length (Imperial) UOMin
Connection Width (Imperial) UOMin
Minimum Conductor Size (Metric)3.31 mm²
Maximum Conductor Size (Imperial)10 AWG
Connection Width (Metric) UOMmm
Maximum Operating Temperature (Celsius)105.0
Overall Width (Imperial)0.32
Barrel StyleButted
Overall Length (Imperial)1.03
Minimum Conductor Size (Imperial)12 AWG
Overall Width (Imperial) UOMin
Connection Width (Metric)3.5
Maximum Conductor Size (Metric)5.26 mm²
