3M Products & Supplies

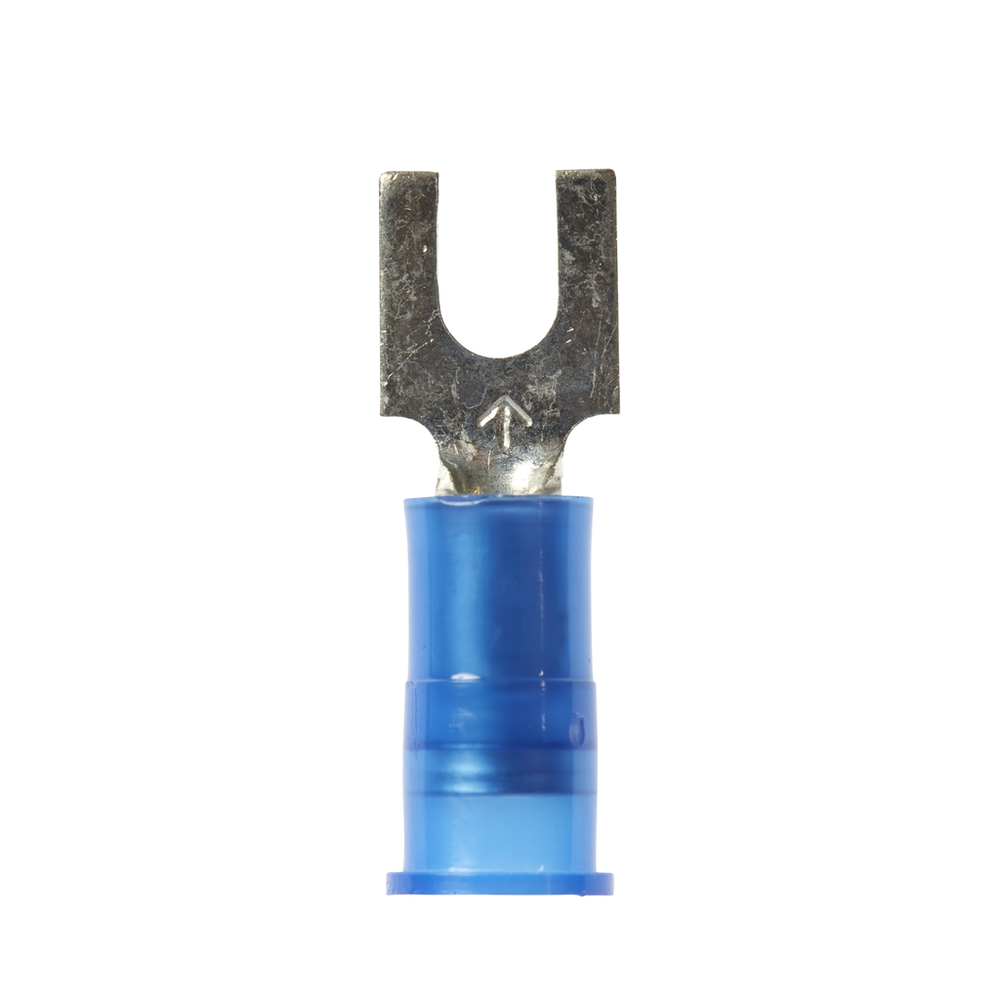

3M™ Scotchlok™ Block Fork Nylon Insulated, 100/bottle, MNG14-6FBX, suitable for use in a terminal block, 500/Case - 7000133306

Sold As: 100-Pack
SKU: 7000133306
MPN: 7000133306
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128587126
3M ID: 80611458573
5 Digit UPC: 58712
$112.37 ($1.12 / Count)
Hurry up! Current stock:

Product Description

Downloads

Specifications

Country of OriginUnited States
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Conductor Size (Imperial)14 AWG
Overall Length (Metric)21.844
Overall Length (Metric) UOMmm
Terminal StyleBlock
Maximum Insulation Outside Diameter0.145 in
Minimum Conductor Size (Imperial)16 AWG
Maximum Insulation Outer Diameter (Imperial)0.17
Maximum Operating Temperature (Fahrenheit)221.0
Maximum Insulation Outer Diameter (Metric) UOMmm
Insulation MaterialNylon with Insulation Grip
Maximum Recommended Voltage Rating UOMV
Product ColorBlue
Packaging100 per bottle
Maximum Insulation Outer Diameter (Metric)3.7
Maximum Recommended Voltage Rating600.0
Overall Length (Imperial) UOMin
Dimension E0.71 Inch
Overall Width (Imperial)0.3
Overall Width (Imperial) UOMin
UL File NumberE23438
Barrel Inside Diameter0.090 Inch
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Stud Size#6
Fork TypeBlock
Terminal TypeFork
Overall Width (Metric)7.62
Maximum Conductor Size (Metric)2.08 mm²
Overall Length (Imperial)0.86
MaterialETP Copper
Units per Case500.0
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Celsius)105.0
Clearance (C)0.25 Inch
Overall Width (Metric) UOMmm
Minimum Conductor Size (Metric)1.31 mm²
Maximum Insulation Outer Diameter (Imperial) UOMin
Barrel StyleButted
