3M Products & Supplies

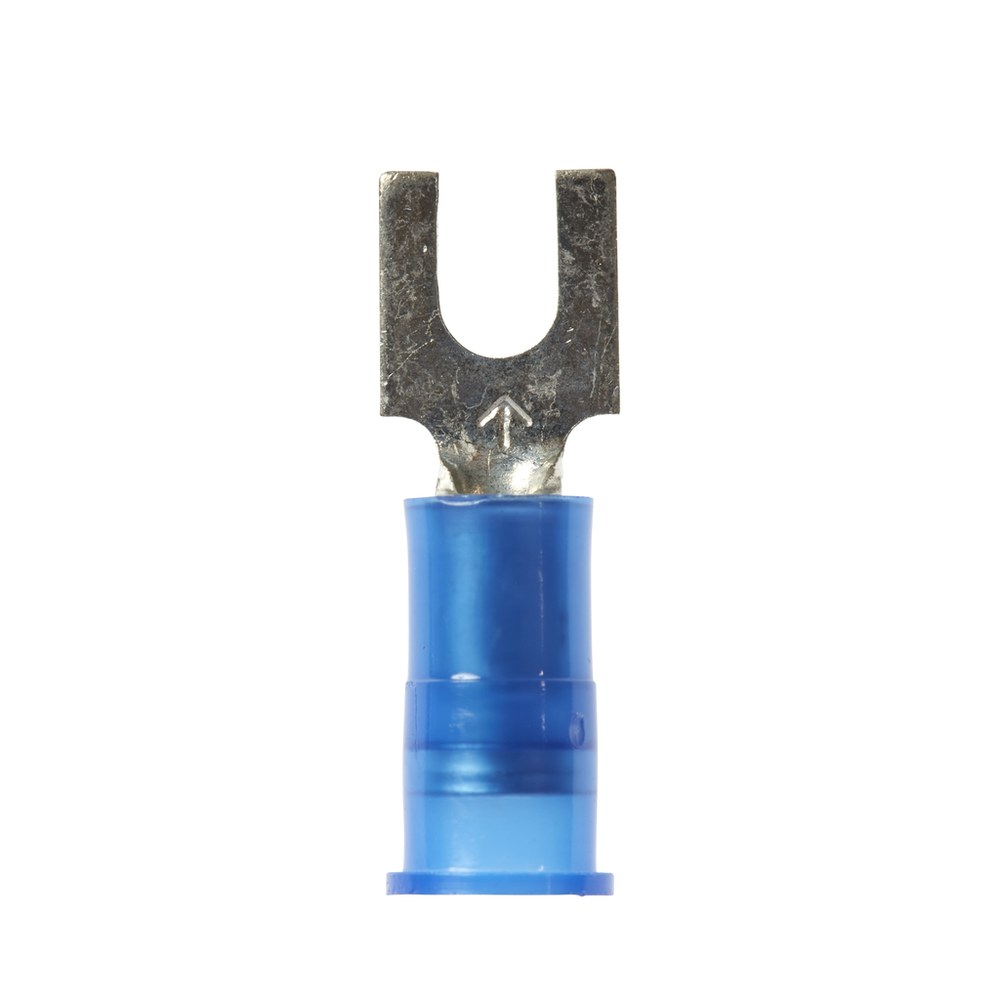

3M™ Scotchlok™ Block Fork, Nylon Insulated w/Insulation Grip MNG14-6FB/SK, Stud Size 6, 1000/Case - 7100164029

Sold As: 1000-Pack
SKU: 7100164029
MPN: 7100164029
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007015802
3M ID: 80610043863
5 Digit UPC: 1580
$466.71 ($0.47 / Count)
Hurry up! Current stock:

Product Description

Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Maximum Insulation Outer Diameter (Imperial) UOMin
Fork TypeBlock
Maximum Conductor Size (Metric)2.08 mm²
Stud Diameter (Imperial)0.138
Barrel Length (Imperial)0.25 Inch
Clearance (C)0.25 Inch
Stud Size#6
Terminal StyleBlock
Minimum Conductor Size (Imperial)16 AWG
Stud Diameter (Metric)3.505
Maximum Conductor Size (Imperial)14 AWG
Terminal TypeFork
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Imperial) UOMin
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Overall Length (Imperial)0.86
Insulation MaterialNylon with Insulation Grip
Packaging1000 per bulk box
Dimension E0.71 Inch
Units per Case1000.0
Barrel StyleButted
Barrel Inside Diameter0.090 Inch
Maximum Operating Temperature (Fahrenheit)221.0
Minimum Conductor Size (Metric)1.31 mm²
Maximum Operating Temperature (Celsius) UOMDegree
UL File NumberE23438
Overall Width (Imperial)0.25
Stud Diameter (Imperial) UOMin
Stud Diameter (Metric) UOMmm
Maximum Insulation Outer Diameter (Imperial)0.17
Maximum Operating Temperature (Celsius)105.0
Overall Width (Imperial) UOMin
