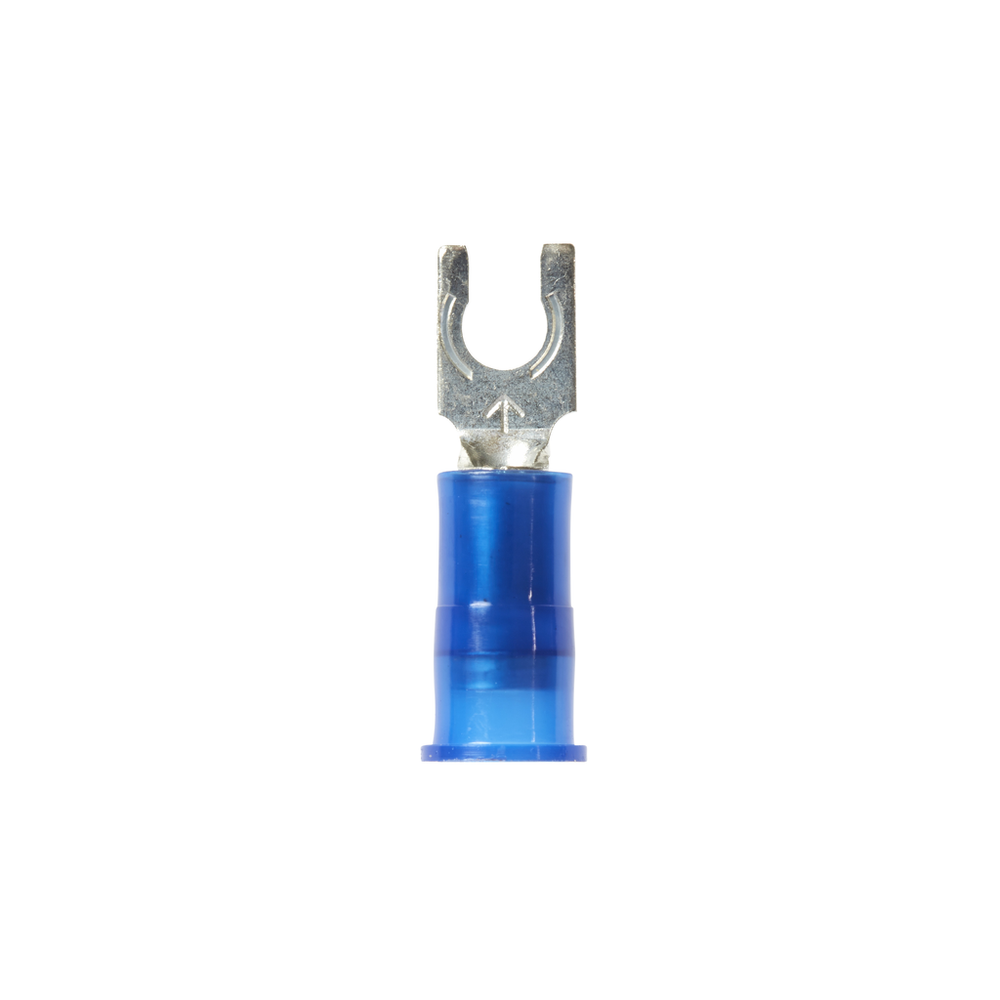

3M™ Scotchlok™ Locking Fork, Nylon Insulated w/Insulation Grip MNG14-6FLK, Stud Size 6, 1000/Case - 7100164067

Sold As: 1000-Pack
SKU: 7100164067
MPN: 7100164067
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007018674
3M ID: 80610047963
5 Digit UPC: 1867
$466.71 ($0.47 / Count)
Hurry up! Current stock:

Product Description

3M™ Locking Fork Terminal has a spring-like tongue to securely lock around the stud. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Spring-like tongue firmly fits around the stud
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Maximum Insulation Outer Diameter (Imperial)0.17
Maximum Operating Temperature (Fahrenheit) UOMDegree
Barrel Inside Diameter0.09 Inch
Maximum Conductor Size (Imperial)14 AWG
Maximum Operating Temperature (Celsius)105.0
Stud Diameter (Metric)3.505
Stud Size#6
Packaging1000 per bulk box
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Dimension E0.71 Inch
Insulation MaterialNylon with Insulation Grip
Maximum Operating Temperature (Celsius) UOMDegree
Overall Length (Imperial)0.89
Units per Case1000.0
Stud Diameter (Imperial)0.138
Fork TypeLocking
Barrel StyleButted
Maximum Operating Temperature (Fahrenheit)221.0
Maximum Conductor Size (Metric)2.08 mm²
UL File NumberE23438
Minimum Conductor Size (Imperial)16 AWG
Maximum Insulation Outer Diameter (Imperial) UOMin
Overall Width (Imperial) UOMin
Terminal StyleLocking
Minimum Conductor Size (Metric)1.31 mm²
Clearance (C)0.25 Inch
Overall Length (Imperial) UOMin
Barrel Length (Imperial)0.25 Inch
Overall Width (Imperial)0.24
Stud Diameter (Metric) UOMmm
Stud Diameter (Imperial) UOMin
Maximum Lock Width0.27 Inch
