3M Products & Supplies

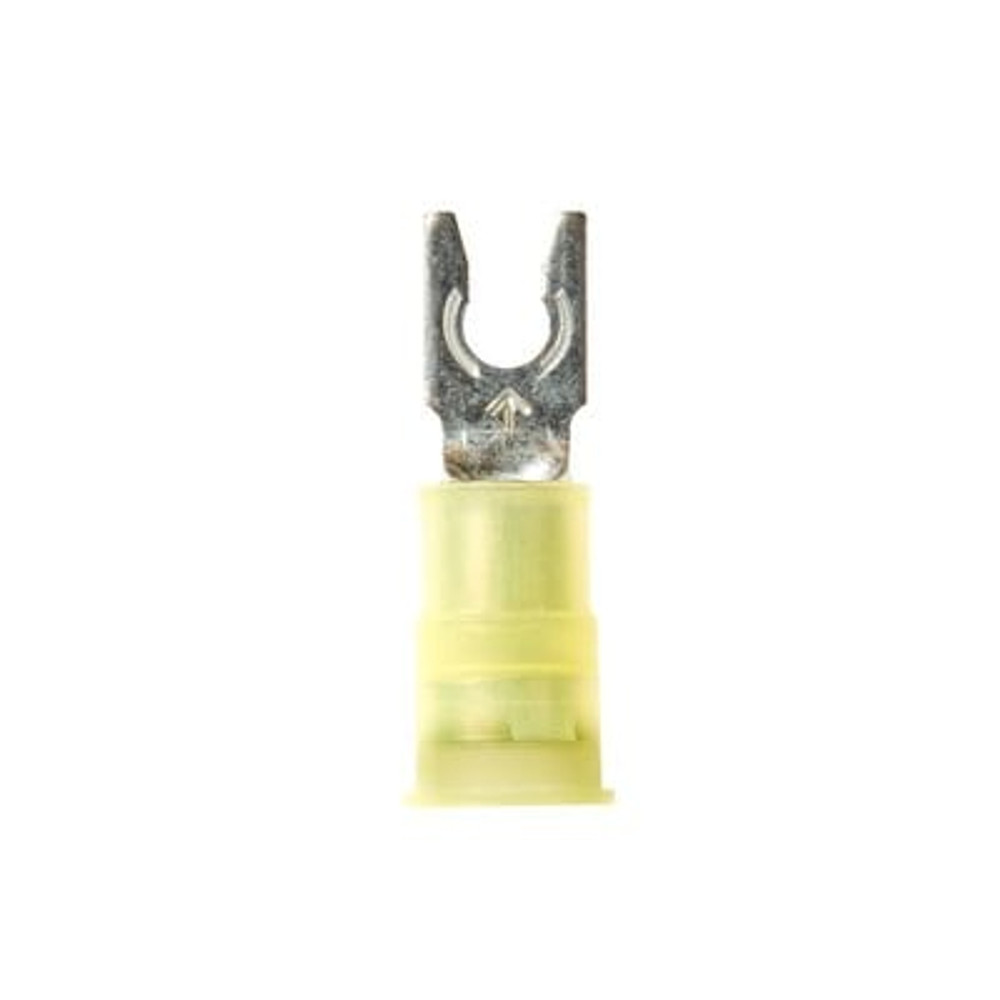

3M™ Scotchlok™ Locking Fork, Nylon Insulated w/Insulation Grip MNG10-6FLK, Stud Size 6, 500/Case - 7100164142

Sold As: 500-Pack
SKU: 7100164142
MPN: 7100164142
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007021063
3M ID: 80610051072
5 Digit UPC: 2106
$392.95 ($0.79 / Count)
Hurry up! Current stock:

Product Description

3M™ Locking Fork Terminal has a spring-like tongue to securely lock around the stud. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Spring-like tongue firmly fits around the stud
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Maximum Lock Width0.3 Inch
Stud Diameter (Metric)3.505
Barrel StyleButted
Minimum Conductor Size (Imperial)12 AWG
Stud Diameter (Imperial)0.138
Maximum Conductor Size (Imperial)10 AWG
Insulation MaterialNylon with Insulation Grip
Overall Length (Imperial) UOMin
Maximum Operating Temperature (Fahrenheit)221.0
Stud Size#6
Maximum Insulation Outer Diameter (Imperial)0.25
Units per Case500.0
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Insulation Outer Diameter (Imperial) UOMin
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Minimum Conductor Size (Metric)3.31 mm²
Stud Diameter (Imperial) UOMin
Packaging500 per bulk box
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Width (Imperial) UOMin
Terminal StyleLocking
Overall Length (Imperial)1.03
Maximum Conductor Size (Metric)5.26 mm²
Clearance (C)0.28 Inch
Dimension E0.83 Inch
Barrel Inside Diameter0.135 Inch
Overall Width (Imperial)0.3
UL File NumberE23438
Fork TypeLocking
Maximum Operating Temperature (Celsius)105.0
Barrel Length (Imperial)0.25 Inch
Stud Diameter (Metric) UOMmm
