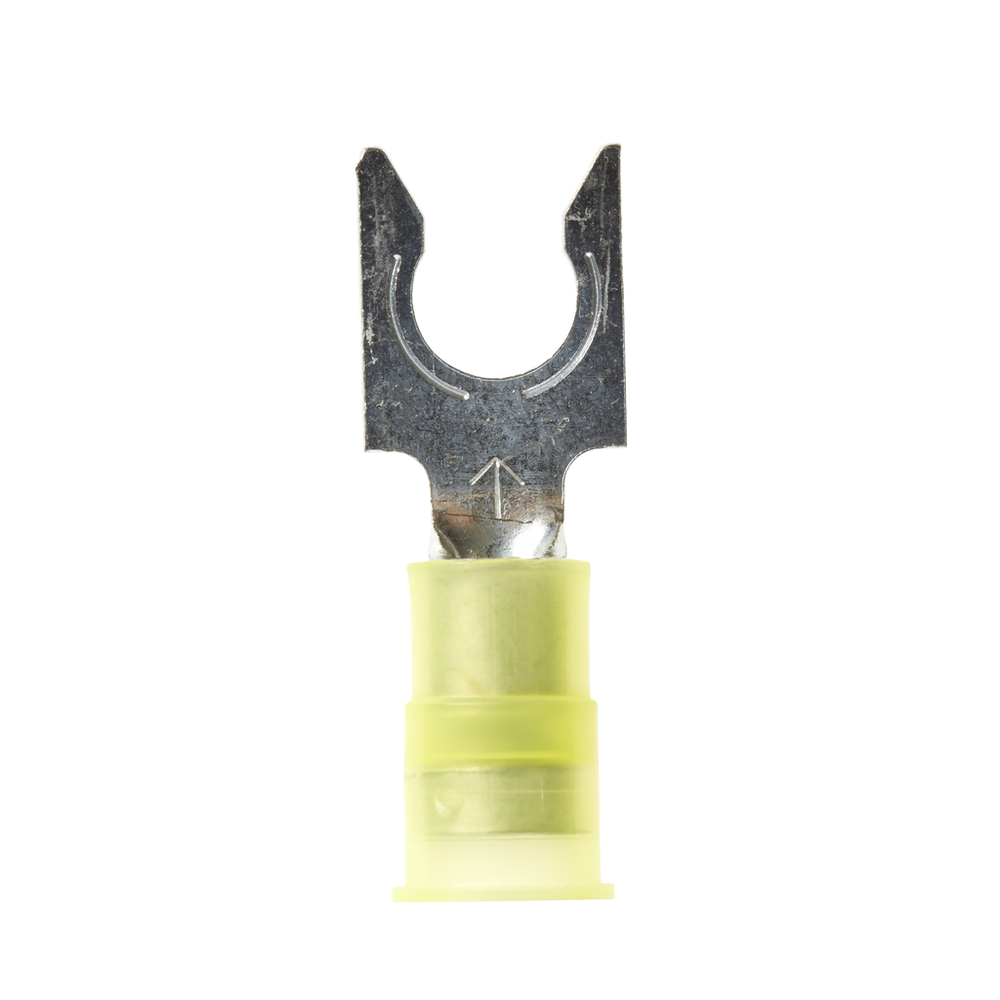

3M™ Scotchlok™ Locking Fork, Nylon Insulated w/Insulation Grip MNG10-14FLK, Stud Size 1/4, 500/Case - 7100164145

Sold As: 500-Pack
SKU: 7100164145
MPN: 7100164145
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007021094
3M ID: 80610051106
5 Digit UPC: 2109
$486.95 ($0.97 / Count)
Hurry up! Current stock:

Product Description

3M™ Locking Fork Terminal has a spring-like tongue to securely lock around the stud. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Spring-like tongue firmly fits around the stud
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Maximum Insulation Outer Diameter (Imperial)0.25
Barrel StyleButted
Maximum Operating Temperature (Celsius)105.0
Maximum Insulation Outer Diameter (Imperial) UOMin
Clearance (C)0.44 Inch
Stud Diameter (Metric) UOMmm
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Conductor Size (Metric)5.26 mm²
Stud Diameter (Imperial)0.25
Packaging500 per bulk box
Insulation MaterialNylon with Insulation Grip
Overall Width (Imperial)0.48
Stud Diameter (Imperial) UOMin
Maximum Lock Width0.48 Inch
Maximum Operating Temperature (Celsius) UOMDegree
Overall Length (Imperial) UOMin
Minimum Conductor Size (Imperial)12 AWG
Fork TypeLocking
Stud Size1/4 Inch
Maximum Conductor Size (Imperial)10 AWG
Dimension E0.99 Inch
Minimum Conductor Size (Metric)3.31 mm²
Stud Diameter (Metric)6.35
Overall Width (Imperial) UOMin
UL File NumberE23438
Terminal StyleLocking
Overall Length (Imperial)1.24
Barrel Inside Diameter0.135 Inch
Barrel Length (Imperial)0.25 Inch
Maximum Operating Temperature (Fahrenheit)221.0
Units per Case500.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
