3M Products & Supplies

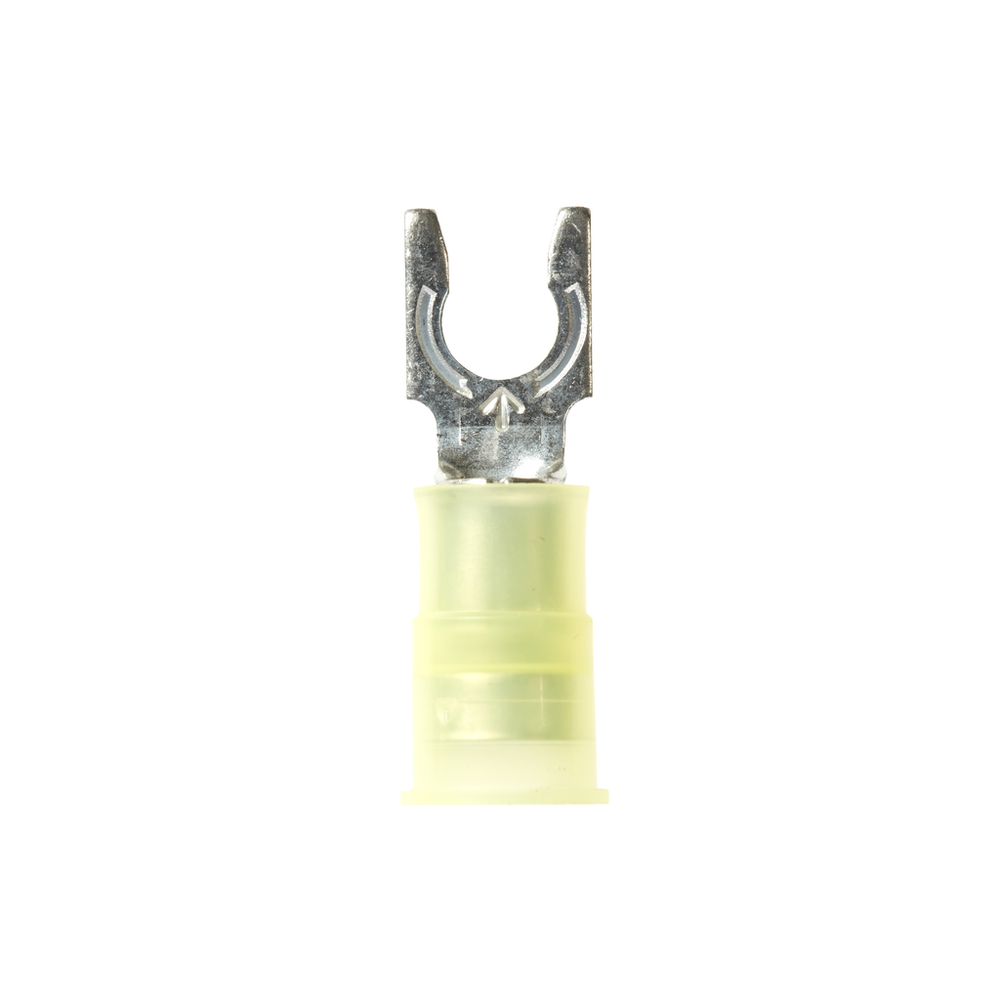

3M™ Scotchlok™ Locking Fork, Nylon Insulated w/Insulation Grip MNG10-10FLK, Stud Size 10, 500/Case - 7100164144

Sold As: 500-Pack
SKU: 7100164144
MPN: 7100164144
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007021087
3M ID: 80610051098
5 Digit UPC: 2108
$245.37 ($0.49 / Count)
Hurry up! Current stock:

Product Description

3M™ Locking Fork Terminal has a spring-like tongue to securely lock around the stud. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Spring-like tongue firmly fits around the stud
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Clearance (C)0.28 Inch
Fork TypeLocking
Terminal StyleLocking
Minimum Conductor Size (Imperial)12 AWG
Minimum Conductor Size (Metric)3.31 mm²
Maximum Operating Temperature (Celsius)105.0
Overall Width (Imperial) UOMin
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Operating Temperature (Fahrenheit) UOMDegree
Dimension E0.83 Inch
Maximum Conductor Size (Metric)5.26 mm²
Barrel StyleButted
Overall Length (Imperial)1.03
Barrel Length (Imperial)0.25 Inch
Maximum Conductor Size (Imperial)10 AWG
Maximum Operating Temperature (Fahrenheit)221.0
Barrel Inside Diameter0.135 Inch
Stud Diameter (Metric)4.826
Maximum Operating Temperature (Celsius) UOMDegree
UL File NumberE23438
Stud Size#10
Stud Diameter (Imperial)0.19
Maximum Insulation Outer Diameter (Imperial) UOMin
Overall Length (Imperial) UOMin
Packaging500 per bulk box
Overall Width (Imperial)0.36
Maximum Insulation Outer Diameter (Imperial)0.25
Maximum Lock Width0.36 Inch
Insulation MaterialNylon with Insulation Grip
Stud Diameter (Imperial) UOMin
Units per Case500.0
Stud Diameter (Metric) UOMmm
