3M Products & Supplies

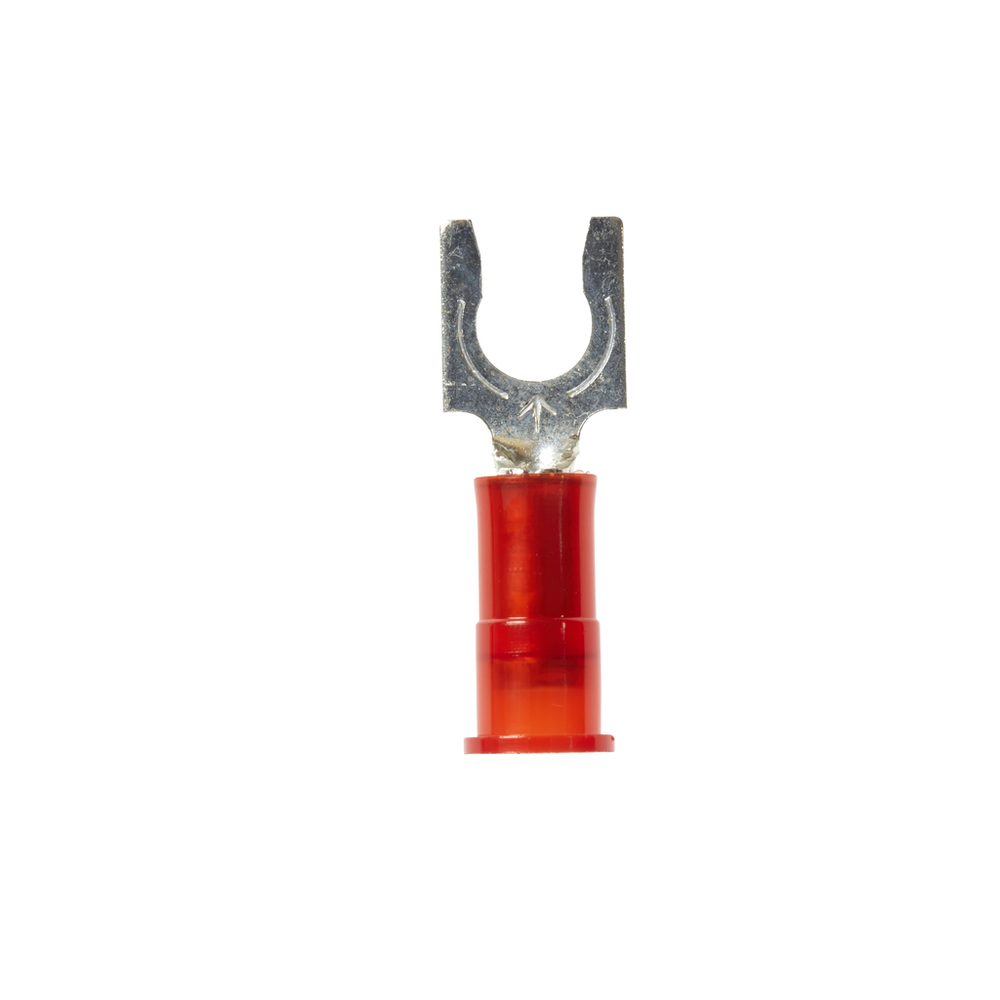

3M™ Scotchlok™ Locking Fork, Nylon Insulated w/Insulation Grip MNG18-10FLK, Stud Size 10, 1000/Case - 7100163981

Sold As: 1000-Pack
SKU: 7100163981
MPN: 7100163981
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007013587
3M ID: 80610039978
5 Digit UPC: 1358
$626.31 ($0.63 / Count)
Hurry up! Current stock:

Product Description

3M™ Locking Fork Terminal has a spring-like tongue to securely lock around the stud. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Spring-like tongue firmly fits around the stud
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Minimum Conductor Size (Metric)0.326 mm²
Fork TypeLocking
UL File NumberE23438
Maximum Insulation Outer Diameter (Imperial) UOMin
Maximum Operating Temperature (Celsius)105.0
Stud Diameter (Imperial)0.19
Maximum Operating Temperature (Fahrenheit)221.0
Overall Length (Imperial) UOMin
Maximum Operating Temperature (Celsius) UOMDegree
Insulation MaterialNylon with Insulation Grip
Overall Width (Imperial) UOMin
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Stud Diameter (Metric)4.826
Clearance (C)0.25 Inch
Maximum Operating Temperature (Fahrenheit) UOMDegree
Stud Diameter (Imperial) UOMin
Barrel StyleButted
Stud Diameter (Metric) UOMmm
Maximum Lock Width0.35 Inch
Overall Length (Imperial)0.87
Overall Width (Imperial)0.32
Packaging1000 per bulk box
Stud Size#10
Terminal StyleLocking
Dimension E0.69 Inch
Units per Case1000.0
Maximum Conductor Size (Metric).0823 mm²
Maximum Conductor Size (Imperial)18 AWG
Minimum Conductor Size (Imperial)22 AWG
Barrel Length (Imperial)0.25 Inch
Barrel Inside Diameter0.07 Inch
Maximum Insulation Outer Diameter (Imperial)0.145
