3M Products & Supplies

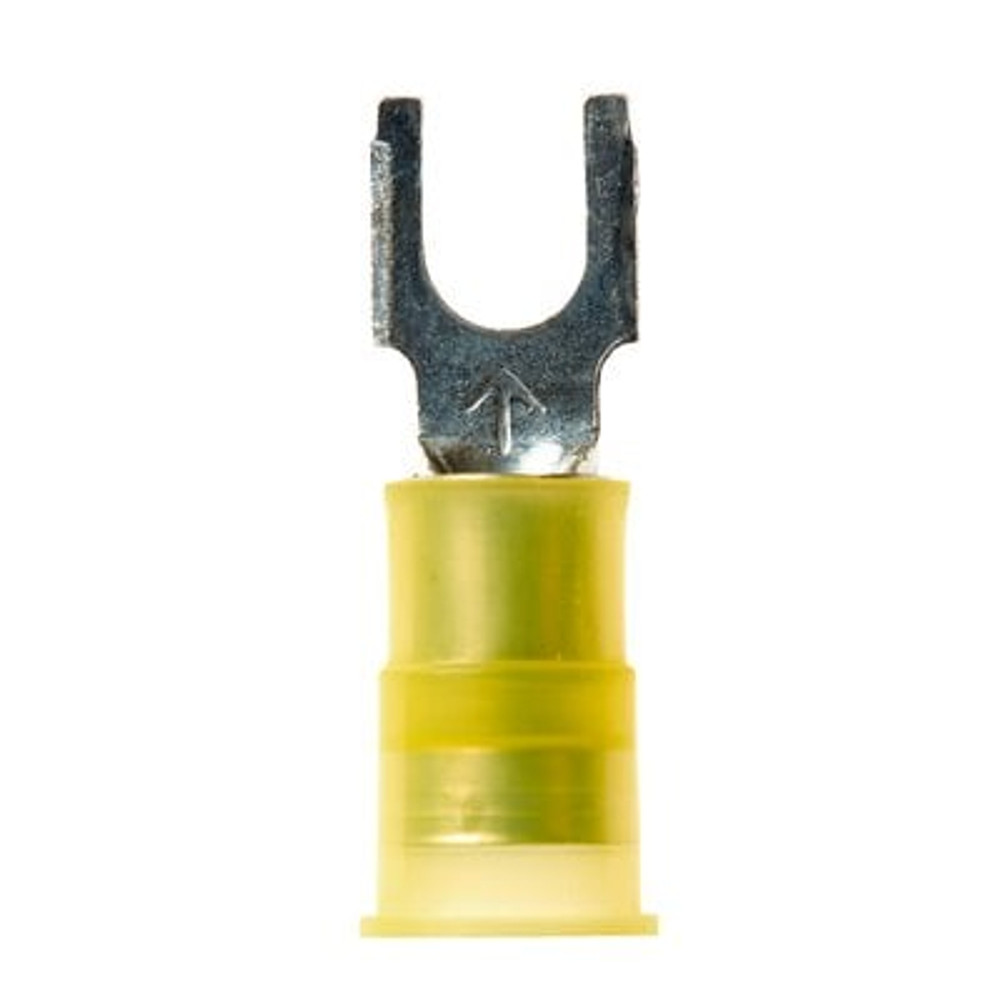

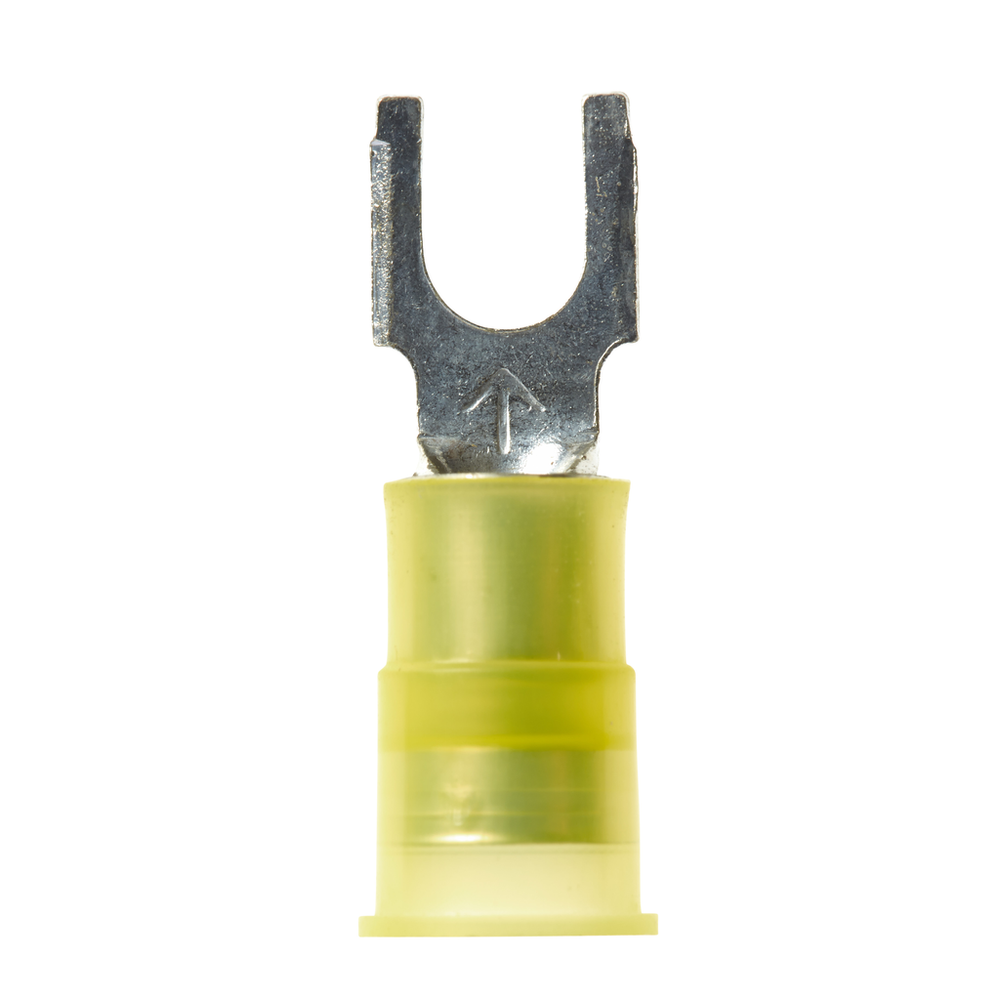

3M™ Scotchlok™ Block Fork, Nylon Insulated w/Insulation Grip MNG10-10FBK, Stud Size 10, 500/Case - 7100164116

Sold As: 500-Pack
SKU: 7100164116
MPN: 7100164116
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007020196
3M ID: 80610050082
5 Digit UPC: 2019
$337.12 ($0.67 / Count)
Hurry up! Current stock:

Product Description

Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Stud Diameter (Metric)4.826
Terminal StyleBlock
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Stud Diameter (Imperial) UOMin
Maximum Operating Temperature (Fahrenheit)221.0
Stud Diameter (Imperial)0.19
Maximum Insulation Outer Diameter (Imperial)0.25
Units per Case500.0
Maximum Conductor Size (Metric)5.26 mm²
Overall Width (Imperial) UOMin
Maximum Operating Temperature (Fahrenheit) UOMDegree
Packaging500 per bulk box
Dimension E0.84 Inch
Maximum Insulation Outer Diameter (Imperial) UOMin
Stud Diameter (Metric) UOMmm
Terminal TypeFork
Barrel Inside Diameter0.135 Inch
UL File NumberE23438
Minimum Conductor Size (Imperial)12 AWG
Overall Width (Imperial)0.32
Stud Size#10
Barrel StyleButted
Clearance (C)0.29 Inch
Barrel Length (Imperial)0.25 Inch
Maximum Operating Temperature (Celsius)105.0
Overall Length (Imperial) UOMin
Fork TypeBlock
Overall Length (Imperial)1.03
Insulation MaterialNylon with Insulation Grip
Maximum Conductor Size (Imperial)10 AWG
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Conductor Size (Metric)3.31 mm²
