3M Products & Supplies

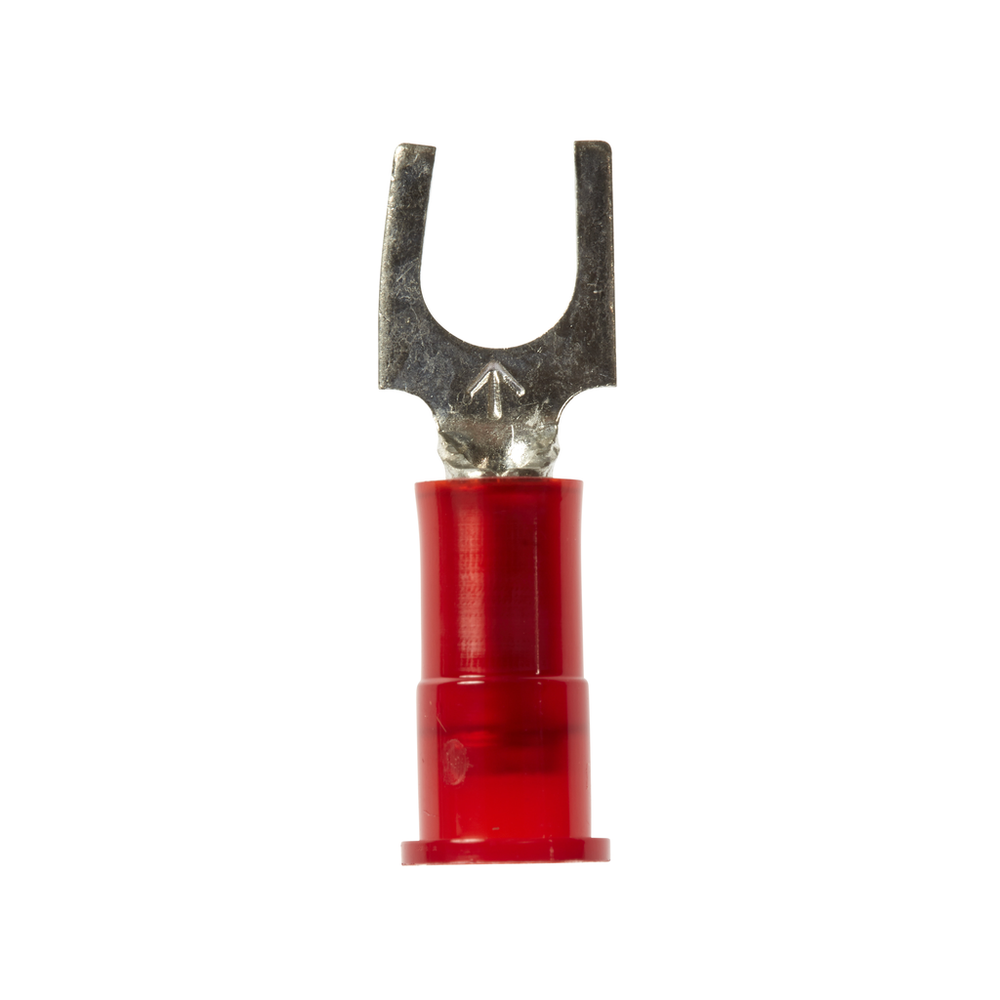

3M™ Scotchlok™ Block Fork, Nylon Insulated w/Insulation Grip MNG18-10FBK, Stud Size 10, 1000/Case - 7100163953

Sold As: 1000-Pack
SKU: 7100163953
MPN: 7100163953
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007012177
3M ID: 80610038350
5 Digit UPC: 1217
$466.71 ($0.47 / Count)
Hurry up! Current stock:

Product Description

Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Packaging1000 per bulk box
Maximum Conductor Size (Metric).0823 mm²
Overall Length (Imperial)0.84
Units per Case1000.0
Maximum Insulation Outer Diameter (Imperial)0.145
Terminal StyleBlock
Overall Width (Imperial)0.3
UL File NumberE23438
Barrel Inside Diameter0.070 Inch
Terminal TypeFork
Minimum Conductor Size (Metric)0.326 mm²
Overall Length (Imperial) UOMin
Stud Diameter (Metric)4.826
Maximum Conductor Size (Imperial)18 AWG
Maximum Operating Temperature (Fahrenheit)221.0
Stud Diameter (Metric) UOMmm
Stud Size#10
Maximum Operating Temperature (Fahrenheit) UOMDegree
Barrel Length (Imperial)0.25 Inch
Clearance (C)0.25 Inch
Maximum Operating Temperature (Celsius)105.0
Barrel StyleButted
Overall Width (Imperial) UOMin
Minimum Conductor Size (Imperial)22 AWG
Stud Diameter (Imperial)0.19
Stud Diameter (Imperial) UOMin
Maximum Operating Temperature (Celsius) UOMDegree
Fork TypeBlock
Maximum Insulation Outer Diameter (Imperial) UOMin
Insulation MaterialNylon with Insulation Grip
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Dimension E0.69 Inch
