3M Products & Supplies

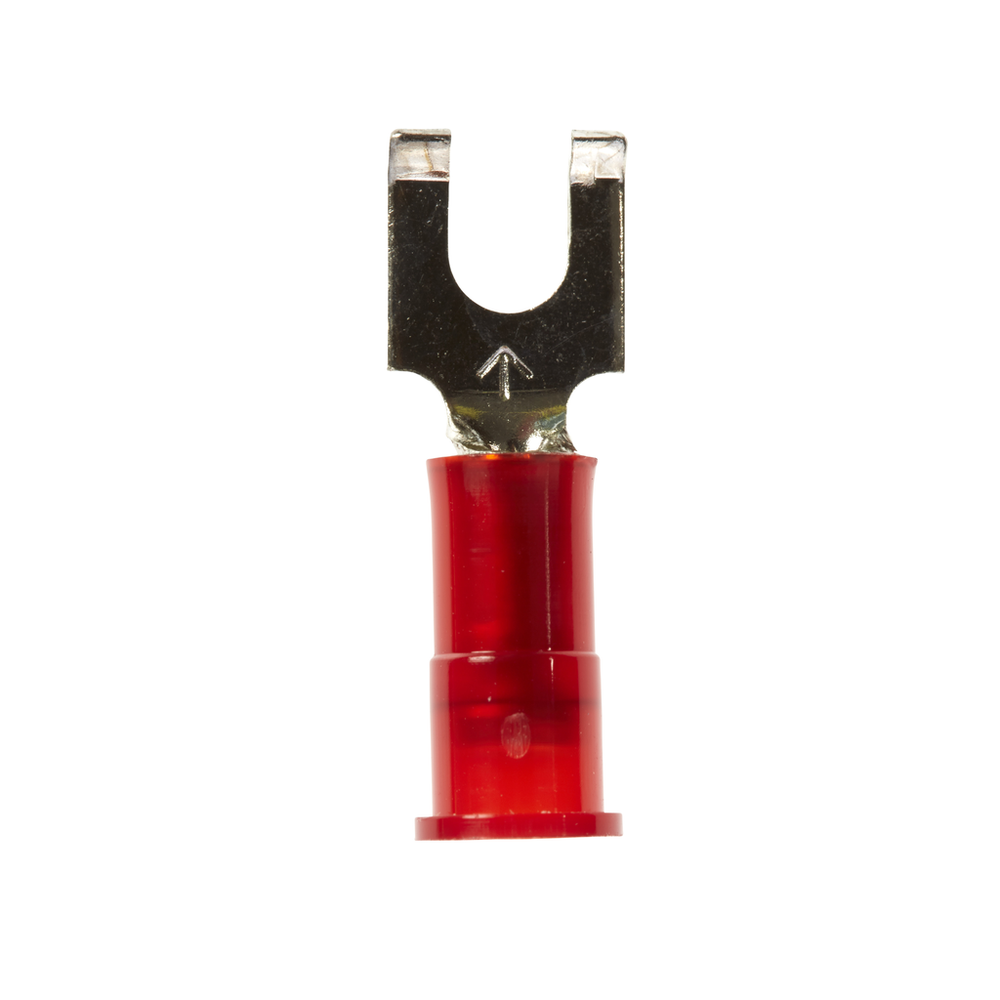

3M™ Scotchlok™ Block Fork, Nylon Insulated w/Insulation Grip MNG18-6FBK, Stud Size 6, 1000/Case - 7100163951

Sold As: 1000-Pack
SKU: 7100163951
MPN: 7100163951
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007012153
3M ID: 80610038335
5 Digit UPC: 1215
$466.71 ($0.47 / Count)
Hurry up! Current stock:

Product Description

Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Barrel Inside Diameter0.070 Inch
Overall Width (Imperial) UOMin
Terminal StyleBlock
Units per Case1000.0
Packaging1000 per bulk box
Stud Diameter (Imperial)0.138
Stud Diameter (Metric) UOMmm
Clearance (C)0.25 Inch
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Overall Length (Imperial)0.84
Dimension E0.69 Inch
Stud Size#6
Barrel Length (Imperial)0.25 Inch
UL File NumberE23438
Overall Length (Imperial) UOMin
Minimum Conductor Size (Metric)0.326 mm²
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Conductor Size (Imperial)18 AWG
Maximum Operating Temperature (Fahrenheit) UOMDegree
Minimum Conductor Size (Imperial)22 AWG
Maximum Insulation Outer Diameter (Imperial) UOMin
Maximum Conductor Size (Metric).0823 mm²
Maximum Operating Temperature (Fahrenheit)221.0
Stud Diameter (Metric)3.505
Maximum Operating Temperature (Celsius)105.0
Insulation MaterialNylon with Insulation Grip
Barrel StyleButted
Fork TypeBlock
Stud Diameter (Imperial) UOMin
Maximum Insulation Outer Diameter (Imperial)0.145
Overall Width (Imperial)0.3
Terminal TypeFork
