3M Products & Supplies

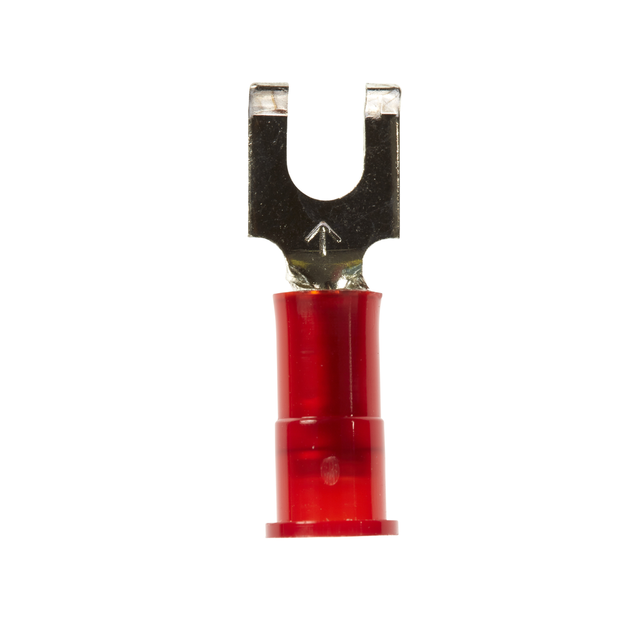

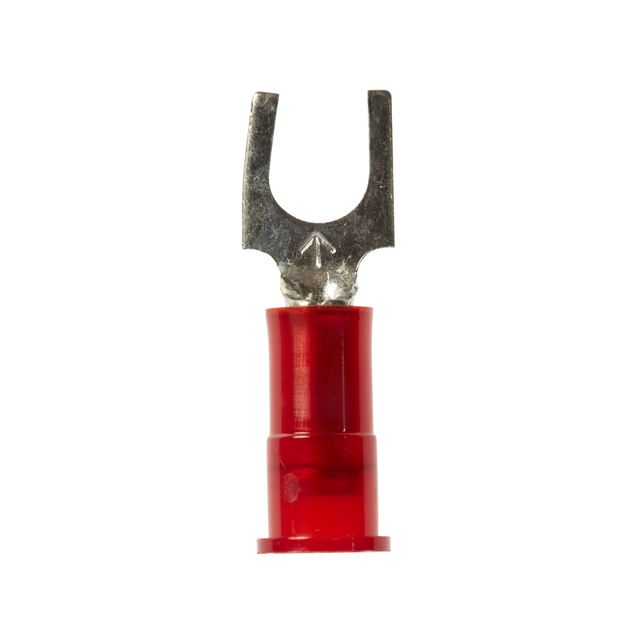

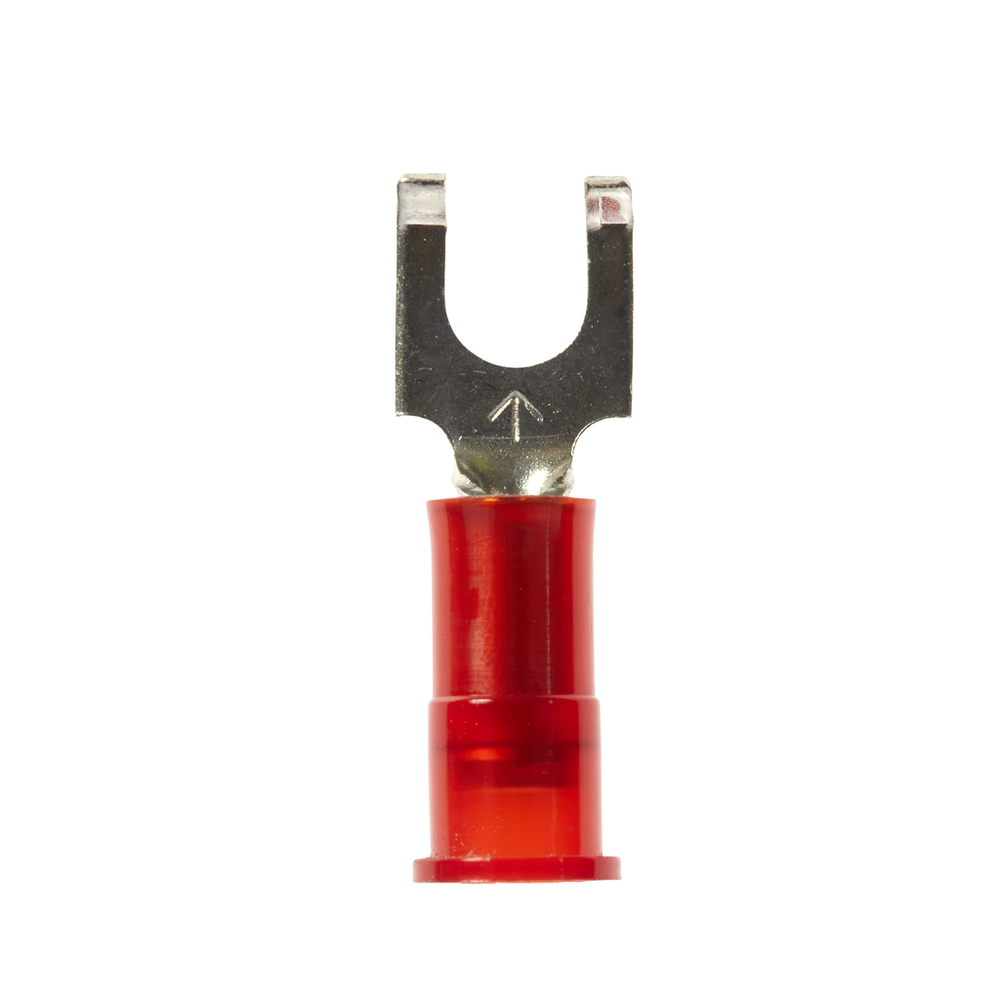

3M™ Scotchlok™ Block Fork, Nylon Insulated w/Insulation Grip MNG18-8FBK, Stud Size 8, 1000/Case - 7100163952

Sold As: 1000-Pack
SKU: 7100163952
MPN: 7100163952
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007012160
3M ID: 80610038343
5 Digit UPC: 1216
$466.71 ($0.47 / Count)
Hurry up! Current stock:

Product Description

Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Stud Diameter (Imperial)0.164
Overall Width (Imperial) UOMin
Maximum Operating Temperature (Celsius)105.0
Packaging1000 per bulk box
Stud Diameter (Metric) UOMmm
Maximum Conductor Size (Metric).0823 mm²
Insulation MaterialNylon with Insulation Grip
Stud Diameter (Imperial) UOMin
Barrel Inside Diameter0.070 Inch
Clearance (C)0.25 Inch
Minimum Conductor Size (Imperial)22 AWG
Barrel Length (Imperial)0.25 Inch
Stud Size#8
Maximum Insulation Outer Diameter (Imperial) UOMin
Units per Case1000.0
UL File NumberE23438
Maximum Conductor Size (Imperial)18 AWG
Maximum Insulation Outer Diameter (Imperial)0.145
Maximum Operating Temperature (Fahrenheit) UOMDegree
Barrel StyleButted
Stud Diameter (Metric)4.166
Fork TypeBlock
Terminal StyleBlock
Overall Length (Imperial)0.84
Overall Length (Imperial) UOMin
Minimum Conductor Size (Metric)0.326 mm²
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Fahrenheit)221.0
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Terminal TypeFork
Overall Width (Imperial)0.3
Dimension E0.69 Inch
