3M Products & Supplies

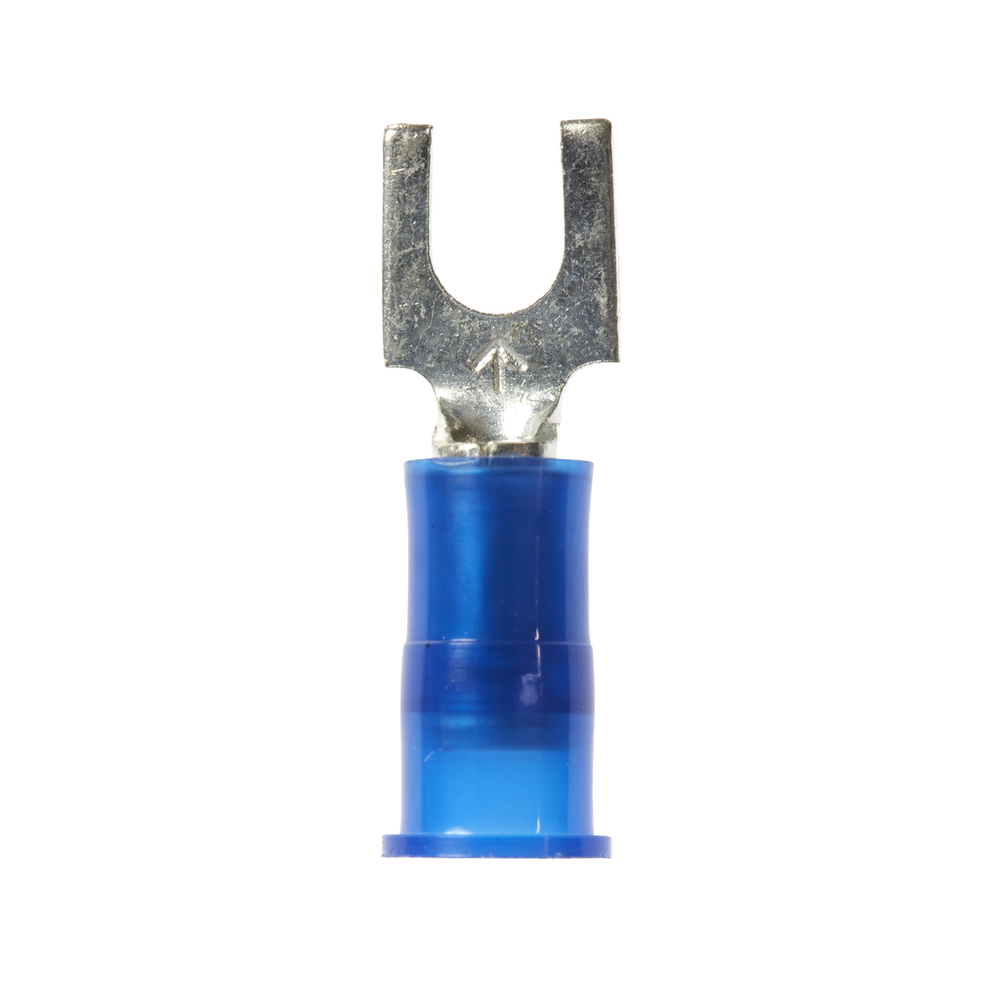

3M™ Scotchlok™ Block Fork, Nylon Insulated w/Insulation Grip MNG14-8FBK, Stud Size 8, 1/Case - 7000057714

Sold As: 1000-Pack
SKU: 7000057714
MPN: 7000057714
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007015826
3M ID: 80610043889
5 Digit UPC: 1582
$579.79 ($0.58 / Count)
Hurry up! Current stock:

Product Description

Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Packaging1000 per bulk box
Terminal TypeFork
Stud Diameter (Metric)4.166
Insulation MaterialNylon with Insulation Grip
Maximum Conductor Size (Imperial)14 AWG
Overall Width (Imperial)0.3
Stud Diameter (Imperial) UOMin
Minimum Conductor Size (Imperial)16 AWG
Maximum Insulation Outer Diameter (Imperial)0.17
Minimum Conductor Size (Metric)1.31 mm²
Stud Diameter (Metric) UOMmm
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Terminal StyleBlock
Maximum Insulation Outer Diameter (Imperial) UOMin
UL File NumberE23438
Maximum Operating Temperature (Fahrenheit) UOMDegree
Barrel Inside Diameter0.090 Inch
Maximum Conductor Size (Metric)2.08 mm²
Stud Size#8
Clearance (C)0.25 Inch
Units per Case1000.0
Overall Width (Imperial) UOMin
Overall Length (Imperial) UOMin
Overall Length (Imperial)0.86
Dimension E0.71 Inch
Fork TypeBlock
Stud Diameter (Imperial)0.164
Barrel StyleButted
Barrel Length (Imperial)0.25 Inch
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Fahrenheit)221.0
Maximum Operating Temperature (Celsius)105.0
