3M Products & Supplies

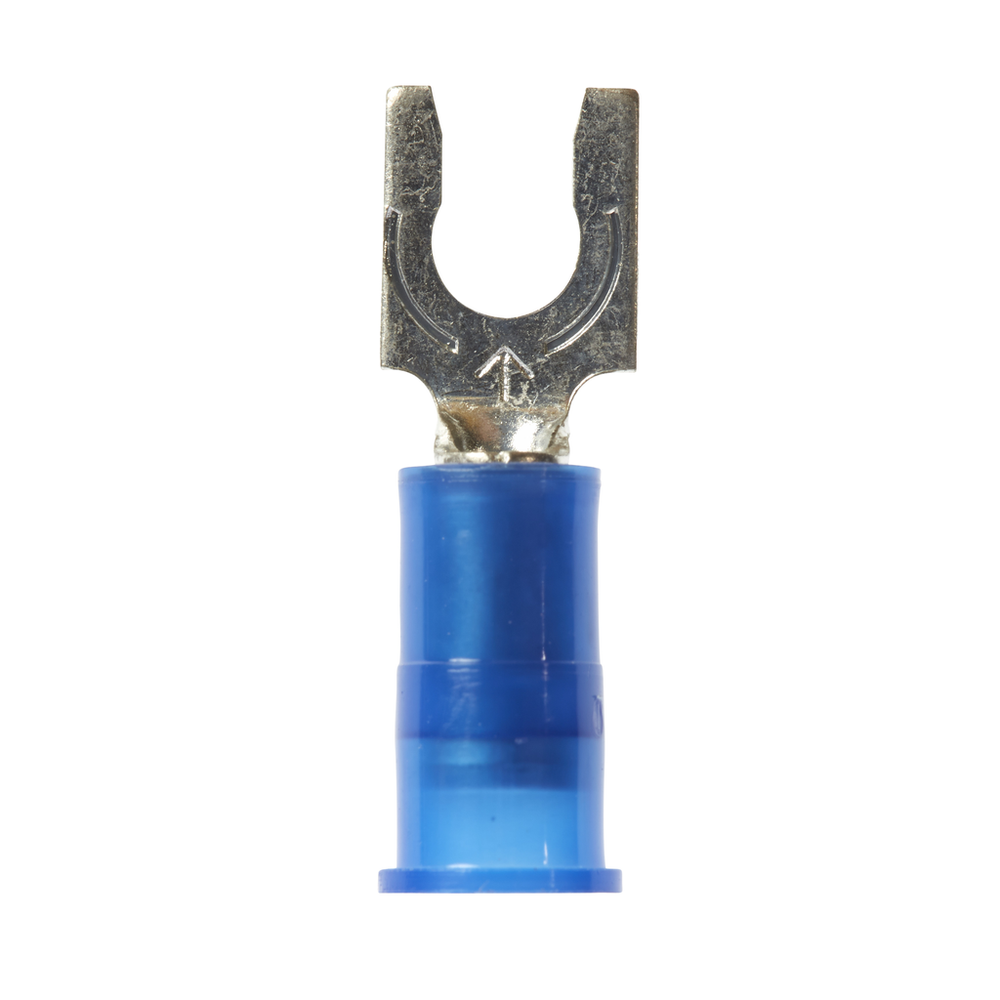

3M™ Scotchlok™ Locking Fork, Nylon Insulated w/Insulation Grip MNG14-8FLK, Stud Size 8, 1000/Case - 7100164068

Sold As: 1000-Pack
SKU: 7100164068
MPN: 7100164068
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007018681
3M ID: 80610047971
5 Digit UPC: 1868
$466.71 ($0.47 / Count)
Hurry up! Current stock:

Product Description

3M™ Locking Fork Terminal has a spring-like tongue to securely lock around the stud. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Spring-like tongue firmly fits around the stud
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Overall Width (Imperial) UOMin
Stud Diameter (Metric) UOMmm
Barrel StyleButted
Maximum Conductor Size (Imperial)14 AWG
Overall Width (Imperial)0.3
Packaging1000 per bulk box
Maximum Insulation Outer Diameter (Imperial) UOMin
Maximum Lock Width0.34 Inch
Barrel Inside Diameter0.09 Inch
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Celsius)105.0
Overall Length (Imperial)0.89
Maximum Operating Temperature (Fahrenheit) UOMDegree
Stud Diameter (Metric)4.166
Minimum Conductor Size (Metric)1.31 mm²
Barrel Length (Imperial)0.25 Inch
Clearance (C)0.25 Inch
Maximum Operating Temperature (Fahrenheit)221.0
Stud Diameter (Imperial)0.164
Stud Size#8
Insulation MaterialNylon with Insulation Grip
UL File NumberE23438
Units per Case1000.0
Terminal StyleLocking
Stud Diameter (Imperial) UOMin
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Overall Length (Imperial) UOMin
Maximum Insulation Outer Diameter (Imperial)0.17
Dimension E0.71 Inch
Fork TypeLocking
Minimum Conductor Size (Imperial)16 AWG
Maximum Conductor Size (Metric)2.08 mm²
