3M Products & Supplies

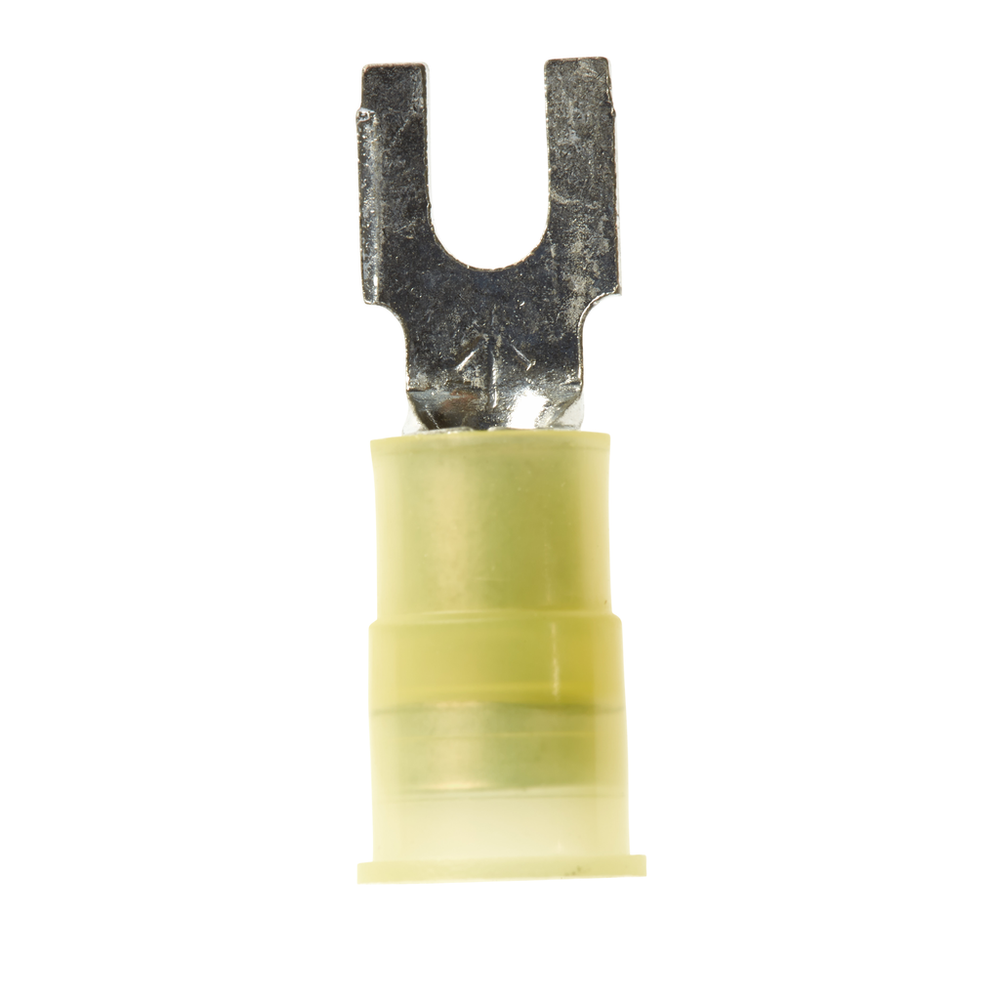

3M™ Scotchlok™ Nylon Insulated w/Insulation Grip Block Fork Terminal MNG10-6FBK, Stud Size 6, 500/Case - 7100164114

Sold As: 500-Pack
SKU: 7100164114
MPN: 7100164114
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007020172
3M ID: 80610050066
5 Digit UPC: 2017
$337.12 ($0.67 / Count)
Hurry up! Current stock:

Product Description

Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Maximum Insulation Outer Diameter (Imperial) UOMin
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Overall Length (Imperial)1.03
Stud Diameter (Imperial) UOMin
MaterialETP Copper
Maximum Insulation Outer Diameter (Imperial)0.25
Maximum Operating Temperature (Fahrenheit) UOMDegree
Minimum Conductor Size (Imperial)12 AWG
Maximum Operating Temperature (Fahrenheit)221.0
Maximum Operating Temperature (Celsius)105.0
Units per Case500.0
Fork TypeBlock
Maximum Conductor Size (Metric)5.26 mm²
Terminal StyleBlock
Barrel StyleButted
Overall Length (Imperial) UOMin
Maximum Conductor Size (Imperial)10 AWG
Stud Diameter (Metric)3.505
Minimum Conductor Size (Metric)3.31 mm²
Packaging500 per bulk box
Stud Size#6
Dimension E0.84 Inch
Stud Diameter (Imperial)0.138
Insulation MaterialNylon with Insulation Grip
Stud Diameter (Metric) UOMmm
Maximum Operating Temperature (Celsius) UOMDegree
InsulatedYes
Clearance (C)0.29 Inch
Terminal TypeFork
Barrel Inside Diameter0.135 Inch
