3M Products & Supplies

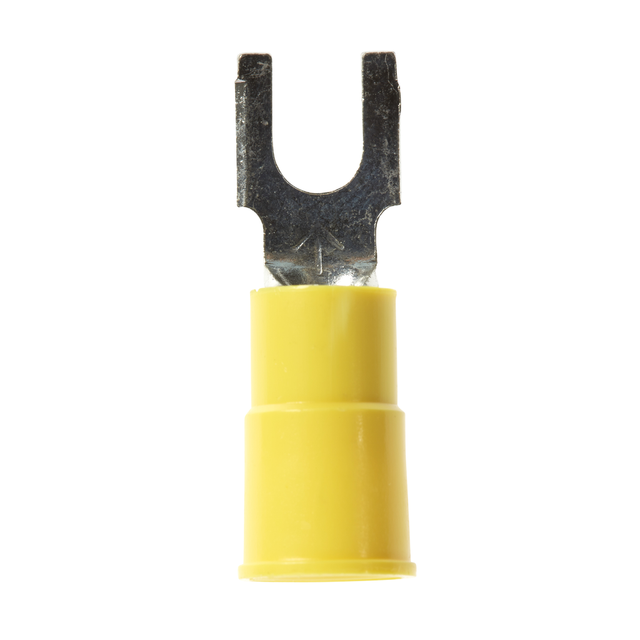

3M™ Scotchlok™ Block Fork, Vinyl Insulated Brazed Seam MV10-6FBK, Stud Size 6, suitable for use in a terminal block, 500/Case - 7100164113

Sold As: 500-Pack
SKU: 7100164113
MPN: 7100164113
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007020141
3M ID: 80610050033
5 Digit UPC: 2014
$273.45 ($0.55 / Count)
Hurry up! Current stock:

Product Description

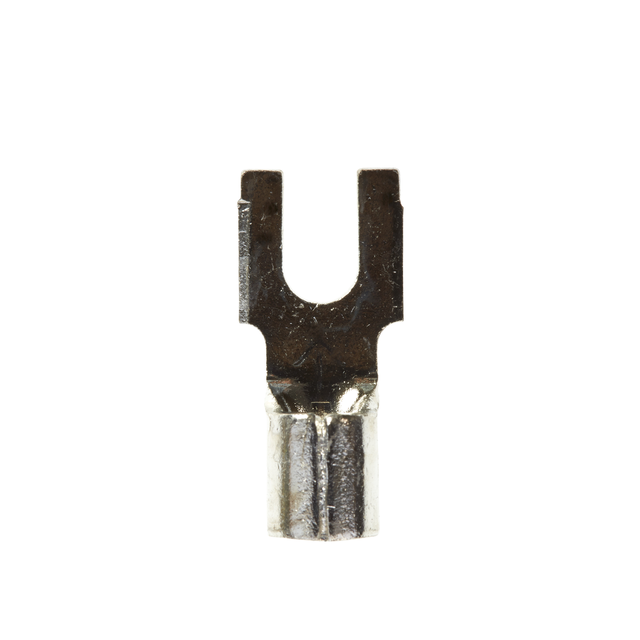

3M™ Scotchlok™ Color-Coded Block Fork is a lug connection terminal that ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Suitable for use in a terminal block
  • Vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Maximum Operating Temperature (Fahrenheit)221.0
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Conductor Size (Metric)3.31 mm²
Overall Length (Imperial) UOMin
Maximum Conductor Size (Metric)5.26 mm²
Terminal StyleBlock
Insulation MaterialVinyl
Packaging500 per bulk box
Dimension E0.84 Inch
Maximum Conductor Size (Imperial)10 AWG
Stud Diameter (Metric)3.505
Overall Width (Imperial)0.32
Maximum Operating Temperature (Celsius)105.0
Barrel StyleBrazed
Minimum Conductor Size (Imperial)12 AWG
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
UL File NumberE23438
Stud Diameter (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit) UOMDegree
Stud Diameter (Imperial)0.138
Barrel Length (Imperial)0.25 Inch
Overall Width (Imperial) UOMin
Maximum Insulation Outer Diameter (Imperial)0.25
Stud Diameter (Imperial) UOMin
Overall Length (Imperial)1.03
Barrel Inside Diameter0.135 Inch
Units per Case500.0
Clearance (C)0.29 Inch
Maximum Insulation Outer Diameter (Imperial) UOMin
Fork TypeBlock
Stud Size#6
