3M Products & Supplies

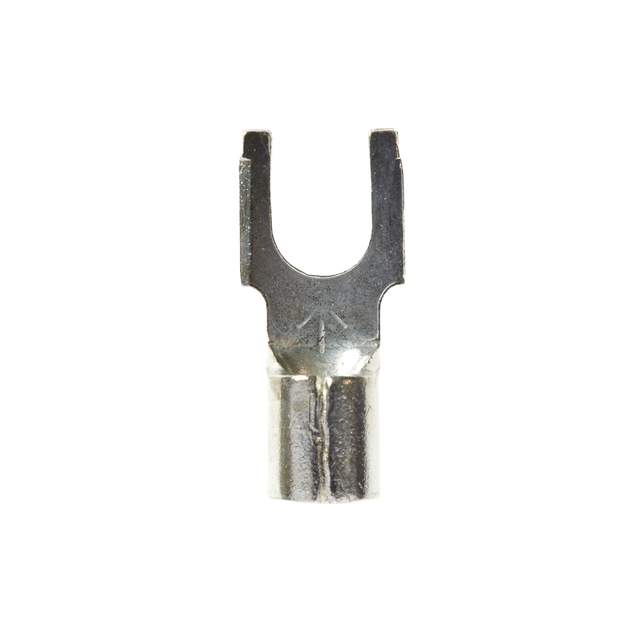

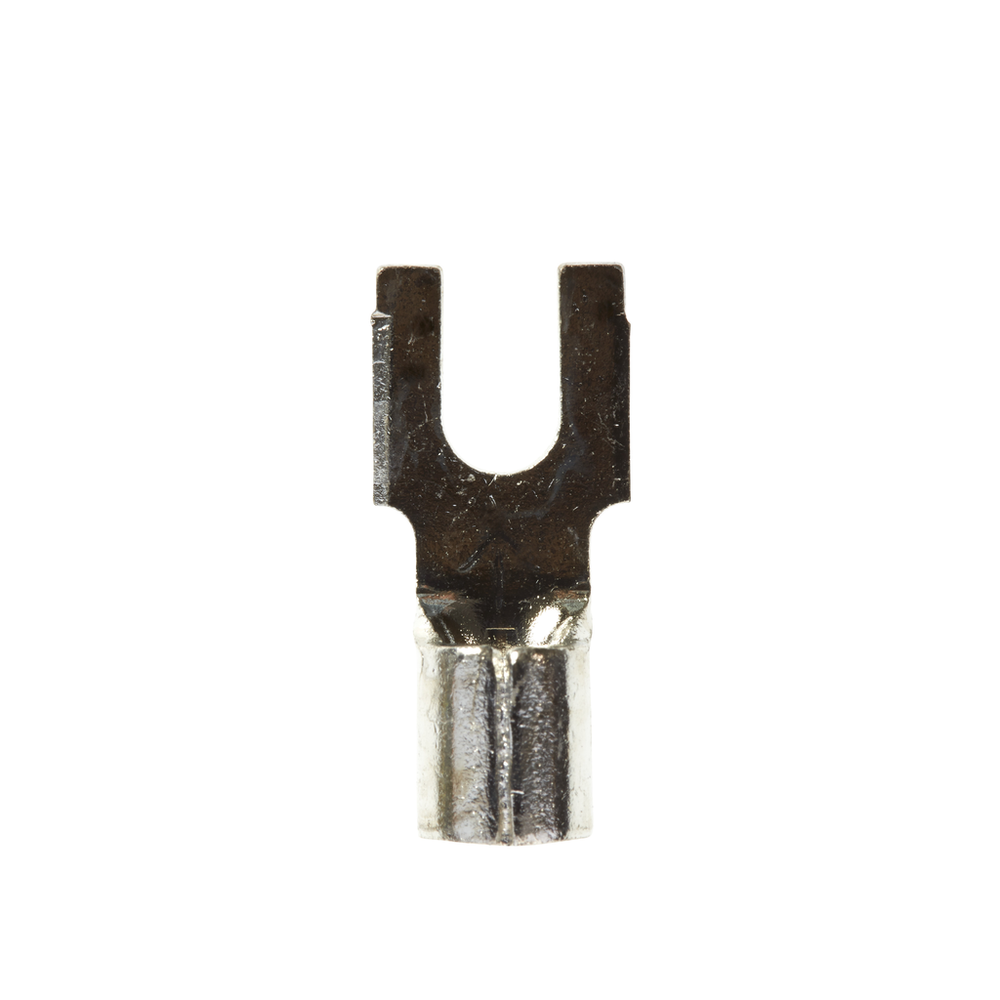

3M™ Scotchlok™ Block Fork, Non-Insulated Brazed Seam M10-6FBK, Stud Size 6, suitable for use in a terminal block, 500/Case - 7100164110

Sold As: 500-Pack
SKU: 7100164110
MPN: 7100164110
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007020080
3M ID: 80610049977
5 Digit UPC: 2008
$153.56 ($0.31 / Count)
Hurry up! Current stock:

Product Description

Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Packaging500 per bulk box
Overall Length (Imperial) UOMin
Stud Diameter (Imperial) UOMin
Clearance (C)0.29 Inch
Fork TypeBlock
Barrel Length (Imperial)0.25 Inch
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Conductor Size (Imperial)10 AWG
Minimum Conductor Size (Metric)3.31 mm²
Terminal StyleBlock
Dimension E0.54 Inch
Stud Diameter (Metric) UOMmm
Overall Width (Imperial)0.32
Stud Size#6
Barrel StyleBrazed
Stud Diameter (Imperial)0.138
Stud Diameter (Metric)3.505
UL File NumberE23438
Overall Width (Imperial) UOMin
Units per Case500.0
Insulation MaterialNon-insulated
Barrel Inside Diameter0.135 Inch
Minimum Conductor Size (Imperial)12 AWG
Maximum Conductor Size (Metric)5.26 mm²
Overall Length (Imperial)0.73
Terminal TypeFork
