3M Products & Supplies

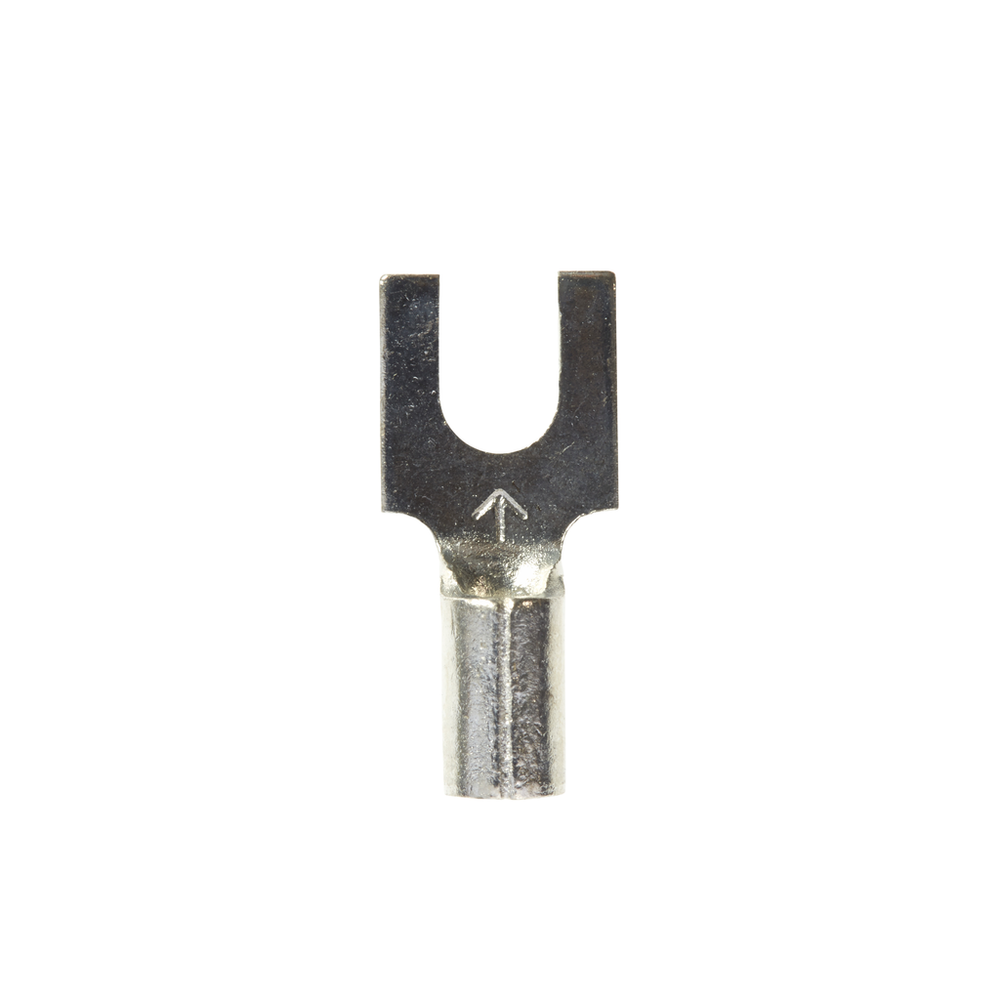

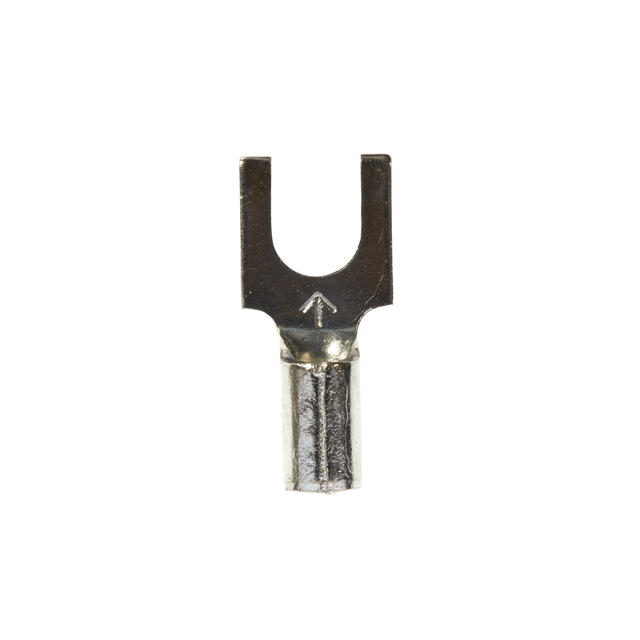

3M™ Scotchlok™ Block Fork, Non-Insulated Brazed Seam M14-6FBK, Stud Size 6, suitable for use in a terminal block, 1000/Case - 7100164025

Sold As: 1000-Pack
SKU: 7100164025
MPN: 7100164025
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007015697
3M ID: 80610043756
5 Digit UPC: 1569
$245.69 ($0.25 / Count)
Hurry up! Current stock:

Product Description

Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Barrel Inside Diameter0.090 Inch
Fork TypeBlock
Packaging1000 per bulk box
Terminal StyleBlock
Terminal TypeFork
Barrel Length (Imperial)0.25 Inch
Maximum Conductor Size (Imperial)14 AWG
Stud Diameter (Imperial) UOMin
Barrel StyleBrazed
Minimum Conductor Size (Imperial)16 AWG
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Overall Width (Imperial) UOMin
Stud Size#6
Overall Length (Imperial) UOMin
Insulation MaterialNon-insulated
Maximum Conductor Size (Metric)2.08 mm²
Minimum Conductor Size (Metric)1.31 mm²
Stud Diameter (Metric)3.505
Stud Diameter (Imperial)0.138
Dimension E0.5 Inch
Overall Width (Imperial)0.3
Overall Length (Imperial)0.65
UL File NumberE23438
Clearance (C)0.25 Inch
Units per Case1000.0
Stud Diameter (Metric) UOMmm
