3M Products & Supplies

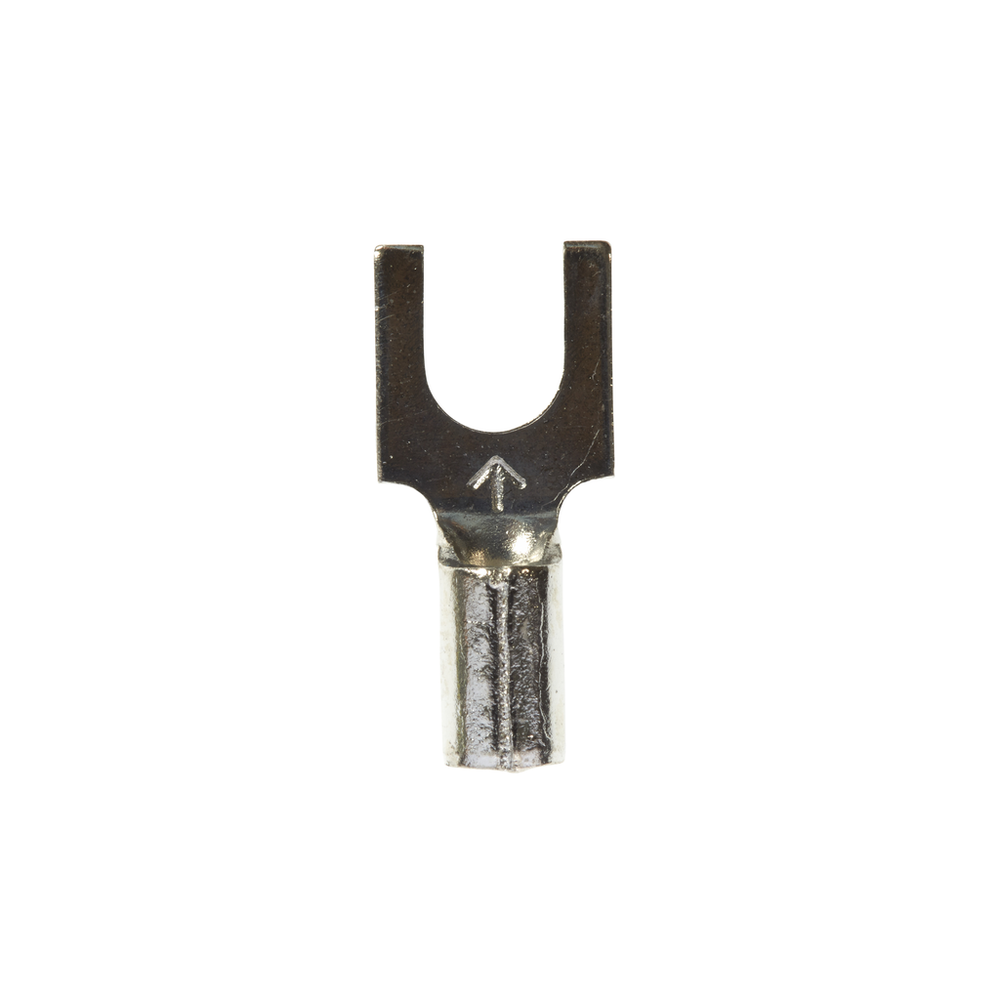

3M™ Scotchlok™ Block Fork, Non-Insulated Brazed Seam M14-8FBK, Stud Size 8, suitable for use in a terminal block, 1000/Case - 7100164026

Sold As: 1000-Pack
SKU: 7100164026
MPN: 7100164026
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007015703
3M ID: 80610043764
5 Digit UPC: 1570
$245.69 ($0.25 / Count)
Hurry up! Current stock:

Product Description

Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Packaging1000 per bulk box
Stud Diameter (Metric) UOMmm
UL File NumberE23438
Dimension E0.5 Inch
Terminal StyleBlock
Minimum Conductor Size (Imperial)16 AWG
Fork TypeBlock
Insulation MaterialNon-insulated
Maximum Conductor Size (Imperial)14 AWG
Stud Diameter (Imperial)0.164
Maximum Conductor Size (Metric)2.08 mm²
Minimum Conductor Size (Metric)1.31 mm²
Barrel Inside Diameter0.090 Inch
Overall Length (Imperial) UOMin
Barrel StyleBrazed
Units per Case1000.0
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Terminal TypeFork
Overall Length (Imperial)0.65
Barrel Length (Imperial)0.25 Inch
Overall Width (Imperial)0.3
Stud Diameter (Imperial) UOMin
Stud Size#8
Overall Width (Imperial) UOMin
Clearance (C)0.25 Inch
Stud Diameter (Metric)4.166
