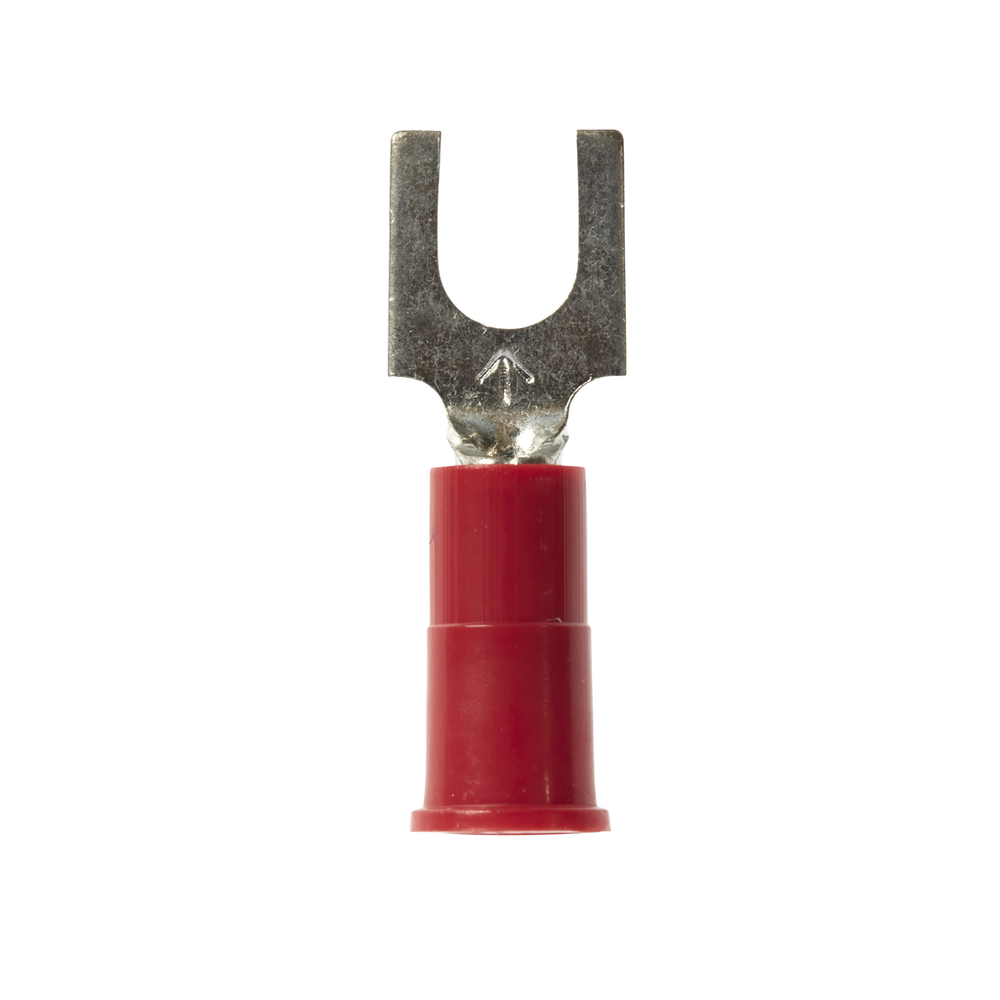

3M™ Scotchlok™ Block Fork, Vinyl Insulated Brazed Seam MV18-8FBK, Stud Size 8, suitable for use in a terminal block, 1000/Case - 7000132241

Sold As: 1000-Pack
SKU: 7000132241
MPN: 7000132241
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007012122
3M ID: 80610038301
5 Digit UPC: 1212
$367.90 ($0.37 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Color-Coded Block Fork is a lug connection terminal that ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Suitable for use in a terminal block
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Units per Case1000.0
Maximum Insulation Outside Diameter0.145 in
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Recommended Voltage Rating600.0
Stud Size#8
Stud Diameter (Metric) UOMmm
Overall Width (Imperial) UOMin
Maximum Insulation Outer Diameter (Imperial)0.145
Terminal StyleBlock
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Insulation Outer Diameter (Imperial) UOMin
Stud Diameter (Imperial) UOMin
Minimum Conductor Size (Metric)0.823 mm²
MaterialPlastic
Minimum Conductor Size (Imperial)18 AWG
Insulation MaterialVinyl
Dimension E0.7 Inch
UL File NumberE23438
Stud Diameter (Imperial)0.164
Stud Diameter (Metric)4.166
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Recommended Voltage Rating UOMV
Maximum Insulation Outer Diameter (Metric)3.7
Fork TypeBlock
Packaging1000 per bulk box
Product ColorRed
Barrel Inside Diameter0.070 Inch
Overall Length (Imperial)0.85
Barrel Length (Imperial)0.25 Inch
Clearance (C)0.25 Inch
Overall Width (Imperial)0.3
Maximum Conductor Size (Metric).0823 mm²
Maximum Operating Temperature (Celsius)105.0
Maximum Operating Temperature (Fahrenheit)221.0
Maximum Conductor Size (Imperial)18 AWG
Maximum Insulation Outer Diameter (Metric) UOMmm
Barrel StyleBrazed
Overall Length (Imperial) UOMin
