3M Products & Supplies

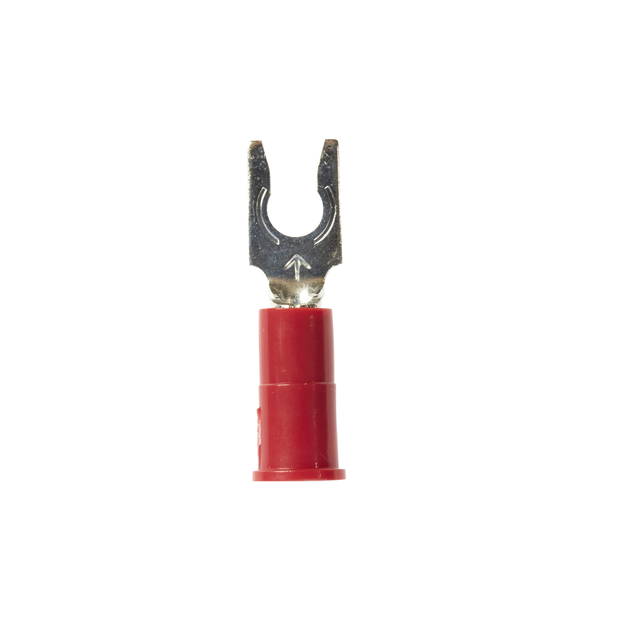

3M™ Scotchlok™ Block Fork, Vinyl Insulated Brazed Seam MV18-6FB/SK, Stud Size 6, 1000/Case - 7000031420

Sold As: 1000-Pack
SKU: 7000031420
MPN: 7000031420
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007012108
3M ID: 80610038285
5 Digit UPC: 1210
$367.90 ($0.37 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Color-Coded Block Fork is a lug connection terminal that ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Suitable for use in a terminal block
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Dimension E0.7 Inch
Overall Length (Imperial)0.85
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Fahrenheit)221.0
Maximum Conductor Size (Imperial)18 AWG
Overall Width (Imperial) UOMin
Stud Size#6
Maximum Conductor Size (Metric).0823 mm²
Stud Diameter (Metric) UOMmm
Units per Case1000.0
Clearance (C)0.25 Inch
Stud Diameter (Imperial) UOMin
Minimum Conductor Size (Imperial)22 AWG
Terminal StyleBlock
Stud Diameter (Metric)3.505
Maximum Operating Temperature (Celsius) UOMDegree
UL File NumberE23438
Fork TypeBlock
Barrel Inside Diameter0.070 Inch
Barrel StyleBrazed
Overall Width (Imperial)0.25
Maximum Insulation Outer Diameter (Imperial) UOMin
Insulation MaterialVinyl
Packaging1000 per bulk box
Maximum Operating Temperature (Celsius)105.0
Overall Length (Imperial) UOMin
Barrel Length (Imperial)0.25 Inch
Minimum Conductor Size (Metric)0.326 mm²
Maximum Insulation Outer Diameter (Imperial)0.145
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Stud Diameter (Imperial)0.138
