3M Products & Supplies

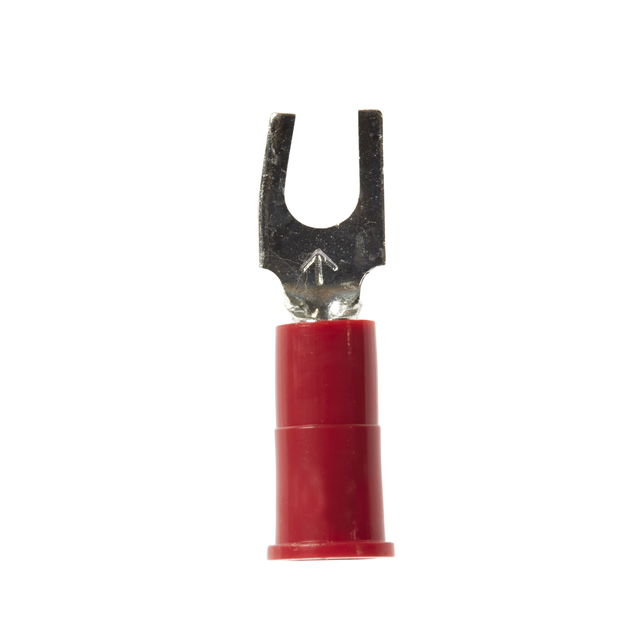

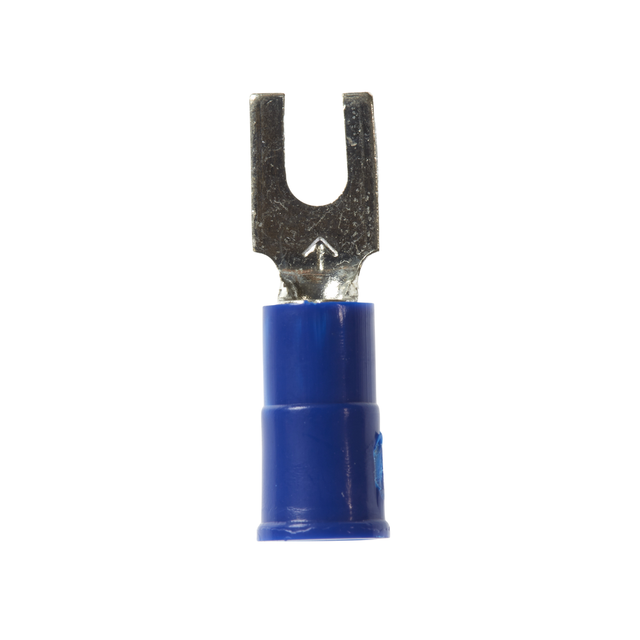

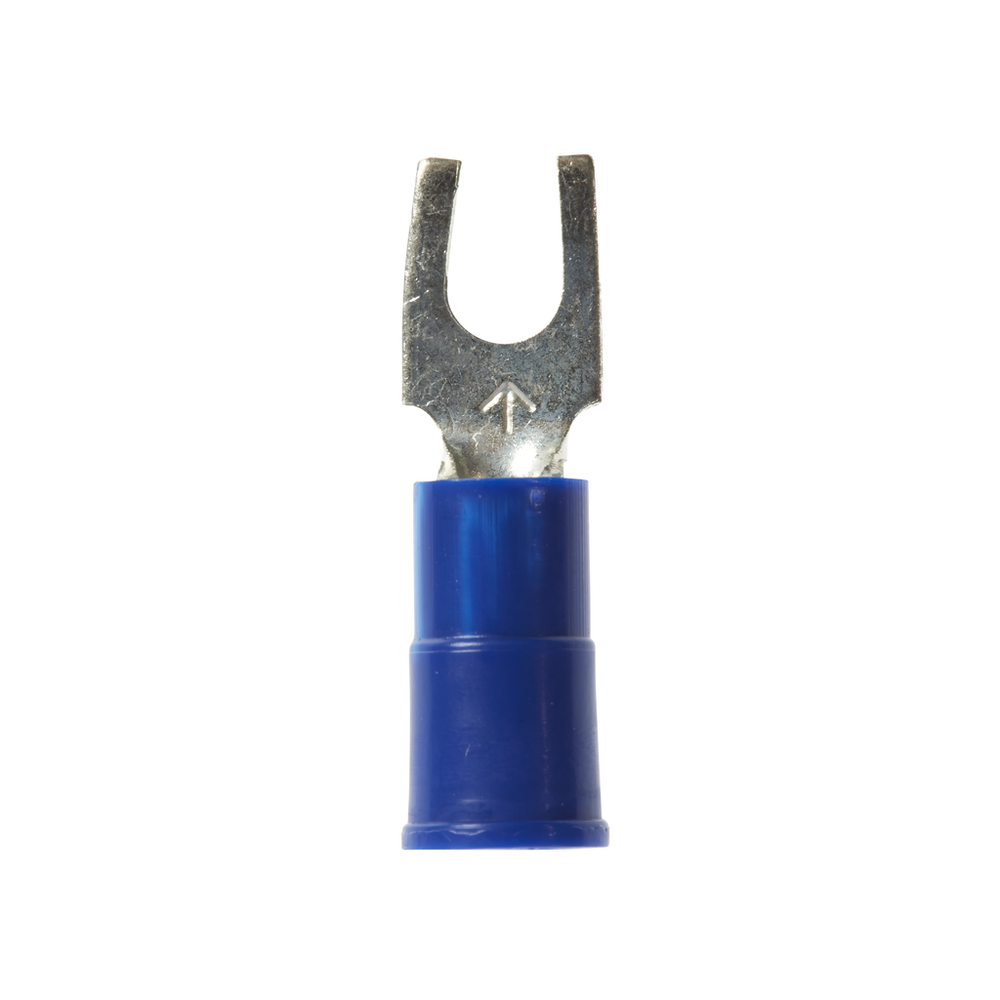

3M™ Scotchlok™ Block Fork, Vinyl Insulated Butted Seam MVU14-6FB/SK, Stud Size 6, 1000/Case - 7100164032

Sold As: 1000-Pack
SKU: 7100164032
MPN: 7100164032
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007015840
3M ID: 80610043905
5 Digit UPC: 1584
$307.12 ($0.31 / Count)
Hurry up! Current stock:

Product Description

Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Terminal TypeFork
Stud Diameter (Metric) UOMmm
Maximum Conductor Size (Metric)2.08 mm²
Packaging1000 per bulk box
Overall Length (Imperial) UOMin
Overall Width (Imperial) UOMin
Fork TypeBlock
Overall Width (Imperial)0.25
Maximum Operating Temperature (Celsius)105.0
Stud Diameter (Imperial)0.138
Barrel StyleButted
Stud Size#6
Barrel Length (Imperial)0.25 Inch
Terminal StyleBlock
Maximum Conductor Size (Imperial)14 AWG
Maximum Operating Temperature (Fahrenheit) UOMDegree
Minimum Conductor Size (Imperial)16 AWG
Maximum Operating Temperature (Fahrenheit)221.0
Minimum Conductor Size (Metric)1.31 mm²
Stud Diameter (Imperial) UOMin
Maximum Operating Temperature (Celsius) UOMDegree
Barrel Inside Diameter0.090 Inch
Maximum Insulation Outer Diameter (Imperial)0.17
UL File NumberE23438
Dimension E0.7 Inch
Stud Diameter (Metric)3.505
Maximum Insulation Outer Diameter (Imperial) UOMin
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Overall Length (Imperial)0.85
Insulation MaterialVinyl
Clearance (C)0.25 Inch
Units per Case1000.0
