3M Products & Supplies

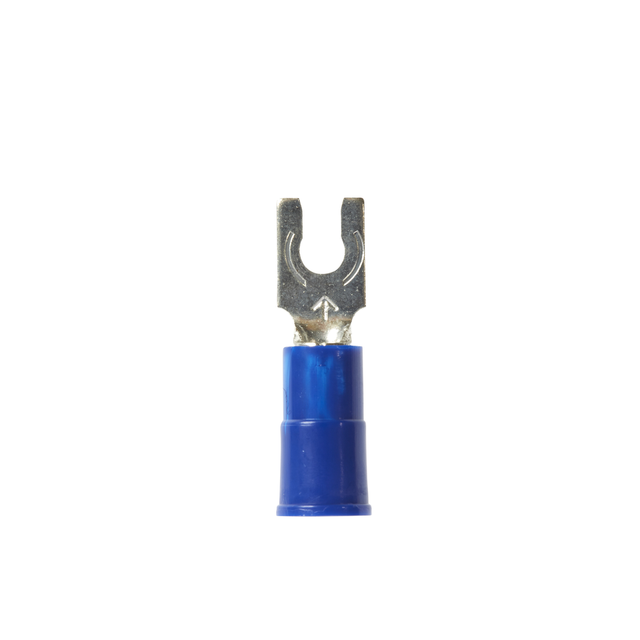

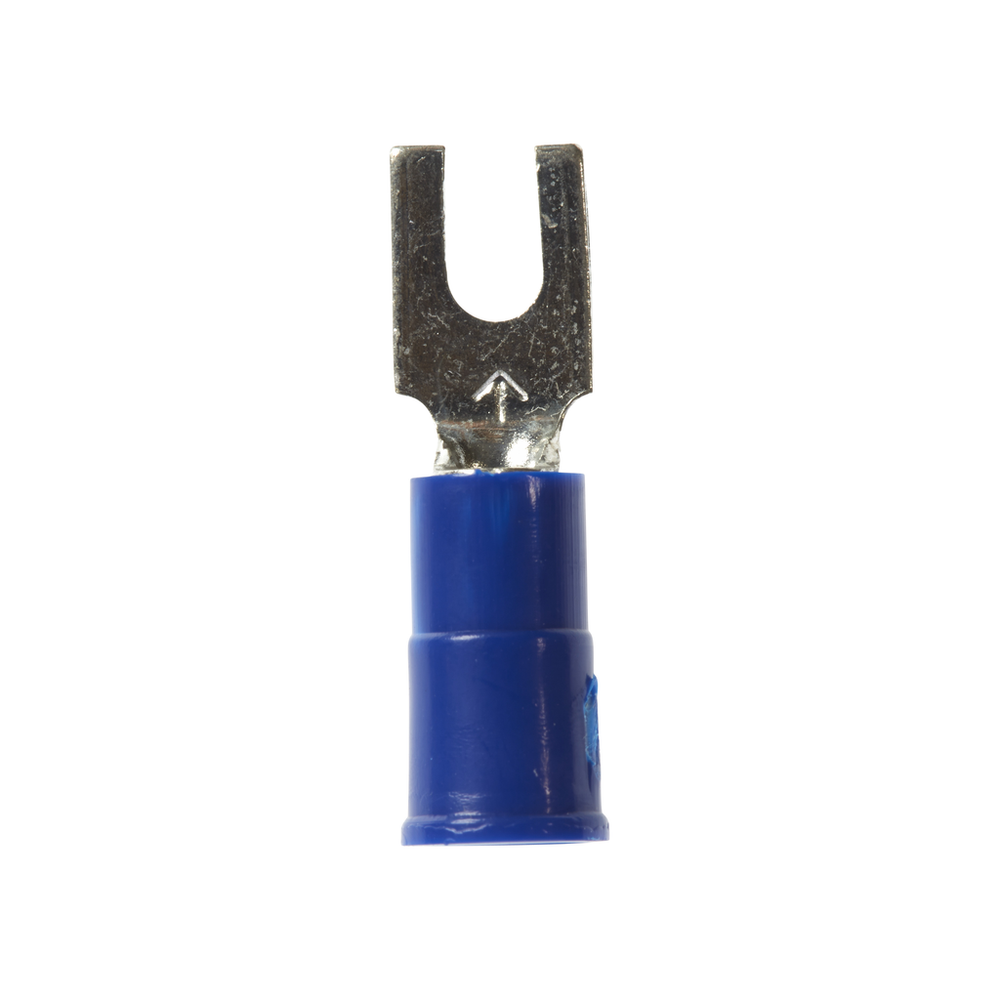

3M™ Scotchlok™ Block Fork, Vinyl Insulated Butted Seam MVU14-4FB/SK, Stud Size 4, 1000/Case - 7100164171

Sold As: 1000-Pack
SKU: 7100164171
MPN: 7100164171
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007022589
3M ID: 80610056204
5 Digit UPC: 2258
$340.91 ($0.34 / Count)
Hurry up! Current stock:

Product Description

Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Stud Size#4
Maximum Conductor Size (Metric)2.08 mm²
Stud Diameter (Metric)2.845
Packaging1000 per bulk box
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Insulation Outer Diameter (Imperial)0.17
UL File NumberE23438
Maximum Operating Temperature (Celsius) UOMDegree
Stud Diameter (Imperial) UOMin
Units per Case1000.0
Barrel StyleButted
Overall Length (Imperial) UOMin
Maximum Operating Temperature (Celsius)105.0
Stud Diameter (Metric) UOMmm
Barrel Inside Diameter0.090 Inch
Overall Length (Imperial)0.85
Dimension E0.7 Inch
Terminal StyleBlock
Insulation MaterialVinyl
Stud Diameter (Imperial)0.112
Minimum Conductor Size (Metric)1.31 mm²
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Overall Width (Imperial)0.25
Fork TypeBlock
Maximum Operating Temperature (Fahrenheit)221.0
Minimum Conductor Size (Imperial)16 AWG
Maximum Insulation Outer Diameter (Imperial) UOMin
Barrel Length (Imperial)0.25 Inch
Maximum Conductor Size (Imperial)14 AWG
Terminal TypeFork
Clearance (C)0.25 Inch
Overall Width (Imperial) UOMin
