3M Products & Supplies

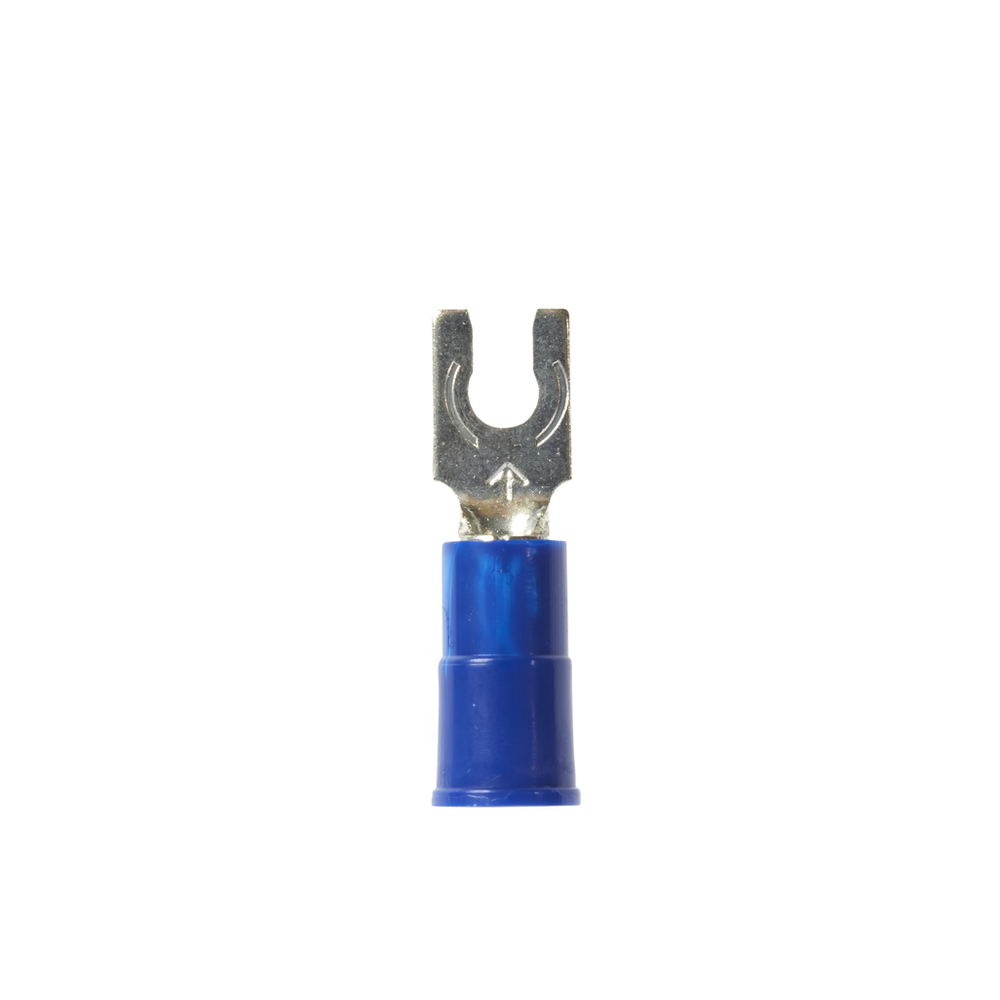

3M™ Scotchlok™ Locking Fork, Vinyl Insulated Butted Seam MVU14-4FLK, Stud Size 4, 1000/Case - 7100164070

Sold As: 1000-Pack
SKU: 7100164070
MPN: 7100164070
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007018711
3M ID: 80610048052
5 Digit UPC: 1871
$346.82 ($0.35 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Color-Coded Locking Fork is a lug connection terminal that has a spring-like tongue to securely lock around the stud. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Spring-like tongue firmly fits around the stud
  • Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • 600V-rated for building wire and 1000V-rated for signs, fixtures or luminaires
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Electrolytic copper construction offers good conductivity
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Terminal StyleLocking
Maximum Lock Width0.27 Inch
Dimension E0.7 Inch
Overall Width (Imperial)0.25
Clearance (C)0.25 Inch
Maximum Conductor Size (Imperial)14 AWG
Operating Temperature Range (Celsius)-40 °C to 105 °C
UL File NumberE23438
Overall Length (Imperial) UOMin
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Stud Diameter (Metric)2.845
Maximum Operating Temperature (Celsius)105.0
Barrel Inside Diameter0.09 Inch
Overall Width (Imperial) UOMin
Packaging1000 per bulk box
Overall Length (Imperial)0.88
Minimum Conductor Size (Imperial)16 AWG
Maximum Conductor Size (Metric)2.08 mm²
Units per Case1000.0
Maximum Operating Temperature (Fahrenheit)221.0
Operating Temperature Range (Fahrenheit)-40 °F to 221 °F
Stud Diameter (Imperial) UOMin
Barrel StyleButted
Maximum Insulation Outer Diameter (Imperial) UOMin
Insulation MaterialVinyl
Maximum Operating Temperature (Fahrenheit) UOMDegree
Barrel Length (Imperial)0.25 Inch
Maximum Insulation Outer Diameter (Imperial)0.17
Fork TypeLocking
Stud Size#4
Terminal TypeFork
Maximum Operating Temperature (Celsius) UOMDegree
Stud Diameter (Imperial)0.112
Stud Diameter (Metric) UOMmm
Minimum Conductor Size (Metric)1.31 mm²
