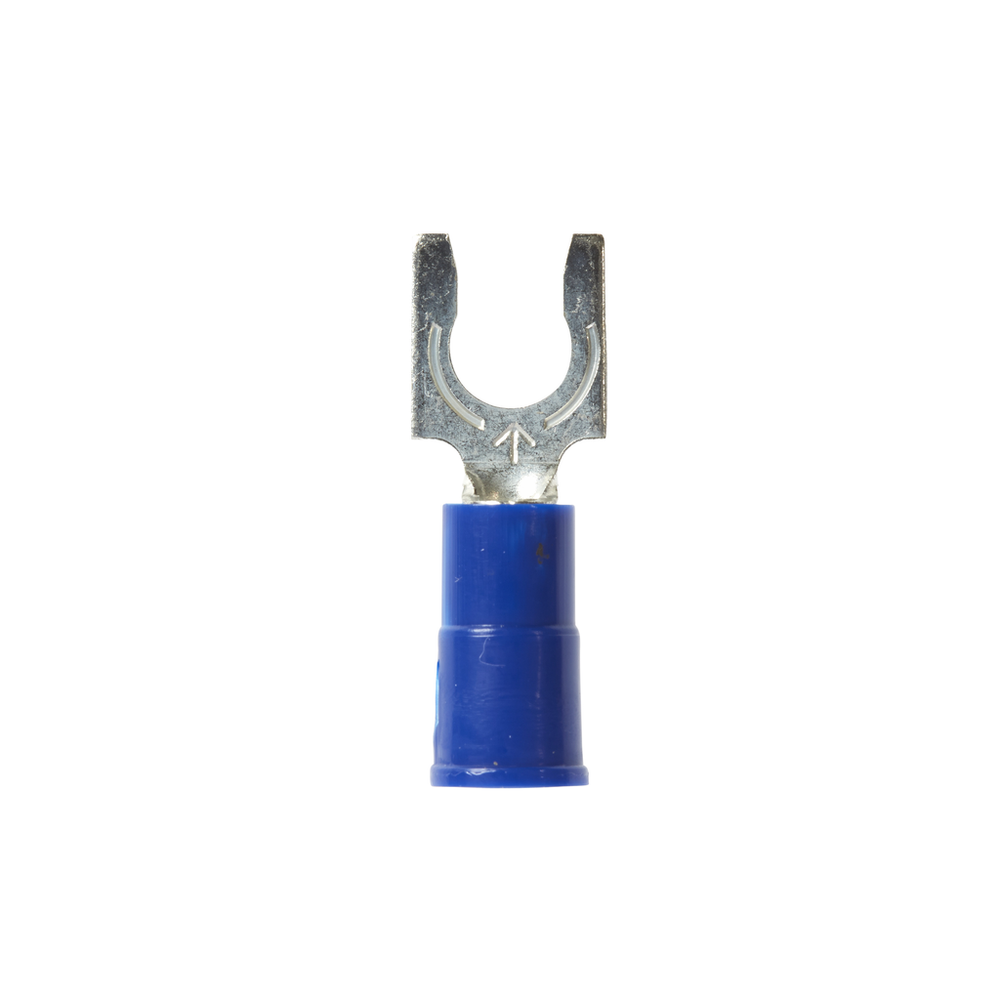

3M™ Scotchlok™ Locking Fork, Vinyl Insulated Butted Seam MVU14-10FLK, Stud Size 10, 1000/Case - 7010349683

Sold As: 1000-Pack
SKU: 7010349683
MPN: 7010349683
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007018742
3M ID: 80610048086
5 Digit UPC: 1874
$307.12 ($0.31 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Color-Coded Locking Fork is a lug connection terminal that has a spring-like tongue to securely lock around the stud. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • 600V-rated for building wire and 1000V-rated for signs, fixtures or luminaires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Spring-like tongue firmly fits around the stud
  • Electrolytic copper construction offers good conductivity
  • Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Stud Size#10
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Packaging1000 per bulk box
Minimum Conductor Size (Imperial)16 AWG
Maximum Operating Temperature (Fahrenheit)221.0
Fork TypeLocking
Maximum Operating Temperature (Celsius)105.0
Stud Diameter (Imperial)0.19
Insulation MaterialVinyl
Minimum Conductor Size (Metric)1.31 mm²
Overall Width (Imperial)0.32
Maximum Insulation Outer Diameter (Imperial) UOMin
Terminal TypeFork
Barrel StyleButted
Stud Diameter (Metric)4.826
Clearance (C)0.25 Inch
Dimension E0.7 Inch
Overall Length (Imperial) UOMin
Terminal StyleLocking
Barrel Inside Diameter0.09 Inch
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Insulation Outer Diameter (Imperial)0.17
UL File NumberE23438
Stud Diameter (Imperial) UOMin
Operating Temperature Range (Fahrenheit)-40 °F to 221 °F
Maximum Lock Width0.35 Inch
Maximum Conductor Size (Imperial)14 AWG
Operating Temperature Range (Celsius)-40 °C to 105 °C
Maximum Conductor Size (Metric)2.08 mm²
Overall Width (Imperial) UOMin
Barrel Length (Imperial)0.25 Inch
Overall Length (Imperial)0.88
Stud Diameter (Metric) UOMmm
Units per Case1000.0
Maximum Operating Temperature (Celsius) UOMDegree
