3M Products & Supplies

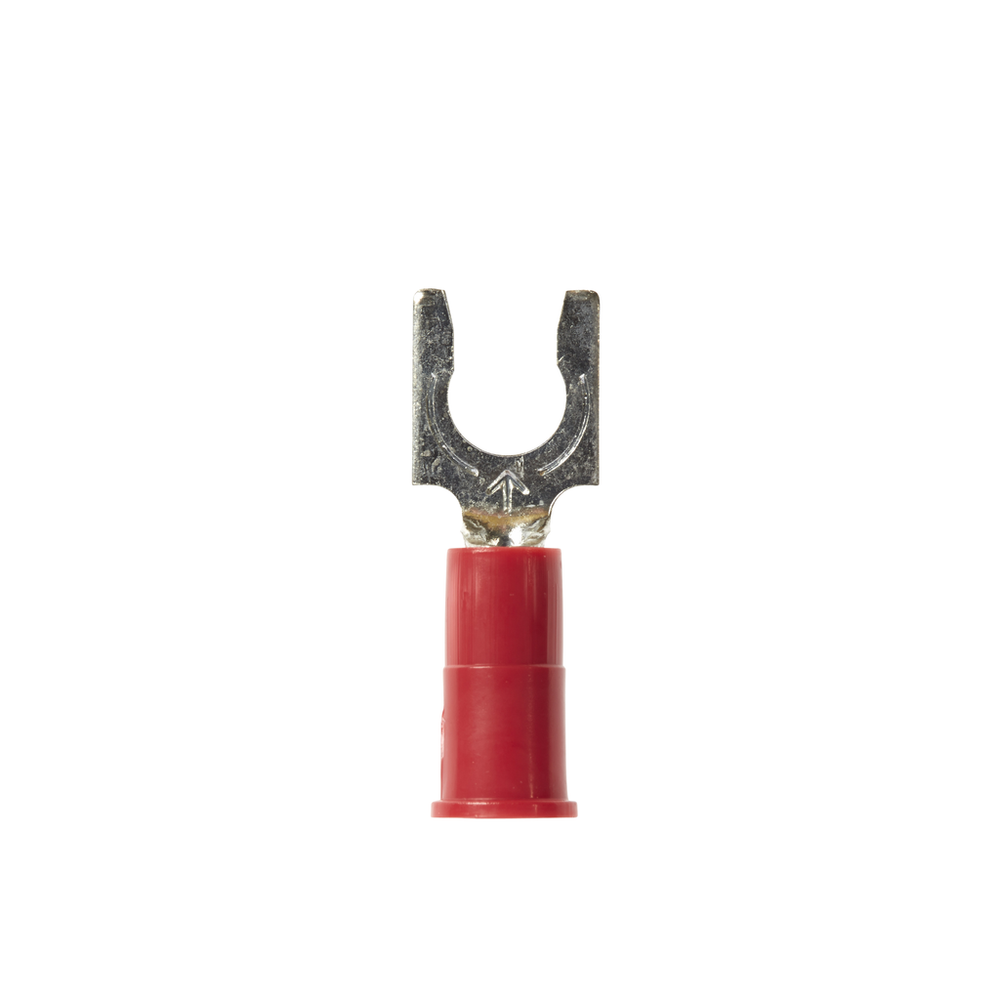

3M™ Scotchlok™ Locking Fork, Vinyl Insulated Butted Seam MVU18-10FLK, Stud Size 10, 1000/Case - 7100163983

Sold As: 1000-Pack
SKU: 7100163983
MPN: 7100163983
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007013624
3M ID: 80610040059
5 Digit UPC: 1362
$307.12 ($0.31 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Color-Coded Locking Fork is a lug connection terminal that has a spring-like tongue to securely lock around the stud. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V-rated for signs, fixtures or luminaires
  • Electrolytic copper construction offers good conductivity
  • Spring-like tongue firmly fits around the stud
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Maximum Conductor Size (Imperial)18 AWG
Fork TypeLocking
Stud Diameter (Imperial) UOMin
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Conductor Size (Metric).0823 mm²
Maximum Insulation Outer Diameter (Imperial) UOMin
Maximum Insulation Outer Diameter (Imperial)0.145
Clearance (C)0.25 Inch
Overall Length (Imperial) UOMin
Units per Case1000.0
Maximum Operating Temperature (Celsius)105.0
Overall Length (Imperial)0.88
Operating Temperature Range (Fahrenheit)-40 °F to 221 °F
Maximum Operating Temperature (Fahrenheit)221.0
Overall Width (Imperial) UOMin
Dimension E0.7 Inch
Terminal StyleLocking
UL File NumberE23438
Minimum Conductor Size (Imperial)22 AWG
Barrel Inside Diameter0.07 Inch
Minimum Conductor Size (Metric)0.326 mm²
Terminal TypeFork
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Lock Width0.35 Inch
Packaging1000 per bulk box
Barrel StyleButted
Maximum Operating Temperature (Fahrenheit) UOMDegree
Operating Temperature Range (Celsius)-40 °C to 105 °C
Stud Size#10
Stud Diameter (Metric)4.826
Barrel Length (Imperial)0.25 Inch
Overall Width (Imperial)0.32
Stud Diameter (Imperial)0.19
Stud Diameter (Metric) UOMmm
Insulation MaterialVinyl
