3M Products & Supplies

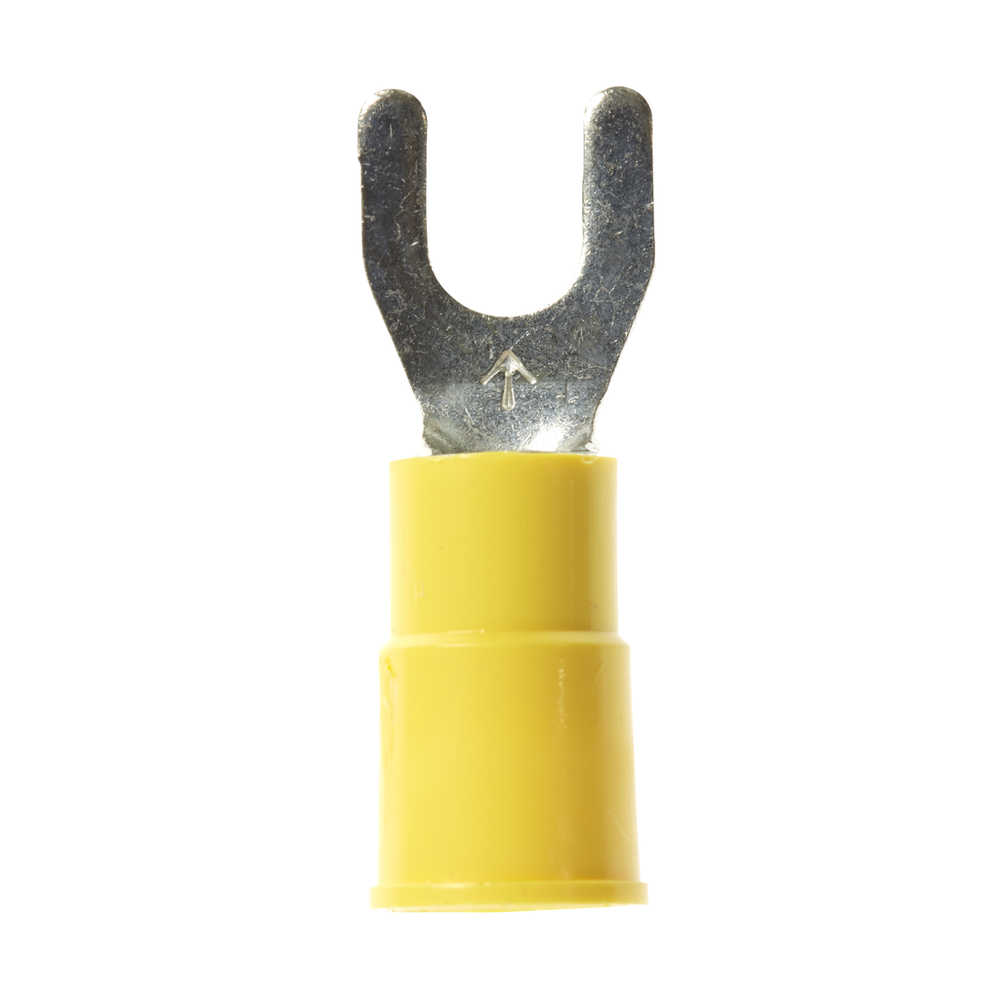

3M™ Scotchlok™ Locking Fork, Vinyl Insulated Butted Seam MVU10-10FLK, Stud Size 10, 500/Case - 7000132270

Sold As: 500-Pack
SKU: 7000132270
MPN: 7000132270
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007021162
3M ID: 80610051213
5 Digit UPC: 2116
$233.36 ($0.47 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Color-Coded Locking Fork is a lug connection terminal that has a spring-like tongue to securely lock around the stud. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • 600V-rated for building wire and 1000V-rated for signs, fixtures or luminaires
  • Electrolytic copper construction offers good conductivity
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Spring-like tongue firmly fits around the stud
  • Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Maximum Recommended Voltage Rating UOMV
Terminal StyleLocking
Barrel StyleButted
Maximum Insulation Outside Diameter0.145 in
Maximum Operating Temperature (Celsius)105.0
Maximum Insulation Outer Diameter (Metric) UOMmm
Maximum Conductor Size (Metric)5.26 mm²
Overall Width (Metric)8.12
Product ColorYellow
Units per Case500.0
Maximum Lock Width0.36 Inch
Overall Length (Imperial)1.03
Barrel Inside Diameter0.135 Inch
Maximum Operating Temperature (Celsius) UOMDegree
Stud Diameter (Metric) UOMmm
Stud Diameter (Metric)4.826
Maximum Insulation Outer Diameter (Imperial)0.25
Minimum Conductor Size (Imperial)12 AWG
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Insulation MaterialVinyl
Overall Length (Metric) UOMmm
Overall Width (Metric) UOMmm
Stud Size#10
Overall Length (Metric)26.16
Maximum Conductor Size (Imperial)10 AWG
Maximum Operating Temperature (Fahrenheit)221.0
Operating Temperature Range (Fahrenheit)-40 °F to 221 °F
Overall Length (Imperial) UOMin
Overall Width (Imperial) UOMin
Stud Diameter (Imperial) UOMin
Packaging500 per bulk box
Terminal TypeFork
Stud Diameter (Imperial)0.19
Maximum Recommended Voltage Rating600.0
UL File NumberE23438
Fork TypeLocking
Dimension E0.83 Inch
Maximum Insulation Outer Diameter (Metric)3.7
Operating Temperature Range (Celsius)-40 °C to 105 °C
Overall Width (Imperial)0.32
Clearance (C)0.28 Inch
Minimum Conductor Size (Metric)3.31 mm²
MaterialPlastic
Maximum Insulation Outer Diameter (Imperial) UOMin
Maximum Operating Temperature (Fahrenheit) UOMDegree
Barrel Length (Imperial)0.25 Inch
