3M Products & Supplies

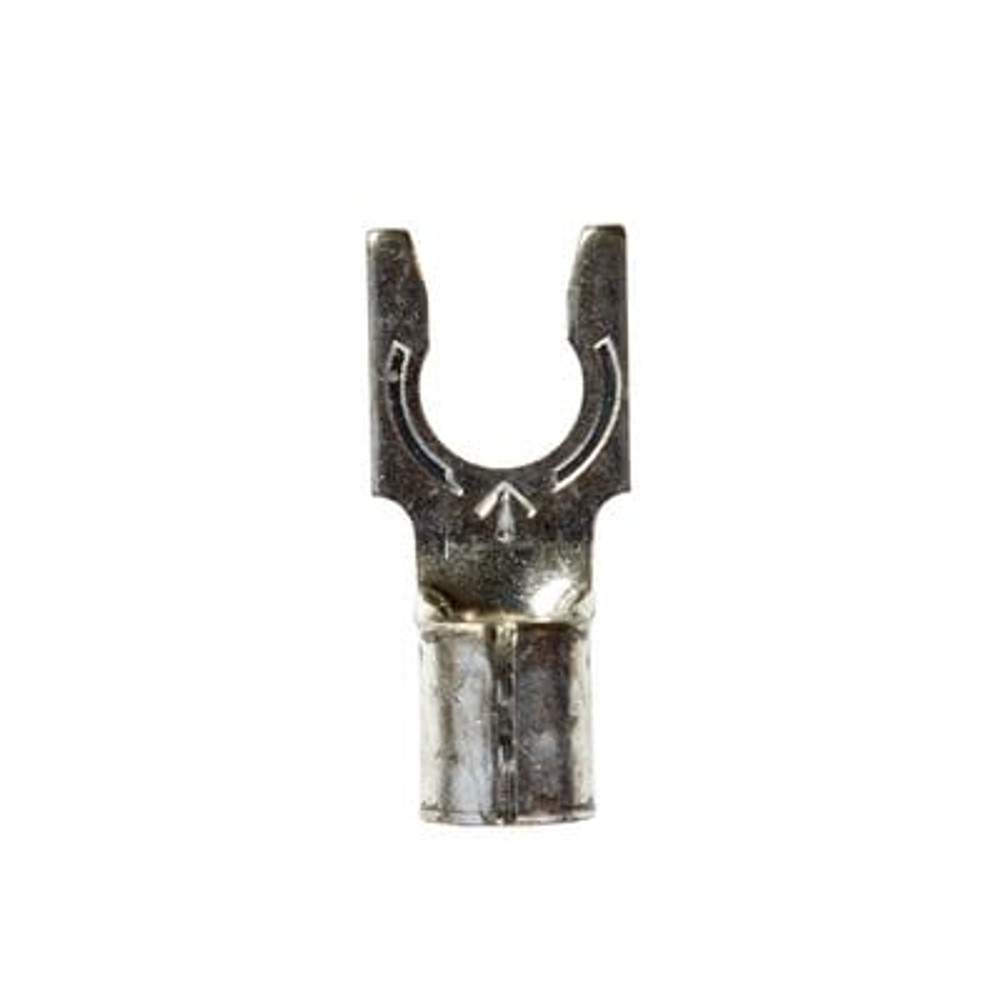

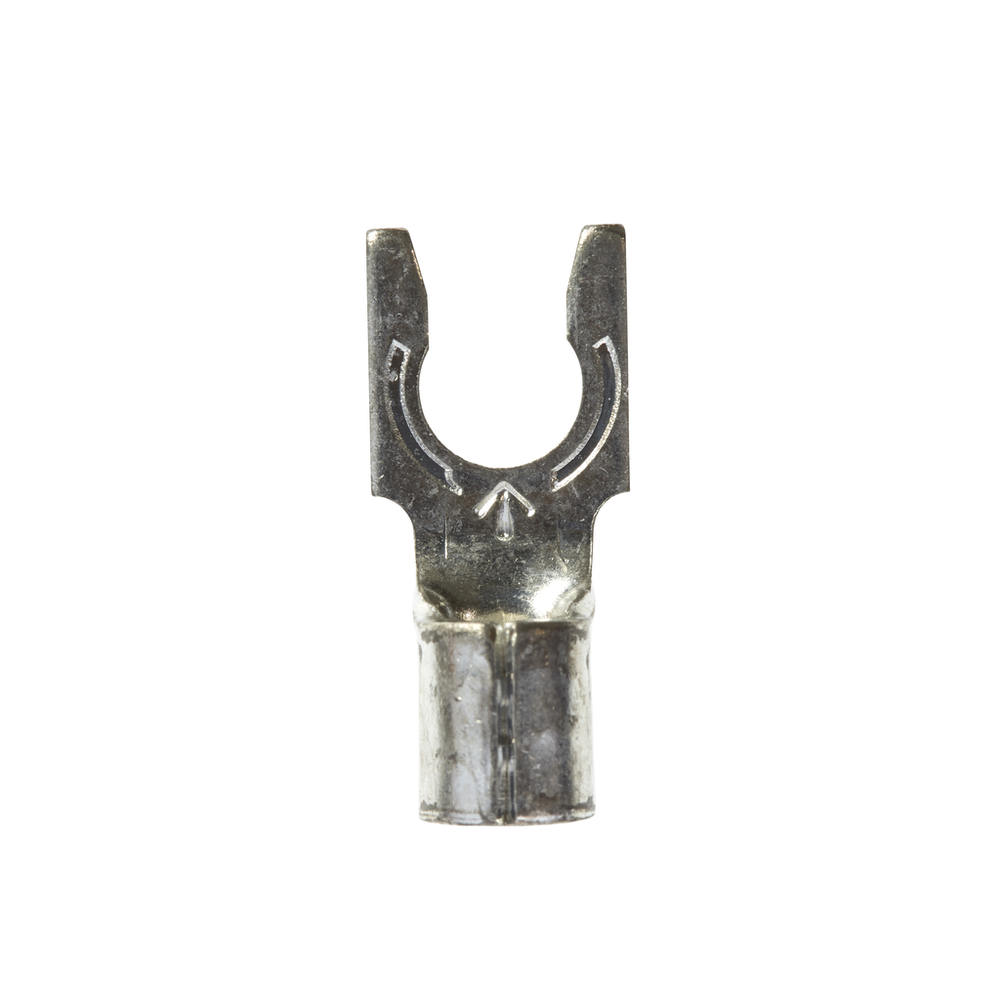

3M™ Scotchlok™ Locking Fork, Non-Insulated Butted Seam MU10-10FLK, Stud Size 10, 500/Case - 7100164140

Sold As: 500-Pack
SKU: 7100164140
MPN: 7100164140
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007021049
3M ID: 80610051056
5 Digit UPC: 2104
$122.85 ($0.25 / Count)
Hurry up! Current stock:

Product Description

Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Overall Length (Imperial) UOMin
UL File NumberE23438
Stud Size#10
Maximum Conductor Size (Imperial)10 AWG
Minimum Conductor Size (Metric)3.31 mm²
Barrel Inside Diameter0.135 Inch
Overall Width (Imperial)0.32
Maximum Conductor Size (Metric)5.26 mm²
Barrel Length (Imperial)0.25 Inch
Units per Case500.0
Dimension E0.53 Inch
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Stud Diameter (Metric) UOMmm
Packaging500 per bulk box
Overall Width (Imperial) UOMin
Stud Diameter (Metric)4.826
Fork TypeLocking
Insulation MaterialNon-insulated
Barrel StyleButted
Maximum Lock Width0.36 Inch
Stud Diameter (Imperial) UOMin
Overall Length (Imperial)0.73
Terminal TypeFork
Stud Diameter (Imperial)0.19
Clearance (C)0.28 Inch
Minimum Conductor Size (Imperial)12 AWG
Terminal StyleLocking
