3M Products & Supplies

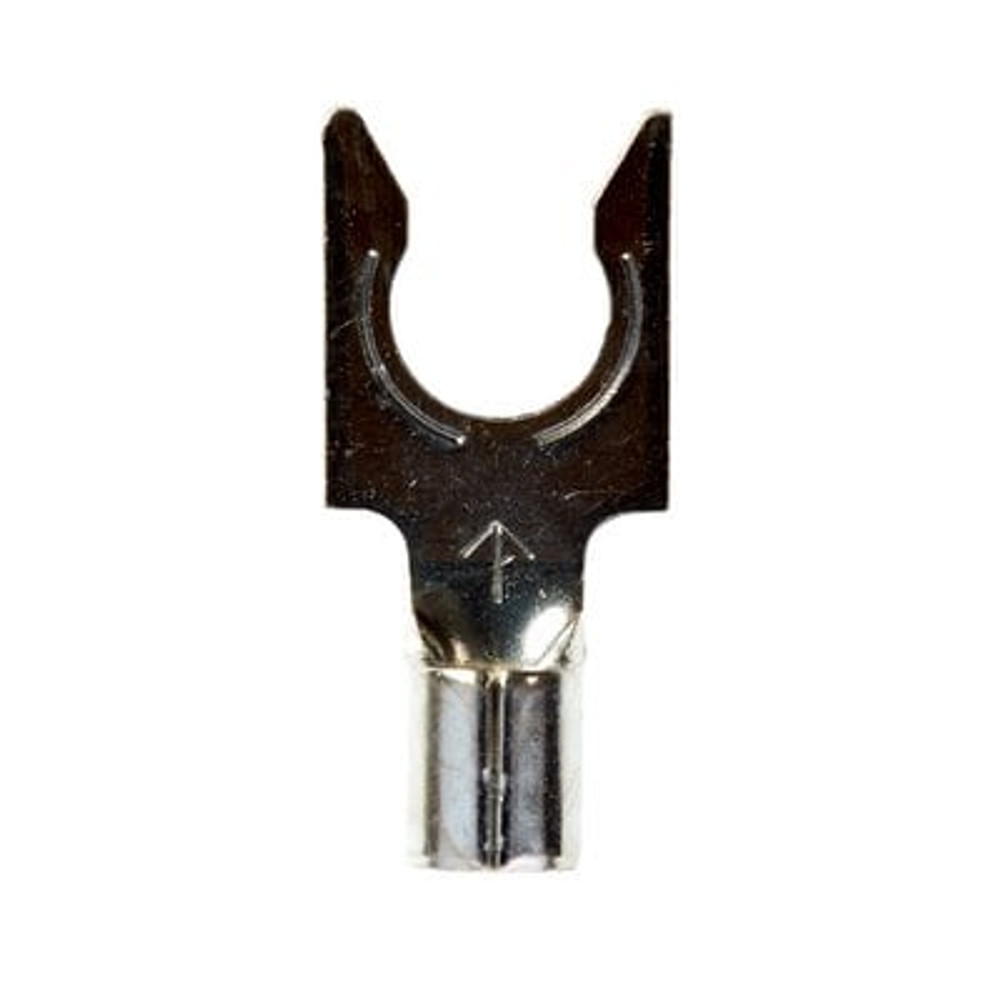

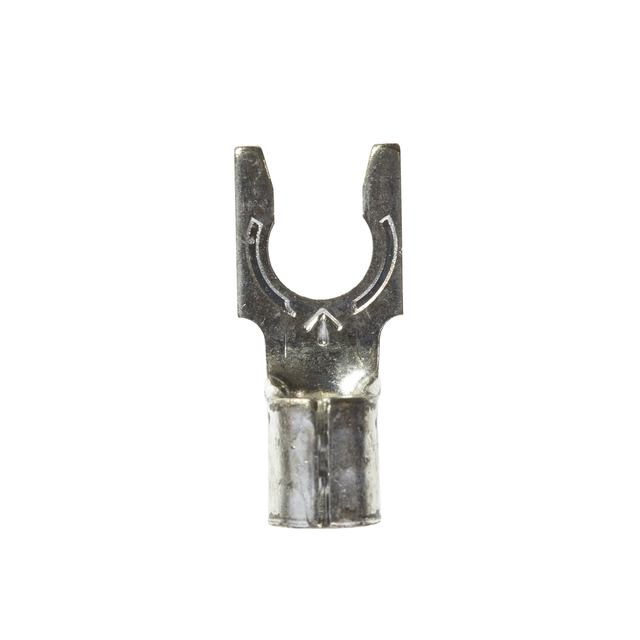

3M™ Scotchlok™ Locking Fork, Non-Insulated Butted Seam MU10-14FLK, Stud Size 1/4, 500/Case - 7100164141

Sold As: 500-Pack
SKU: 7100164141
MPN: 7100164141
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007021056
3M ID: 80610051064
5 Digit UPC: 2105
$214.66 ($0.43 / Count)
Hurry up! Current stock:

Product Description

Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Minimum Conductor Size (Metric)3.31 mm²
Insulation MaterialNon-insulated
Maximum Lock Width0.48 Inch
Stud Diameter (Metric) UOMmm
Packaging500 per bulk box
Barrel Length (Imperial)0.25 Inch
Overall Length (Imperial) UOMin
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Conductor Size (Metric)5.26 mm²
Fork TypeLocking
Clearance (C)0.44 Inch
Maximum Conductor Size (Imperial)10 AWG
Terminal StyleLocking
UL File NumberE23438
Stud Diameter (Imperial)0.25
Dimension E0.69 Inch
Overall Width (Imperial)0.43
Stud Diameter (Imperial) UOMin
Overall Width (Imperial) UOMin
Stud Diameter (Metric)6.35
Barrel Inside Diameter0.135 Inch
Terminal TypeFork
Units per Case500.0
Stud Size1/4 Inch
Barrel StyleButted
Minimum Conductor Size (Imperial)12 AWG
Overall Length (Imperial)0.94
