3M Products & Supplies

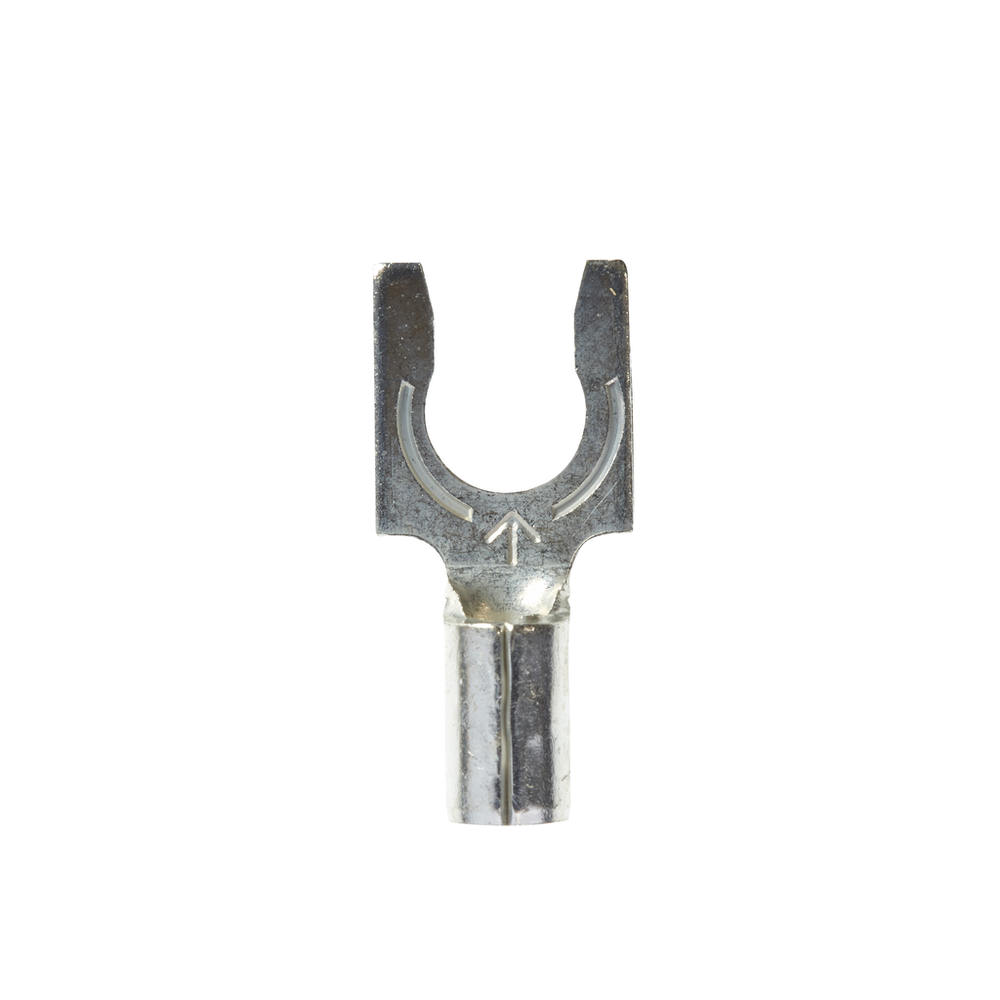

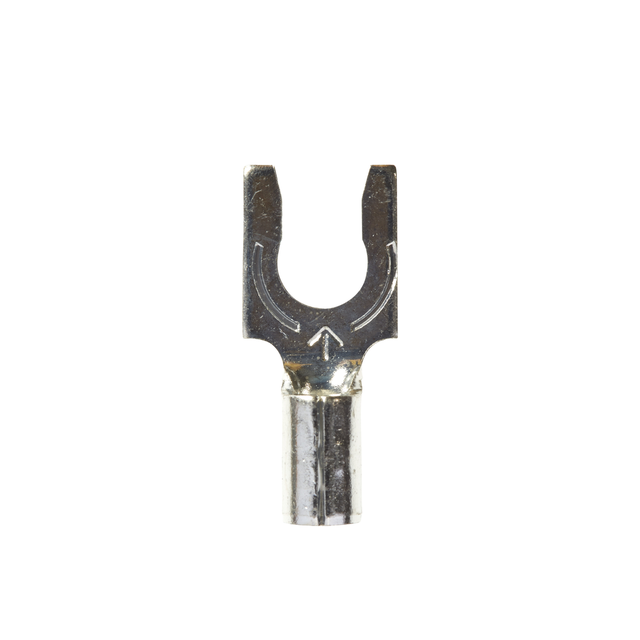

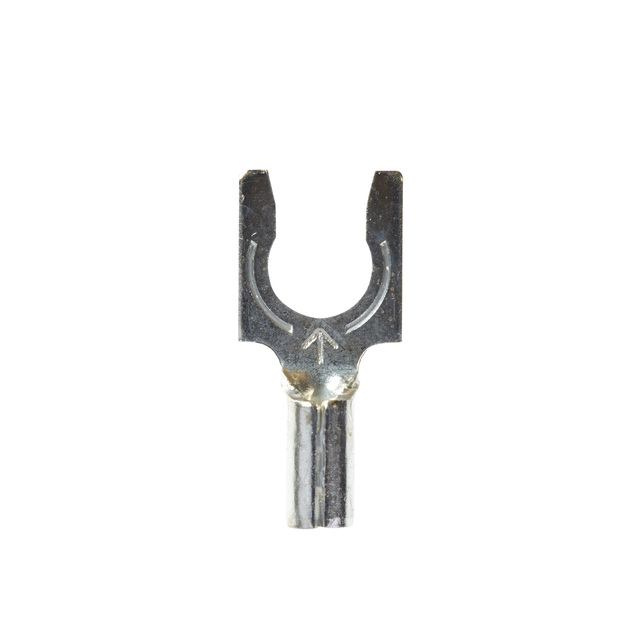

3M™ Scotchlok™ Locking Fork, Non-Insulated Butted Seam MU14-10FLK, Stud Size 10, 1000/Case - 7100164065

Sold As: 1000-Pack
SKU: 7100164065
MPN: 7100164065
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007018599
3M ID: 80610047880
5 Digit UPC: 1859
$147.52 ($0.15 / Count)
Hurry up! Current stock:

Product Description

Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Insulation MaterialNon-insulated
Maximum Conductor Size (Metric)2.08 mm²
Minimum Conductor Size (Imperial)16 AWG
Fork TypeLocking
Units per Case1000.0
Barrel StyleButted
Overall Length (Imperial)0.68
Dimension E0.5 Inch
Overall Width (Imperial) UOMin
Overall Length (Imperial) UOMin
Maximum Lock Width0.35 Inch
Stud Diameter (Imperial) UOMin
Stud Diameter (Metric) UOMmm
Barrel Inside Diameter0.09 Inch
Clearance (C)0.25 Inch
Stud Size#10
UL File NumberE23438
Barrel Length (Imperial)0.25 Inch
Stud Diameter (Imperial)0.19
Overall Width (Imperial)0.32
Terminal StyleLocking
Terminal TypeFork
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Minimum Conductor Size (Metric)1.31 mm²
Maximum Conductor Size (Imperial)14 AWG
Packaging1000 per bulk box
Stud Diameter (Metric)4.826
