3M Products & Supplies

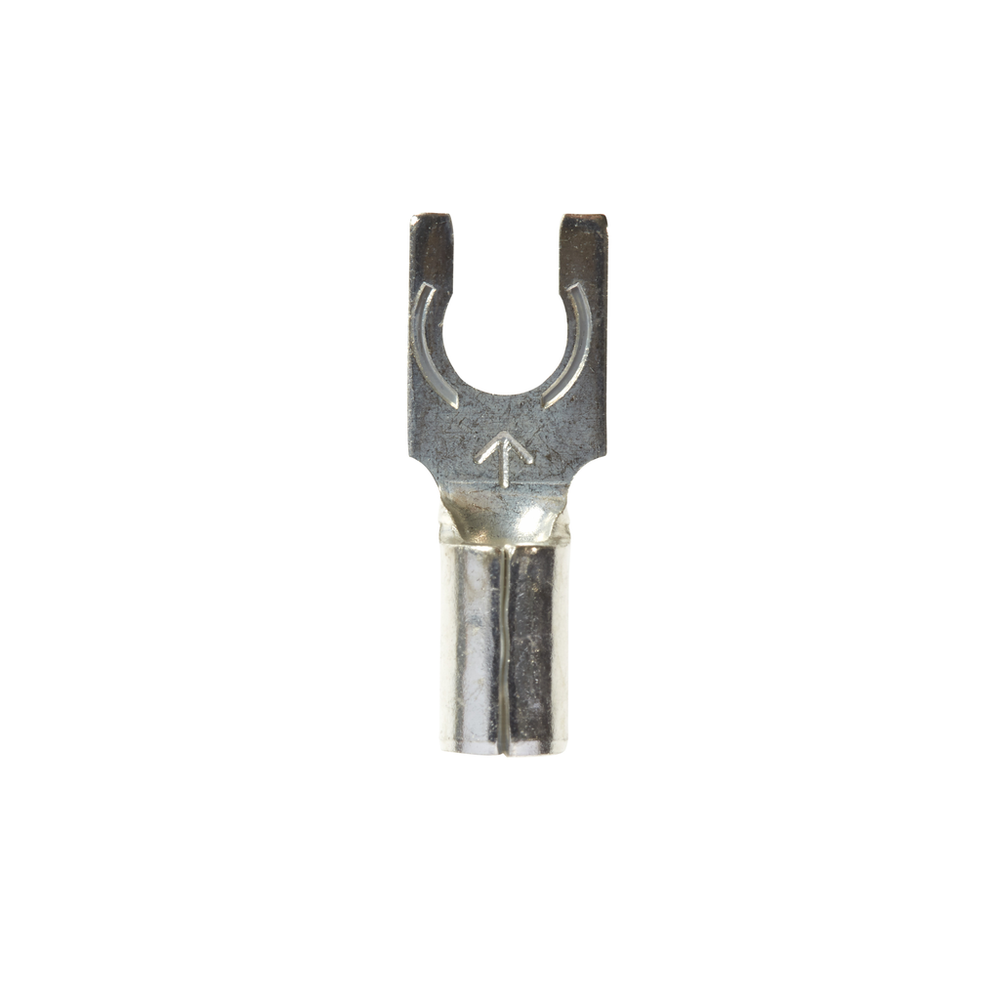

3M™ Scotchlok™ Locking Fork, Non-Insulated Butted Seam MU14-6FLK, Stud Size 6, 1000/Case - 7100164063

Sold As: 1000-Pack
SKU: 7100164063
MPN: 7100164063
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007018575
3M ID: 80610047864
5 Digit UPC: 1857
$185.04 ($0.19 / Count)
Hurry up! Current stock:

Product Description

Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Stud Diameter (Imperial)0.138
Stud Diameter (Metric)3.505
Maximum Conductor Size (Imperial)14 AWG
Barrel Inside Diameter0.09 Inch
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Units per Case1000.0
Stud Diameter (Imperial) UOMin
Barrel Length (Imperial)0.25 Inch
Overall Width (Imperial)0.25
Terminal StyleLocking
Clearance (C)0.25 Inch
Overall Length (Imperial)0.68
Barrel StyleButted
UL File NumberE23438
Overall Length (Imperial) UOMin
Maximum Lock Width0.27 Inch
Terminal TypeFork
Fork TypeLocking
Minimum Conductor Size (Imperial)16 AWG
Overall Width (Imperial) UOMin
Maximum Conductor Size (Metric)2.08 mm²
Minimum Conductor Size (Metric)1.31 mm²
Insulation MaterialNon-insulated
Dimension E0.5 Inch
Packaging1000 per bulk box
Stud Size#6
Stud Diameter (Metric) UOMmm
