3M Products & Supplies

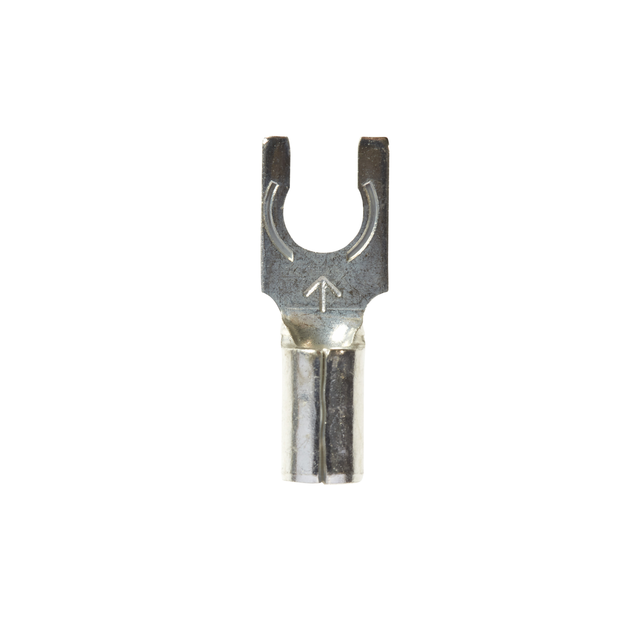

3M™ Scotchlok™ Locking Fork, Non-Insulated Butted Seam MU18-6FLK, Stud Size 6, 1000/Case - 7100163975

Sold As: 1000-Pack
SKU: 7100163975
MPN: 7100163975
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007013488
3M ID: 80610039879
5 Digit UPC: 1348
$147.52 ($0.15 / Count)
Hurry up! Current stock:

Product Description

Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Barrel Inside Diameter0.07 Inch
Stud Diameter (Imperial)0.138
Clearance (C)0.25 Inch
Maximum Lock Width0.27 Inch
Insulation MaterialNon-insulated
Overall Width (Imperial)0.25
Fork TypeLocking
Overall Width (Imperial) UOMin
Stud Diameter (Metric) UOMmm
Units per Case1000.0
Stud Size#6
UL File NumberE23438
Barrel StyleButted
Packaging1000 per bulk box
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Overall Length (Imperial) UOMin
Terminal TypeFork
Overall Length (Imperial)0.68
Barrel Length (Imperial)0.25 Inch
Stud Diameter (Imperial) UOMin
Dimension E0.5 Inch
Minimum Conductor Size (Imperial)22 AWG
Stud Diameter (Metric)3.505
Maximum Conductor Size (Imperial)18 AWG
Maximum Conductor Size (Metric).0823 mm²
Minimum Conductor Size (Metric)0.326 mm²
Terminal StyleLocking
