3M Products & Supplies

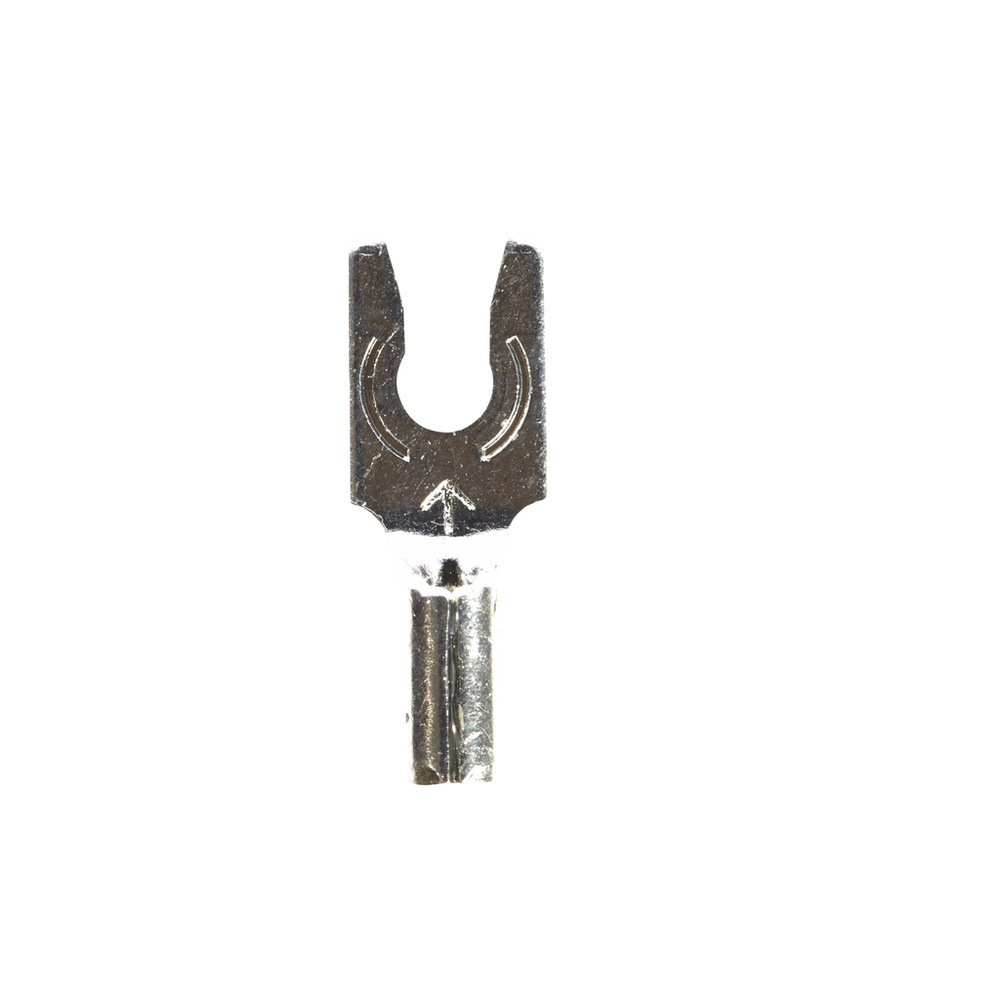

3M™ Scotchlok™ Locking Fork, Non-Insulated Butted Seam MU18-4FLK, Stud Size 4, 1000/Case - 7100163974

Sold As: 1000-Pack
SKU: 7100163974
MPN: 7100163974
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007013471
3M ID: 80610039861
5 Digit UPC: 1347
$185.04 ($0.19 / Count)
Hurry up! Current stock:

Product Description

Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Insulation MaterialNon-insulated
Barrel Inside Diameter0.07 Inch
Maximum Conductor Size (Metric).0823 mm²
Packaging1000 per bulk box
Barrel Length (Imperial)0.25 Inch
Fork TypeLocking
Stud Diameter (Imperial) UOMin
UL File NumberE23438
Minimum Conductor Size (Metric)0.326 mm²
Terminal StyleLocking
Barrel StyleButted
Overall Length (Imperial) UOMin
Terminal TypeFork
Minimum Conductor Size (Imperial)22 AWG
Stud Diameter (Metric)2.845
Dimension E0.5 Inch
Stud Size#4
Overall Width (Imperial)0.25
Maximum Lock Width0.27 Inch
Clearance (C)0.25 Inch
Maximum Conductor Size (Imperial)18 AWG
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Overall Length (Imperial)0.68
Stud Diameter (Imperial)0.112
Units per Case1000.0
Stud Diameter (Metric) UOMmm
Overall Width (Imperial) UOMin
