3M Products & Supplies

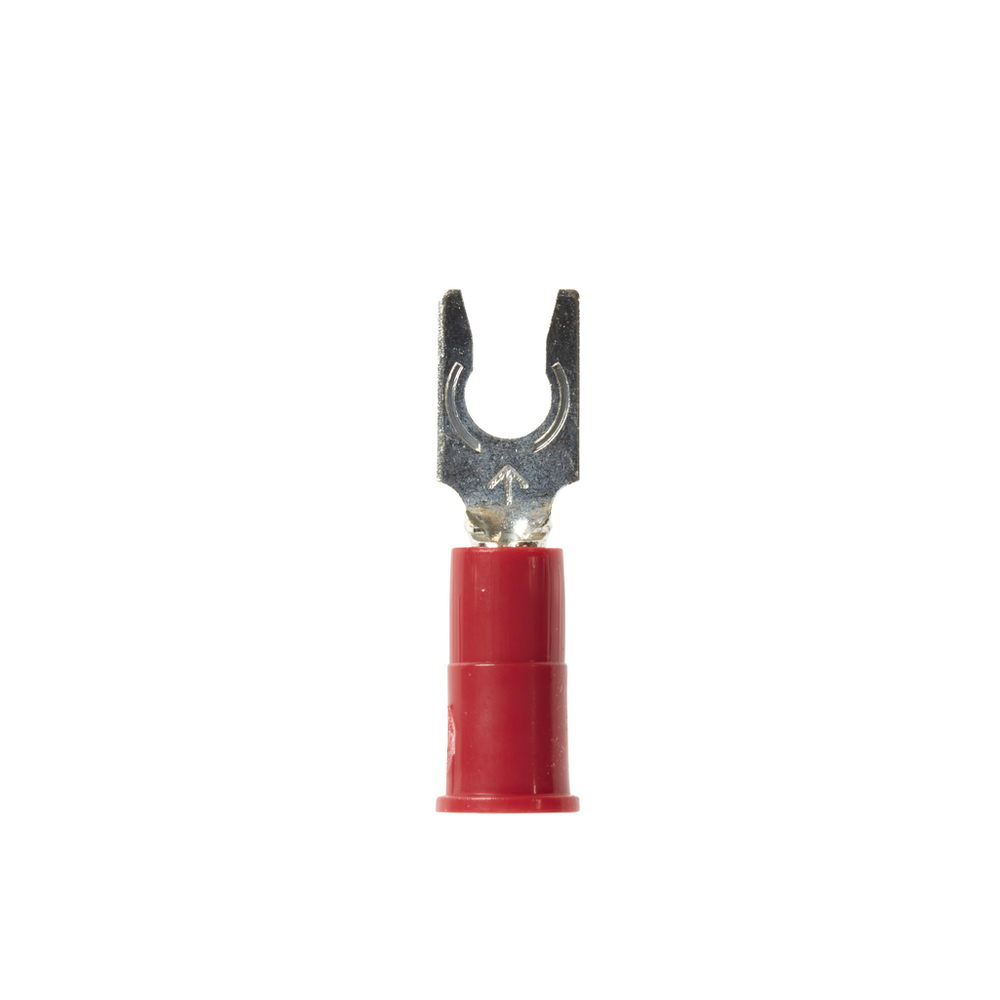

3M™ Scotchlok™ Locking Fork, Vinyl Insulated Butted Seam MVU18-6FLK, Stud Size 6, 1000/Case - 7000132244

Sold As: 1000-Pack
SKU: 7000132244
MPN: 7000132244
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007013600
3M ID: 80610040034
5 Digit UPC: 1360
$307.12 ($0.31 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Color-Coded Locking Fork is a lug connection terminal that has a spring-like tongue to securely lock around the stud. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Spring-like tongue firmly fits around the stud
  • 600V-rated for building wire and 1000V-rated for signs, fixtures or luminaires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Electrolytic copper construction offers good conductivity
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Maximum Insulation Outer Diameter (Metric)3.7
Maximum Operating Temperature (Fahrenheit) UOMDegree
Operating Temperature Range (Celsius)-40 °C to 105 °C
Maximum Conductor Size (Imperial)18 AWG
Clearance (C)0.25 Inch
Overall Length (Imperial) UOMin
Overall Width (Imperial) UOMin
Stud Diameter (Metric) UOMmm
Barrel StyleButted
Fork TypeLocking
UL File NumberE23438
Stud Diameter (Imperial) UOMin
Maximum Insulation Outside Diameter0.145 in
Insulation MaterialVinyl
Maximum Operating Temperature (Fahrenheit)221.0
Maximum Insulation Outer Diameter (Metric) UOMmm
Overall Width (Imperial)0.25
Barrel Length (Imperial)0.25 Inch
Packaging1000 per bulk box
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Voltage Rating600 to 1000 V
Maximum Recommended Voltage Rating UOMV
Stud Size#6
Terminal TypeFork
Stud Diameter (Imperial)0.138
Minimum Conductor Size (Metric)0.326 mm²
Maximum Conductor Size (Metric).0823 mm²
Operating Temperature Range (Fahrenheit)-40 °F to 221 °F
Stud Diameter (Metric)3.505
Terminal StyleLocking
Dimension E0.7 Inch
Units per Case1000.0
Maximum Recommended Voltage Rating600.0
Maximum Insulation Outer Diameter (Imperial)0.145
Maximum Insulation Outer Diameter (Imperial) UOMin
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Minimum Conductor Size (Imperial)22 AWG
Overall Length (Imperial)0.88
Product ColorRed
Maximum Lock Width0.27 Inch
Maximum Operating Temperature (Celsius)105.0
Barrel Inside Diameter0.07 Inch
