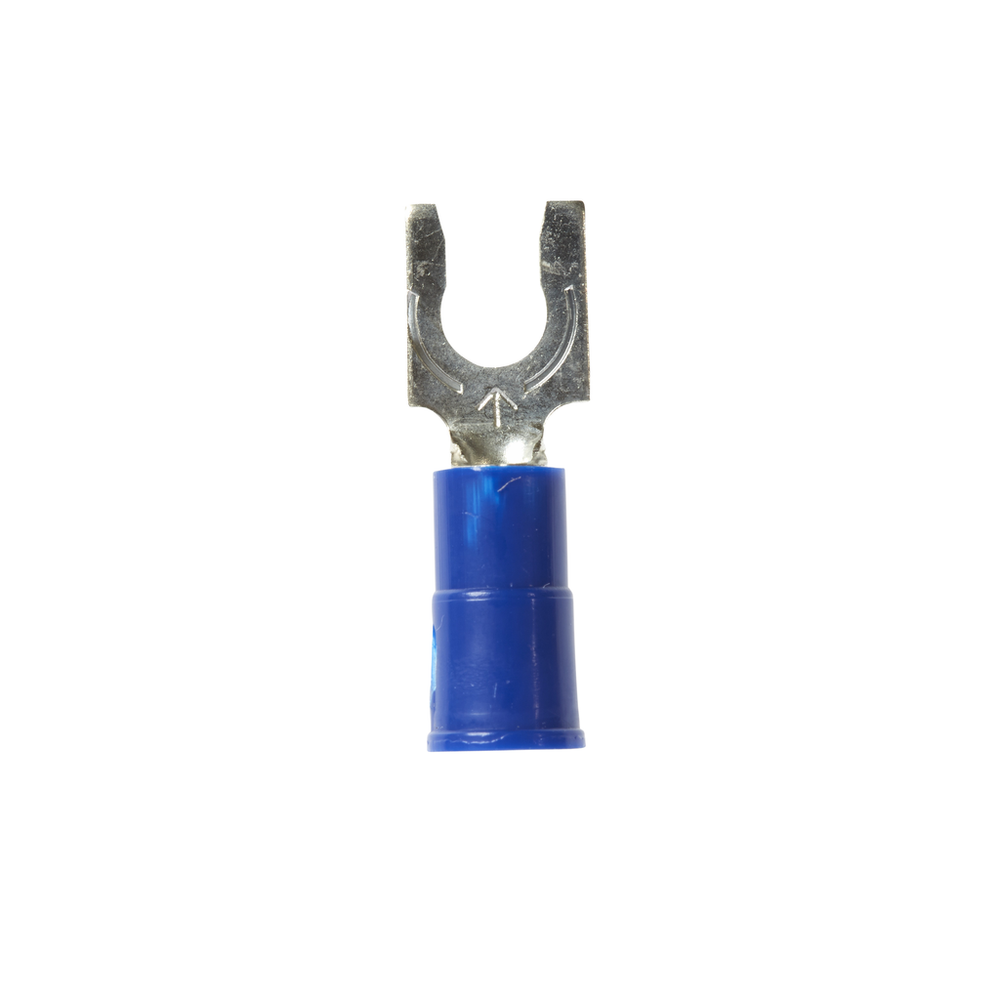

3M™ Scotchlok™ Locking Fork, Vinyl Insulated Butted Seam MVU14-8FLK, Stud Size 8, 1000/Case - 7100164072

Sold As: 1000-Pack
SKU: 7100164072
MPN: 7100164072
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007018735
3M ID: 80610048078
5 Digit UPC: 1873
$307.12 ($0.31 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Color-Coded Locking Fork is a lug connection terminal that has a spring-like tongue to securely lock around the stud. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • 600V-rated for building wire and 1000V-rated for signs, fixtures or luminaires
  • Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Electrolytic copper construction offers good conductivity
  • Spring-like tongue firmly fits around the stud
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Conductor Size (Metric)2.08 mm²
Fork TypeLocking
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Stud Diameter (Metric) UOMmm
UL File NumberE23438
Insulation MaterialVinyl
Minimum Conductor Size (Metric)1.31 mm²
Minimum Conductor Size (Imperial)16 AWG
Barrel Inside Diameter0.09 Inch
Overall Width (Imperial)0.3
Barrel Length (Imperial)0.25 Inch
Stud Size#8
Stud Diameter (Imperial)0.164
Dimension E0.7 Inch
Maximum Operating Temperature (Fahrenheit)221.0
Maximum Insulation Outer Diameter (Imperial) UOMin
Packaging1000 per bulk box
Barrel StyleButted
Overall Length (Imperial) UOMin
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Conductor Size (Imperial)14 AWG
Operating Temperature Range (Celsius)-40 °C to 105 °C
Terminal TypeFork
Clearance (C)0.25 Inch
Units per Case1000.0
Stud Diameter (Metric)4.166
Stud Diameter (Imperial) UOMin
Maximum Lock Width0.34 Inch
Maximum Insulation Outer Diameter (Imperial)0.17
Overall Length (Imperial)0.88
Overall Width (Imperial) UOMin
Terminal StyleLocking
Maximum Operating Temperature (Celsius)105.0
Operating Temperature Range (Fahrenheit)-40 °F to 221 °F
