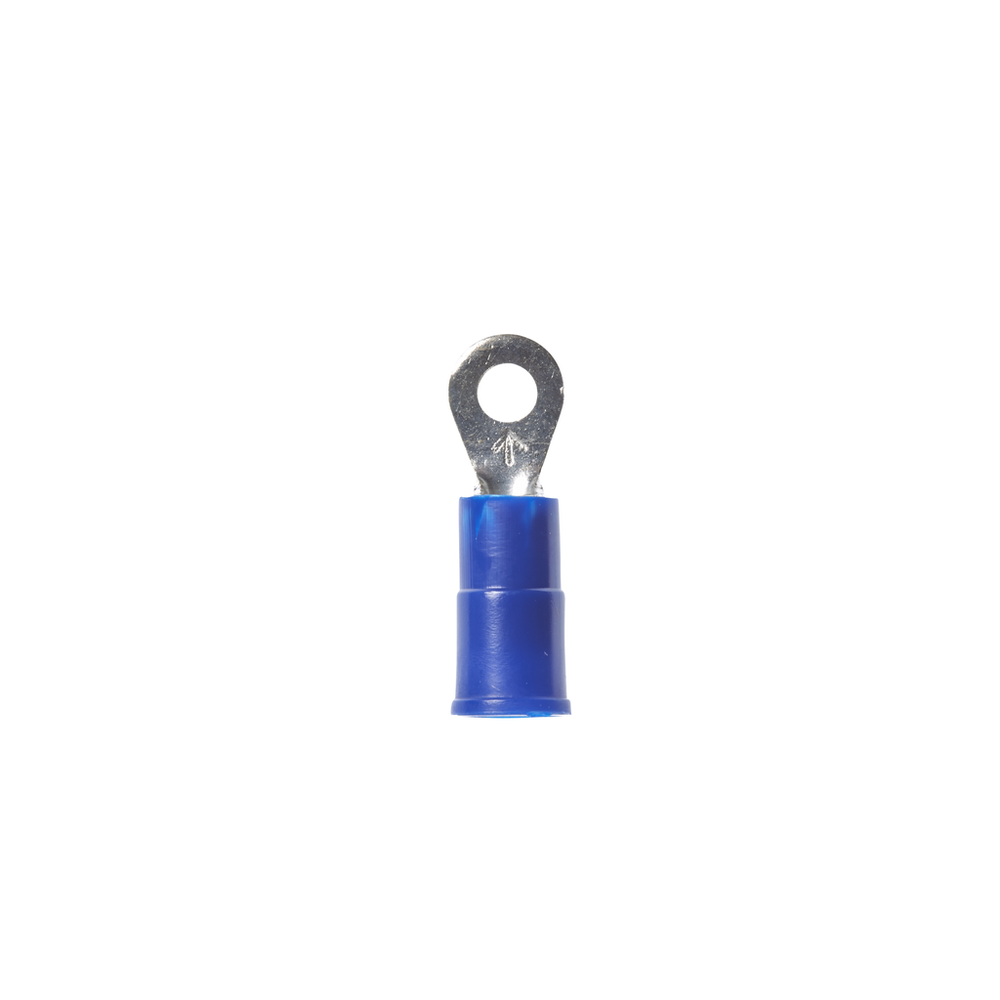

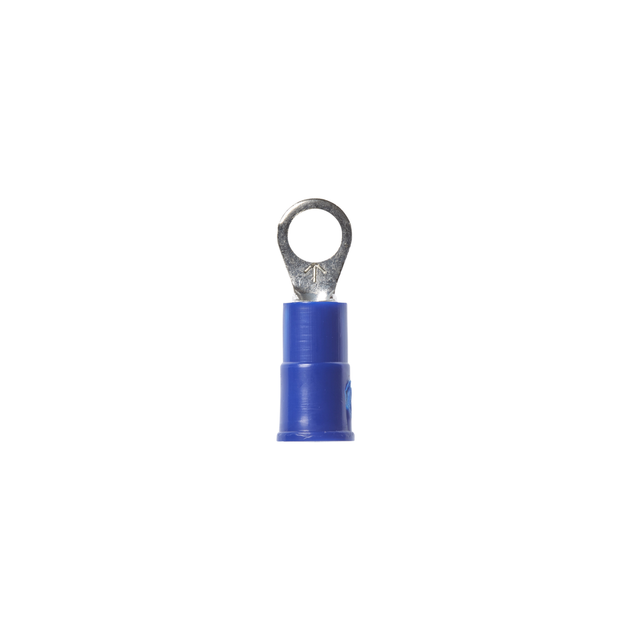

3M™ Scotchlok™ Ring Tongue, Vinyl Insulated Butted Seam MVU14-4R/SK, Stud Size 4, 1000/Case - 7100164007

Sold As: 1000-Pack
SKU: 7100164007
MPN: 7100164007
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007014447
3M ID: 80610040927
5 Digit UPC: 1444
$340.91 ($0.34 / Count)
Hurry up! Current stock:

Product Description

3M™ Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Standard-style ring tongue fits around the stud
  • Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Connection TypeCrimp
Maximum Conductor Size (Metric)2.08
Minimum Conductor Size (Imperial)16 AWG
Connection Width (Imperial)0.112
Minimum Conductor Size (Metric)1.31 mm²
Overall Length (Imperial)0.8
Overall Width (Imperial) UOMin
Connection Width (Metric)2.845
Maximum Conductor Size (Imperial)14 AWG
Overall Width (Imperial)0.25
Overall Length (Imperial) UOMin
Insulation MaterialVinyl
Maximum Operating Temperature (Celsius) UOMDegree
Connection Width (Imperial) UOMin
Terminal TypeRing
Connection Width (Metric) UOMmm
Maximum Operating Temperature (Celsius)105.0
