3M Products & Supplies

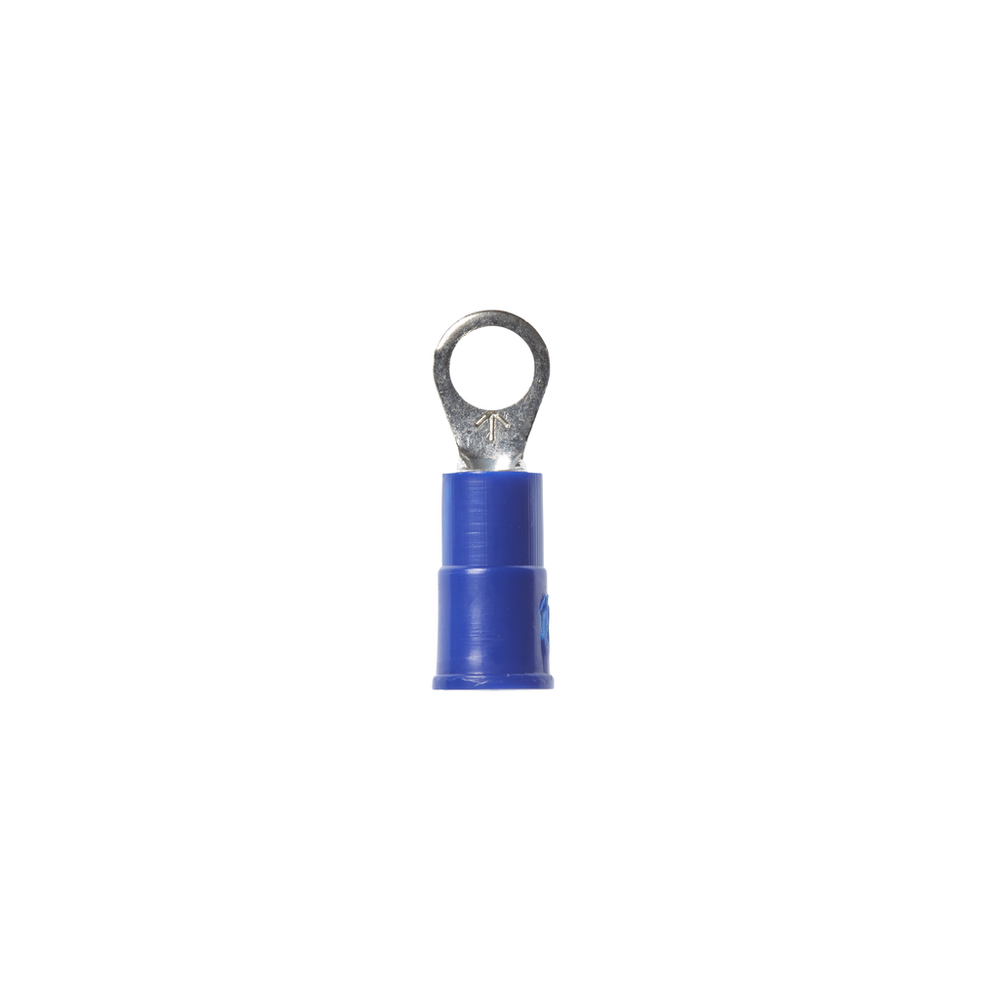

3M™ Scotchlok™ Ring Tongue, Vinyl Insulated Butted Seam MVU14-8R/SK, Stud Size 8, 1000/Case - 7100164008

Sold As: 1000-Pack
SKU: 7100164008
MPN: 7100164008
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007014492
3M ID: 80610040984
5 Digit UPC: 1449
$307.12 ($0.31 / Count)
Hurry up! Current stock:

Product Description

3M™ Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Standard-style ring tongue fits around the stud
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Minimum Conductor Size (Imperial)16 AWG
Maximum Conductor Size (Metric)2.08
Connection Width (Metric)4.166
Insulation MaterialVinyl
Minimum Conductor Size (Metric)1.31 mm²
Overall Width (Imperial)0.25
Connection Width (Imperial) UOMin
Maximum Operating Temperature (Celsius)105.0
Connection TypeCrimp
Connection Width (Metric) UOMmm
Maximum Operating Temperature (Celsius) UOMDegree
Overall Width (Imperial) UOMin
Connection Width (Imperial)0.164
Maximum Conductor Size (Imperial)14 AWG
Overall Length (Imperial)0.8
Overall Length (Imperial) UOMin
Terminal TypeRing
