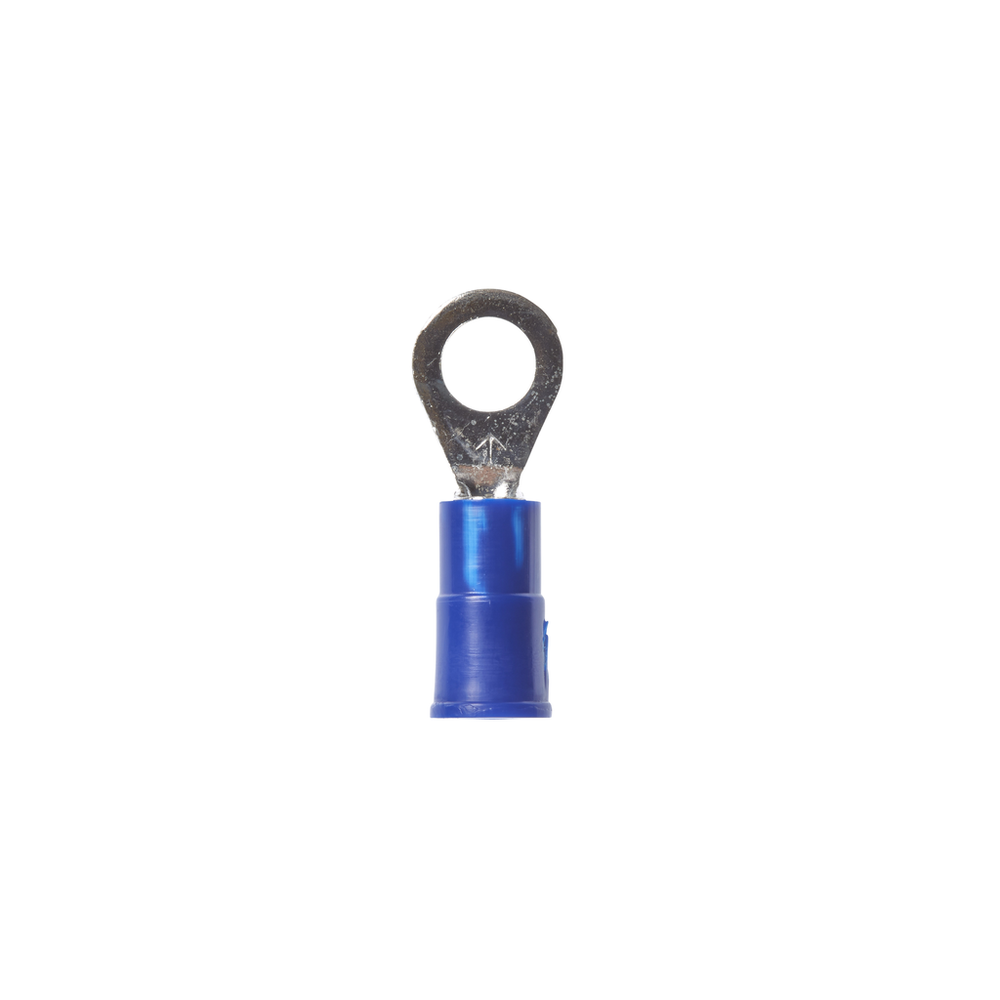

3M™ Scotchlok™ Ring Tongue, Vinyl Insulated Butted Seam MVU14-10RK, Stud Size 10, 1000/Case - 7100164011

Sold As: 1000-Pack
SKU: 7100164011
MPN: 7100164011
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007014522
3M ID: 80610041016
5 Digit UPC: 1452
$307.12 ($0.31 / Count)
Hurry up! Current stock:

Product Description

3M™ Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Standard-style ring tongue fits around the stud
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Terminal TypeRing
Connection Width (Metric)4.826
Overall Length (Imperial)0.9
Connection Width (Imperial)0.19
Overall Length (Imperial) UOMin
Minimum Conductor Size (Imperial)16 AWG
Maximum Operating Temperature (Celsius)105.0
Connection TypeCrimp
Overall Width (Imperial)0.33
Minimum Conductor Size (Metric)1.31 mm²
Maximum Operating Temperature (Celsius) UOMDegree
Connection Width (Metric) UOMmm
Maximum Conductor Size (Imperial)14 AWG
Overall Width (Imperial) UOMin
Maximum Conductor Size (Metric)2.08
Insulation MaterialVinyl
Connection Width (Imperial) UOMin
