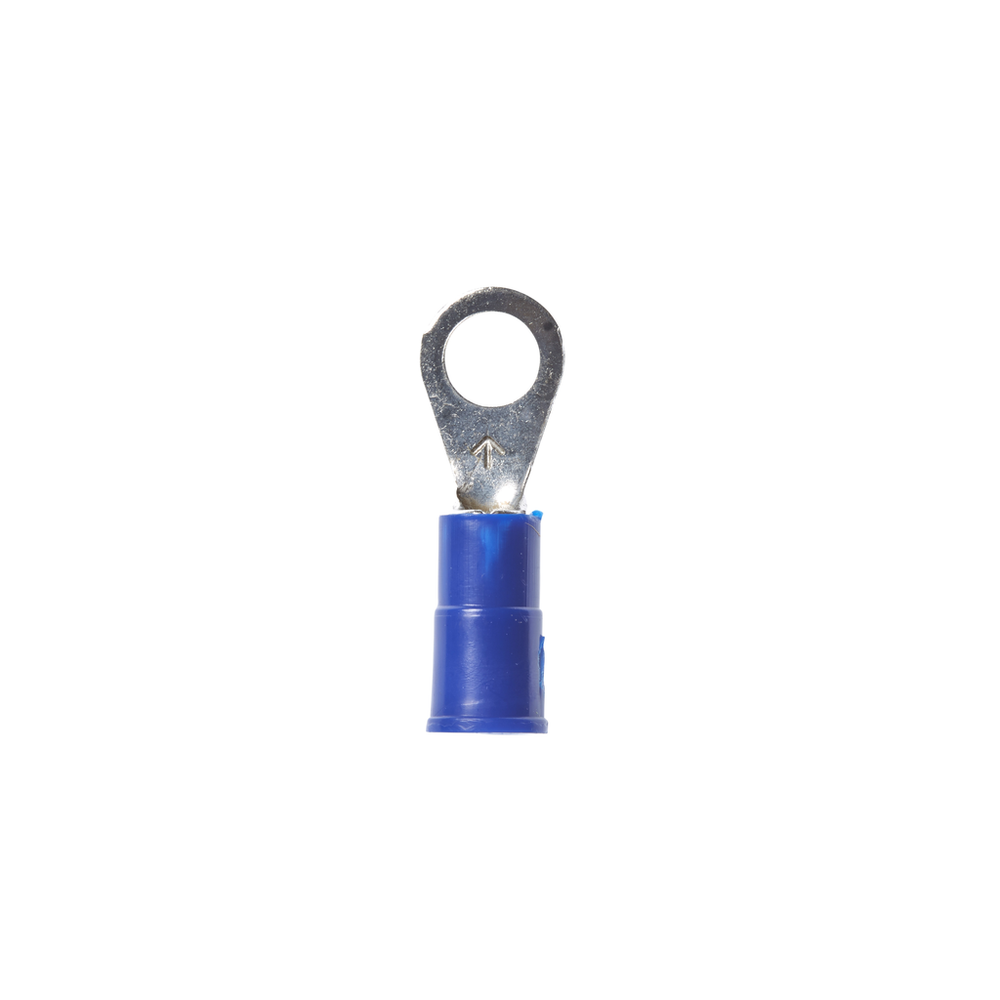

3M™ Scotchlok™ Ring Tongue, Vinyl Insulated Butted Seam MVU14-10R/LK, Stud Size 10, 1000/Case - 7100164012

Sold As: 1000-Pack
SKU: 7100164012
MPN: 7100164012
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007014539
3M ID: 80610041024
5 Digit UPC: 1453
$307.12 ($0.31 / Count)
Hurry up! Current stock:

Product Description

3M™ Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Standard-style ring tongue fits around the stud
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Maximum Conductor Size (Imperial)14 AWG
Connection Width (Metric)4.826
Connection Width (Imperial)0.19
Connection Width (Metric) UOMmm
Overall Width (Imperial) UOMin
Minimum Conductor Size (Imperial)16 AWG
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Conductor Size (Metric)1.31 mm²
Overall Length (Imperial)0.93
Maximum Conductor Size (Metric)2.08
Connection TypeCrimp
Maximum Operating Temperature (Celsius)105.0
Connection Width (Imperial) UOMin
Overall Width (Imperial)0.31
Terminal TypeRing
Insulation MaterialVinyl
Overall Length (Imperial) UOMin
