3M Products & Supplies

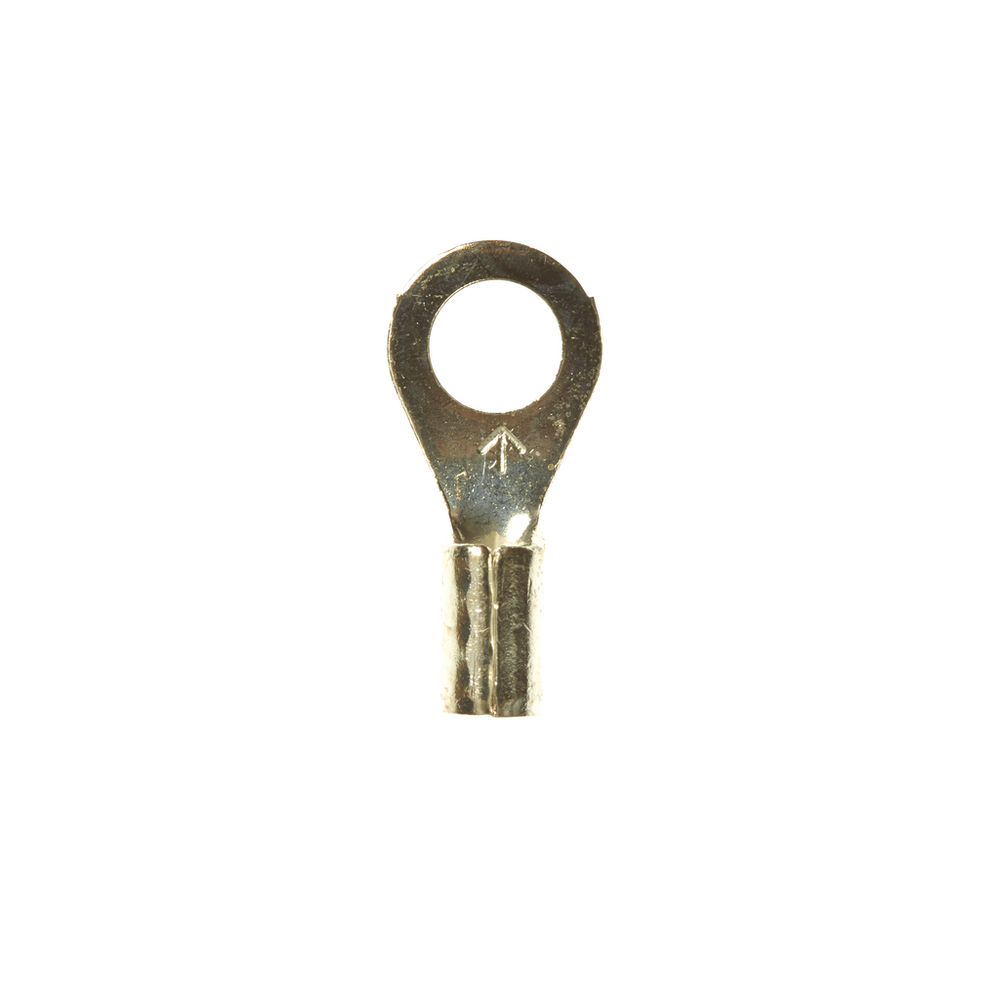

3M™ Scotchlok™ Ring Tongue, Non-Insulated Butted Seam MU14-10RK, Stud Size 10, 1000/Case - 7100163987

Sold As: 1000-Pack
SKU: 7100163987
MPN: 7100163987
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007013723
3M ID: 80610040158
5 Digit UPC: 1372
$147.52 ($0.15 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Non-Insulated Butted Seam Ring Tongue terminal ensures an ideal fit while offering reliable and safe performance. The non-insulated, butted-seam barrel has a beveled mouth that guides the wire into position. Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Standard-style ring tongue fits around the stud
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Beveled mouth offers easy insertion of wires
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
  • Non-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Maximum Conductor Size (Metric)2.08
Overall Width (Imperial) UOMin
Maximum Operating Temperature (Celsius) UOMDegree
Overall Length (Imperial) UOMin
Insulation MaterialNon-insulated
Ring TypeStandard
Connection Width (Metric)4.826
Maximum Operating Temperature (Celsius)105.0
Terminal StyleStandard
Barrel StyleButted
Solution forWireless Network: Infrastructure Accessories
Barrel Length (Imperial)0.25 Inch
Minimum Conductor Size (Metric)1.31 mm²
Terminal TypeRing
Connection Width (Imperial)0.19
Connection Width (Imperial) UOMin
UL File NumberE23438
Overall Length (Imperial)0.7
Overall Width (Imperial)0.33
Minimum Conductor Size (Imperial)16 AWG
Maximum Conductor Size (Imperial)14 AWG
Connection Width (Metric) UOMmm
