3M Products & Supplies

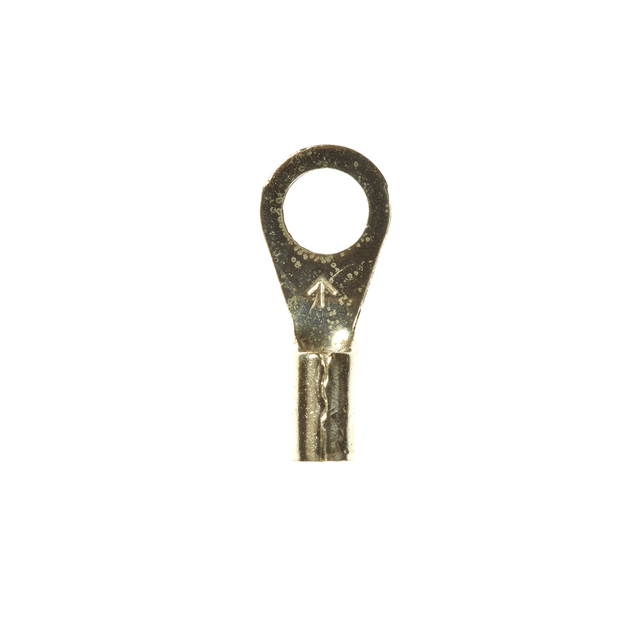

3M™ Scotchlok™ Ring Tongue, Non-Insulated Butted Seam MU14-4R/SK, Stud Size 4, 1000/Case - 7100163984

Sold As: 1000-Pack
SKU: 7100163984
MPN: 7100163984
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007013648
3M ID: 80610040075
5 Digit UPC: 1364
$175.27 ($0.18 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Non-Insulated Butted Seam Ring Tongue terminal ensures an ideal fit while offering reliable and safe performance. The non-insulated, butted-seam barrel has a beveled mouth that guides the wire into position. Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Standard-style ring tongue fits around the stud
  • Beveled mouth offers easy insertion of wires
  • Non-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Overall Length (Imperial) UOMin
Overall Width (Imperial) UOMin
Maximum Operating Temperature (Celsius) UOMDegree
Terminal TypeRing
Maximum Conductor Size (Metric)2.08
Connection Width (Imperial)0.112
Terminal StyleStandard
Minimum Conductor Size (Metric)1.31 mm²
Barrel Length (Imperial)0.25 Inch
Barrel StyleButted
Connection Width (Metric)2.845
Maximum Operating Temperature (Celsius)105.0
Maximum Conductor Size (Imperial)14 AWG
UL File NumberE23438
Overall Width (Imperial)0.25
Insulation MaterialNon-insulated
Ring TypeStandard
Connection Width (Imperial) UOMin
Overall Length (Imperial)0.6
Solution forWireless Network: Infrastructure Accessories
Connection Width (Metric) UOMmm
Minimum Conductor Size (Imperial)16 AWG
