3M Products & Supplies

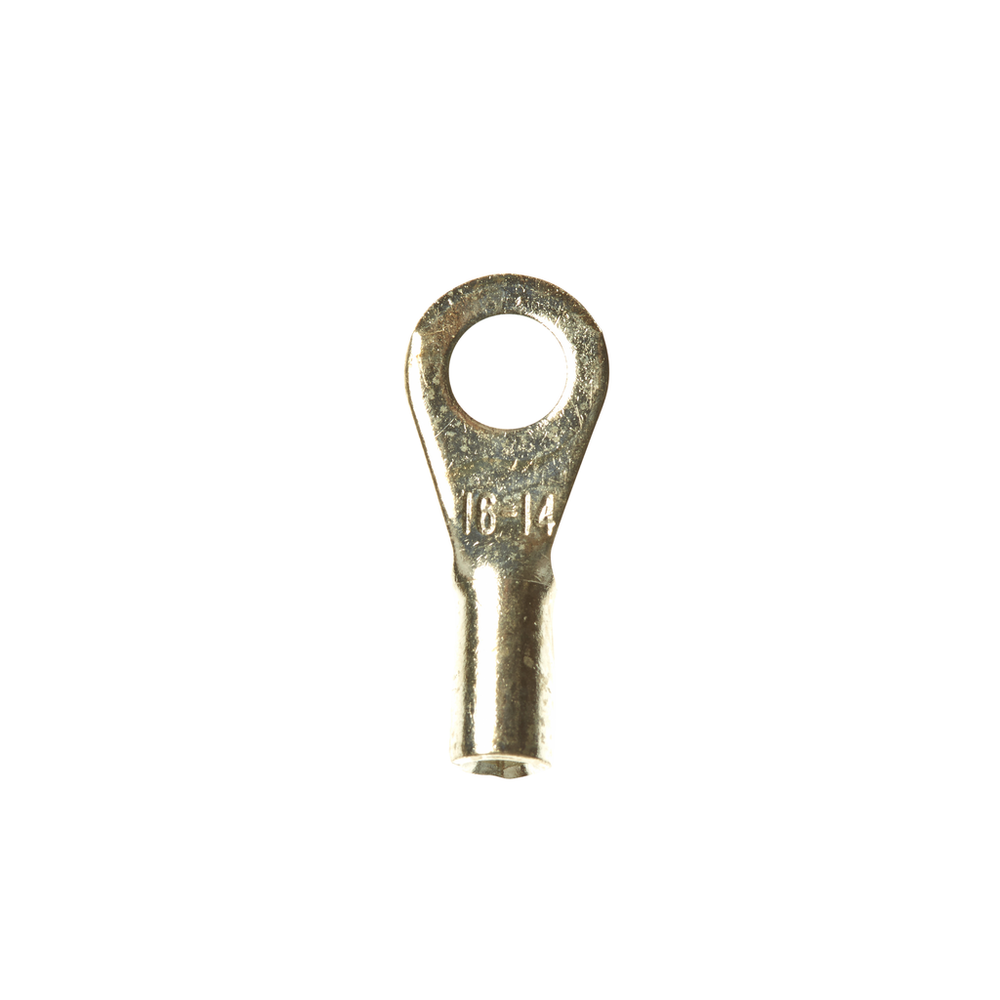

3M™ Scotchlok™ Ring Tongue, Non-Insulated Butted Seam MU14-8R/LK, Stud Size 8, 1000/Case - 7100163986

Sold As: 1000-Pack
SKU: 7100163986
MPN: 7100163986
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007013716
3M ID: 80610040141
5 Digit UPC: 1371
$147.52 ($0.15 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Non-Insulated Butted Seam Ring Tongue terminal ensures an ideal fit while offering reliable and safe performance. The non-insulated, butted-seam barrel has a beveled mouth that guides the wire into position. Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Beveled mouth offers easy insertion of wires
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
  • Non-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Standard-style ring tongue fits around the stud
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Overall Width (Imperial) UOMin
Terminal TypeRing
Overall Length (Imperial)0.74
Barrel StyleButted
Barrel Length (Imperial)0.25 Inch
Overall Length (Imperial) UOMin
Ring TypeStandard
Solution forWireless Network: Infrastructure Accessories
Minimum Conductor Size (Metric)1.31 mm²
Maximum Operating Temperature (Celsius)105.0
UL File NumberE23438
Minimum Conductor Size (Imperial)16 AWG
Maximum Conductor Size (Imperial)14 AWG
Connection Width (Imperial) UOMin
Connection Width (Metric)4.166
Maximum Conductor Size (Metric)2.08
Overall Width (Imperial)0.25
Connection Width (Metric) UOMmm
Terminal StyleStandard
Maximum Operating Temperature (Celsius) UOMDegree
Insulation MaterialNon-insulated
Connection Width (Imperial)0.164
