3M Products & Supplies

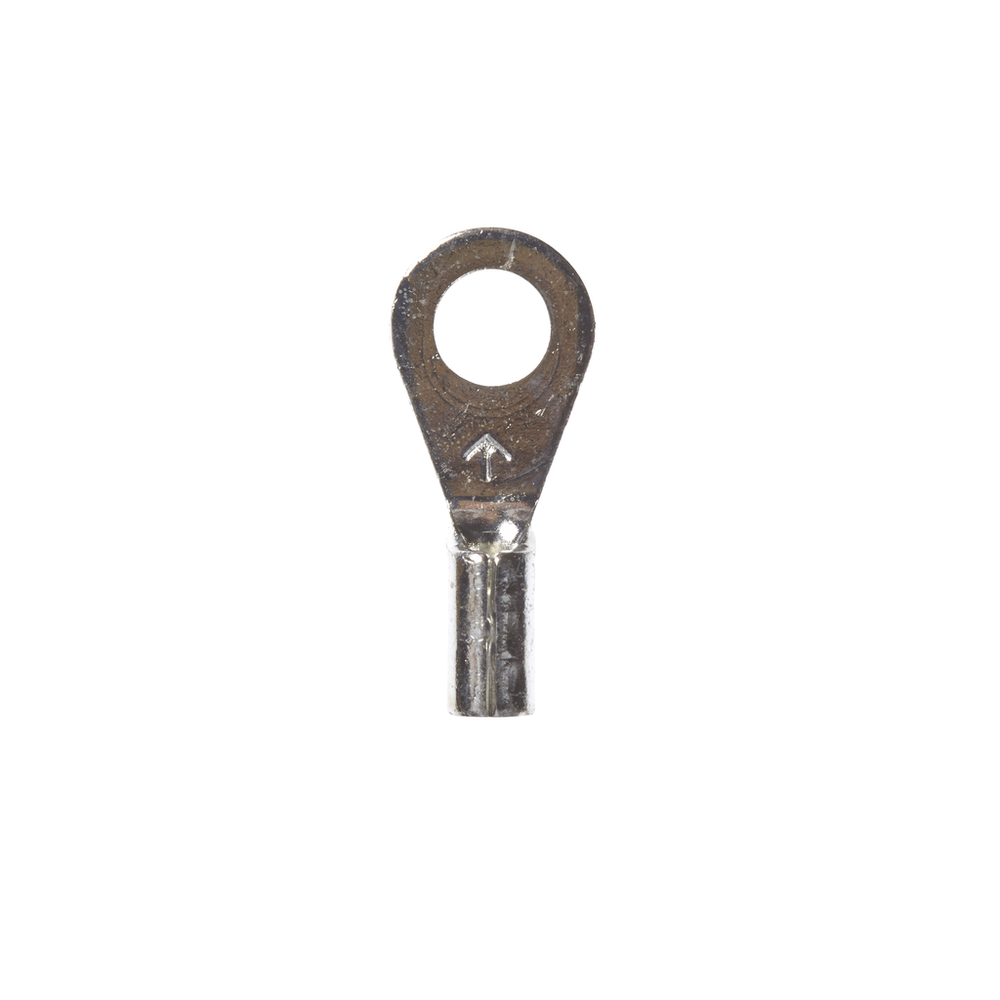

3M™ Scotchlok™ Ring Tongue, Non-Insulated Butted Seam MU18-8R/LK, Stud Size 8, 1000/Case - 7100163917

Sold As: 1000-Pack
SKU: 7100163917
MPN: 7100163917
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007010050
3M ID: 80610034680
5 Digit UPC: 1005
$147.52 ($0.15 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Non-Insulated Butted Seam Ring Tongue terminal ensures an ideal fit while offering reliable and safe performance. The non-insulated, butted-seam barrel has a beveled mouth that guides the wire into position. Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Standard-style ring tongue fits around the stud
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Non-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Beveled mouth offers easy insertion of wires
  • Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Overall Width (Imperial) UOMin
Maximum Operating Temperature (Celsius) UOMDegree
Connection Width (Metric)4.166
Overall Width (Imperial)0.31
Minimum Conductor Size (Imperial)22 AWG
Connection Width (Metric) UOMmm
Overall Length (Imperial)0.74
Ring TypeStandard
Maximum Conductor Size (Imperial)18 AWG
Solution forWireless Network: Infrastructure Accessories
Terminal TypeRing
Overall Length (Imperial) UOMin
Connection Width (Imperial) UOMin
Minimum Conductor Size (Metric)0.326 mm²
Connection Width (Imperial)0.164
UL File NumberE23438
Insulation MaterialNon-insulated
Barrel Length (Imperial)0.25 Inch
Terminal StyleStandard
Maximum Operating Temperature (Celsius)105.0
Maximum Conductor Size (Metric)0.823
Barrel StyleButted
