3M Products & Supplies

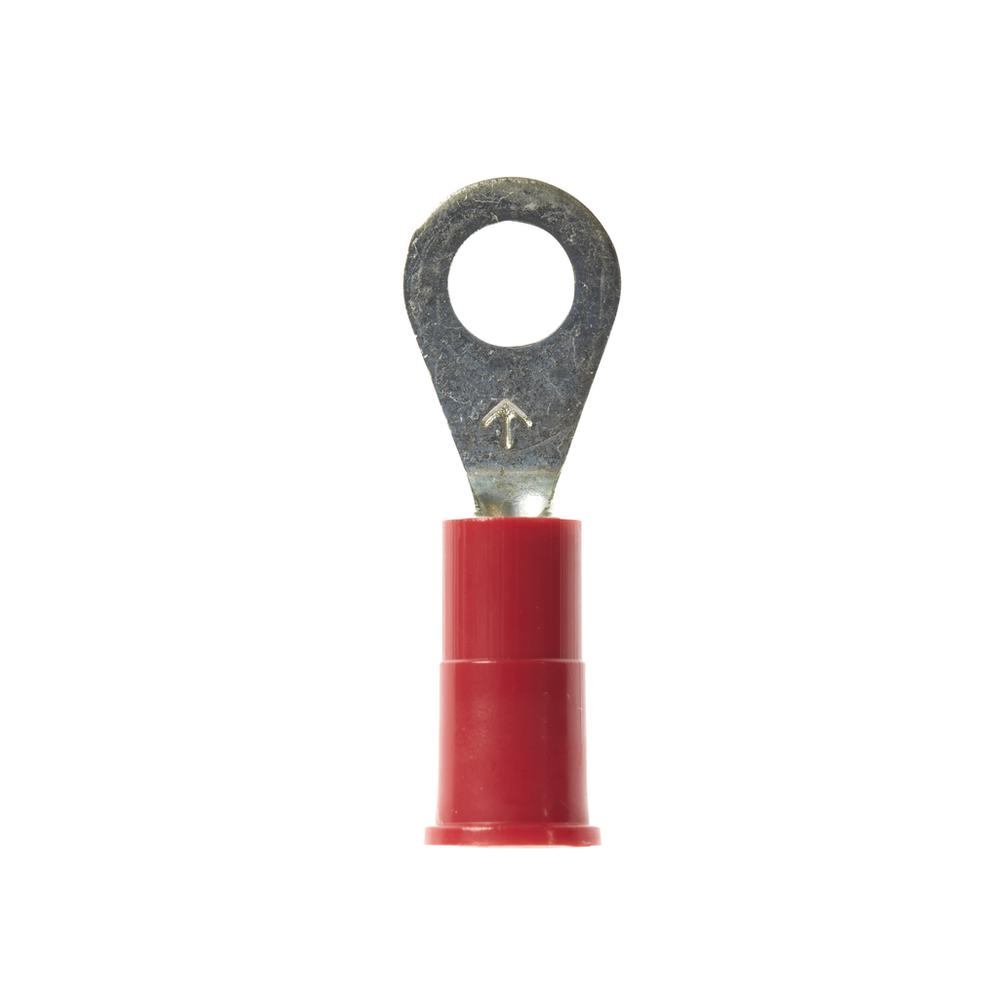

3M™ Scotchlok™ Ring Tongue, Vinyl Insulated Butted Seam MVU18-8R/LK, Stud Size 8, 1000/Case - 7000132240

Sold As: 1000-Pack
SKU: 7000132240
MPN: 7000132240
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007010852
3M ID: 80610035547
5 Digit UPC: 1085
$307.12 ($0.31 / Count)
Hurry up! Current stock:

Product Description

3M™ Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Standard-style ring tongue fits around the stud
  • Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Connection Width (Metric)4.826
Maximum Operating Temperature (Celsius)105.0
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Conductor Size (Metric)0.326 mm²
Product ColorRed
Overall Length (Imperial) UOMin
Insulation MaterialVinyl
Terminal TypeRing
Minimum Conductor Size (Imperial)22 AWG
Connection Width (Imperial) UOMin
Connection TypeCrimp
Maximum Conductor Size (Metric)0.823
Overall Width (Imperial)0.31
Maximum Conductor Size (Imperial)18 AWG
Connection Width (Metric) UOMmm
Overall Length (Imperial)0.93
Overall Width (Imperial) UOMin
Connection Width (Imperial)0.19
