3M Products & Supplies

3M™ Scotchlok™ Ring Tongue, Vinyl Insulated Butted Seam MVU18-38RK, Stud Size 3/8, 1000/Case - 7100163936

Sold As: 1000-Pack
SKU: 7100163936
MPN: 7100163936
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007010920
3M ID: 80610035620
5 Digit UPC: 1092
$507.96 ($0.51 / Count)
Hurry up! Current stock:

Product Description

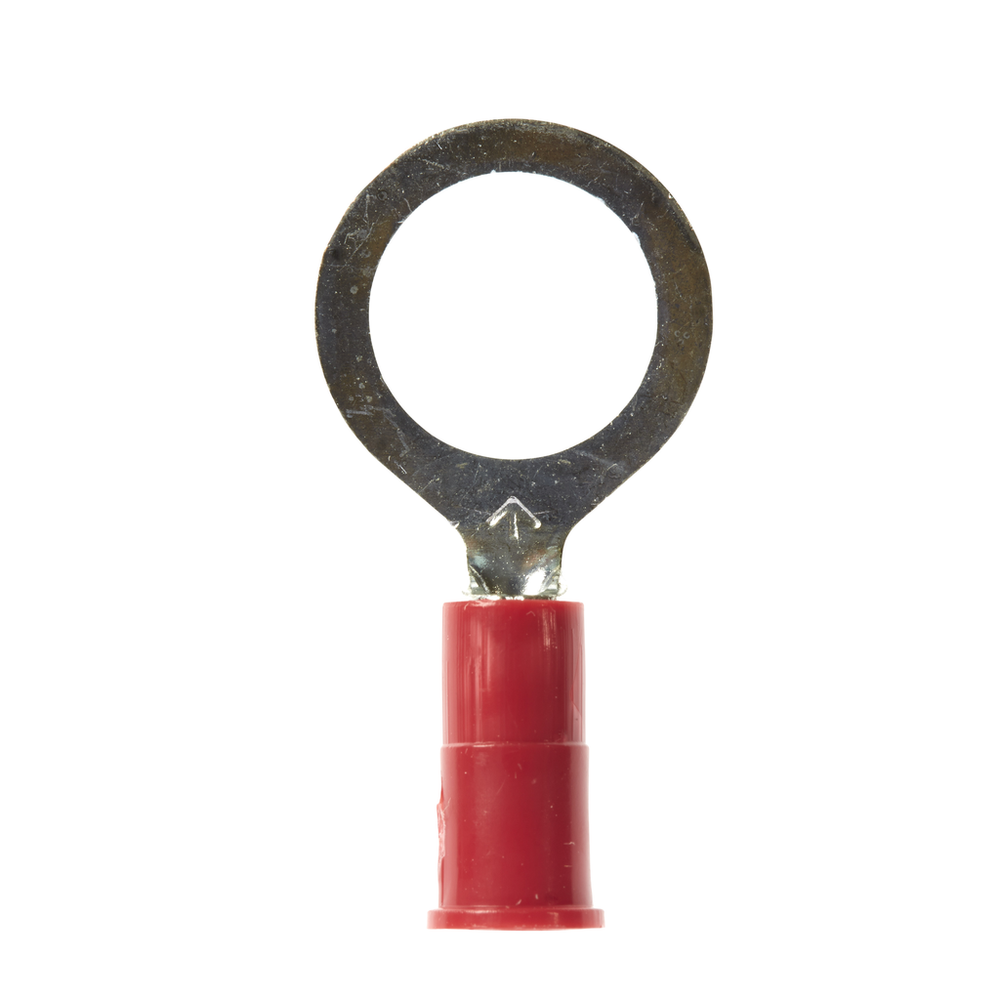

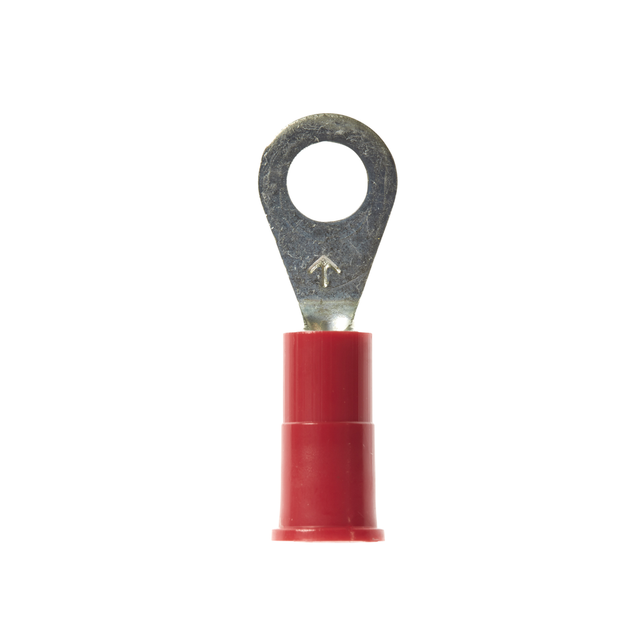

3M™ Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Standard-style ring tongue fits around the stud
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Minimum Conductor Size (Imperial)22 AWG
Overall Length (Imperial) UOMin
Connection TypeCrimp
Connection Width (Imperial)0.375
Overall Width (Imperial)0.56
Connection Width (Imperial) UOMin
Terminal TypeRing
Connection Width (Metric)9.525
Minimum Conductor Size (Metric)0.326 mm²
Maximum Operating Temperature (Celsius) UOMDegree
Insulation MaterialVinyl
Overall Width (Imperial) UOMin
Maximum Conductor Size (Imperial)18 AWG
Overall Length (Imperial)1.13
Connection Width (Metric) UOMmm
Maximum Conductor Size (Metric)0.823
Maximum Operating Temperature (Celsius)105.0
