3M Products & Supplies

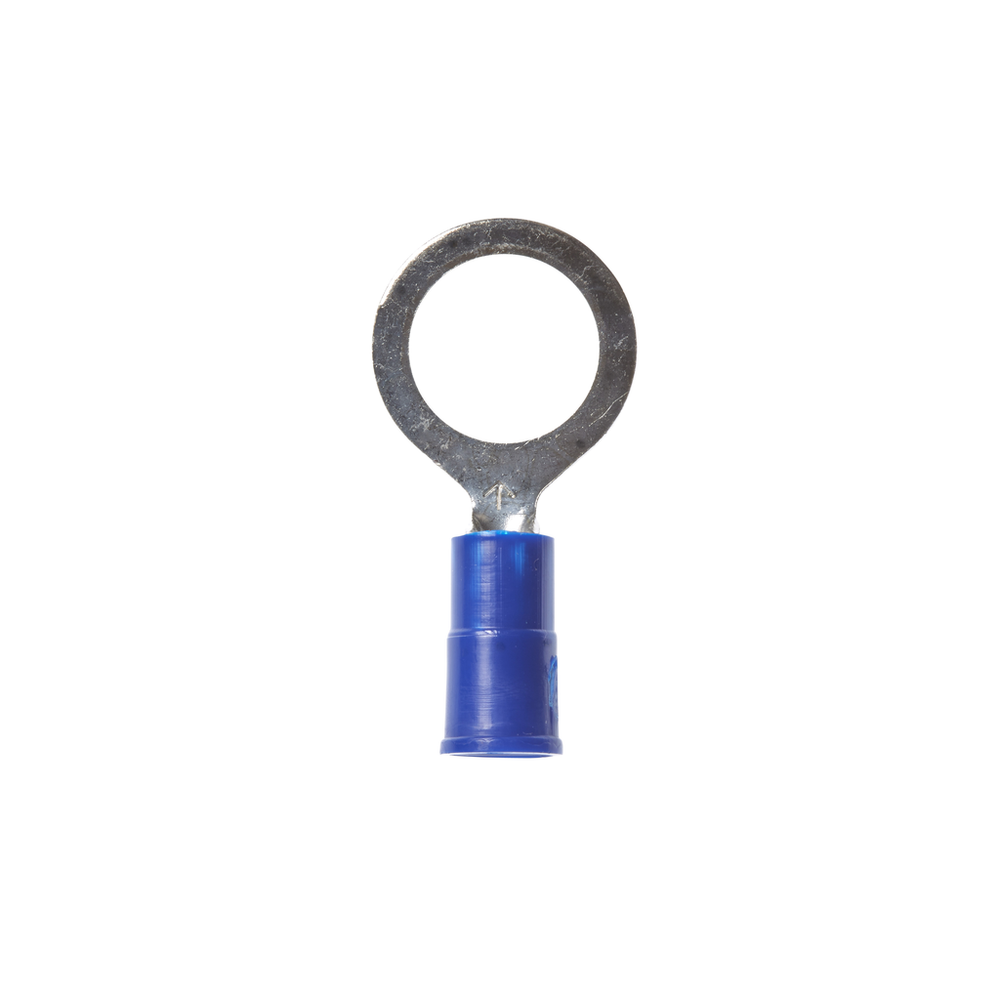

3M™ Scotchlok™ Ring Tongue, Vinyl Insulated Butted Seam MVU14-38RK, Stud Size 3/8, 1000/Case - 7100164014

Sold As: 1000-Pack
SKU: 7100164014
MPN: 7100164014
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007014584
3M ID: 80610041081
5 Digit UPC: 1458
$507.96 ($0.51 / Count)
Hurry up! Current stock:

Product Description

3M™ Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Standard-style ring tongue fits around the stud
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Connection Width (Metric) UOMmm
Overall Length (Imperial)1.13
Insulation MaterialVinyl
Connection Width (Imperial) UOMin
Maximum Conductor Size (Metric)2.08
Connection Width (Metric)9.525
Maximum Operating Temperature (Celsius) UOMDegree
Overall Width (Imperial)0.56
Overall Width (Imperial) UOMin
Maximum Operating Temperature (Celsius)105.0
Connection TypeCrimp
Maximum Conductor Size (Imperial)14 AWG
Terminal TypeRing
Minimum Conductor Size (Imperial)16 AWG
Overall Length (Imperial) UOMin
Connection Width (Imperial)0.375
Minimum Conductor Size (Metric)1.31 mm²
