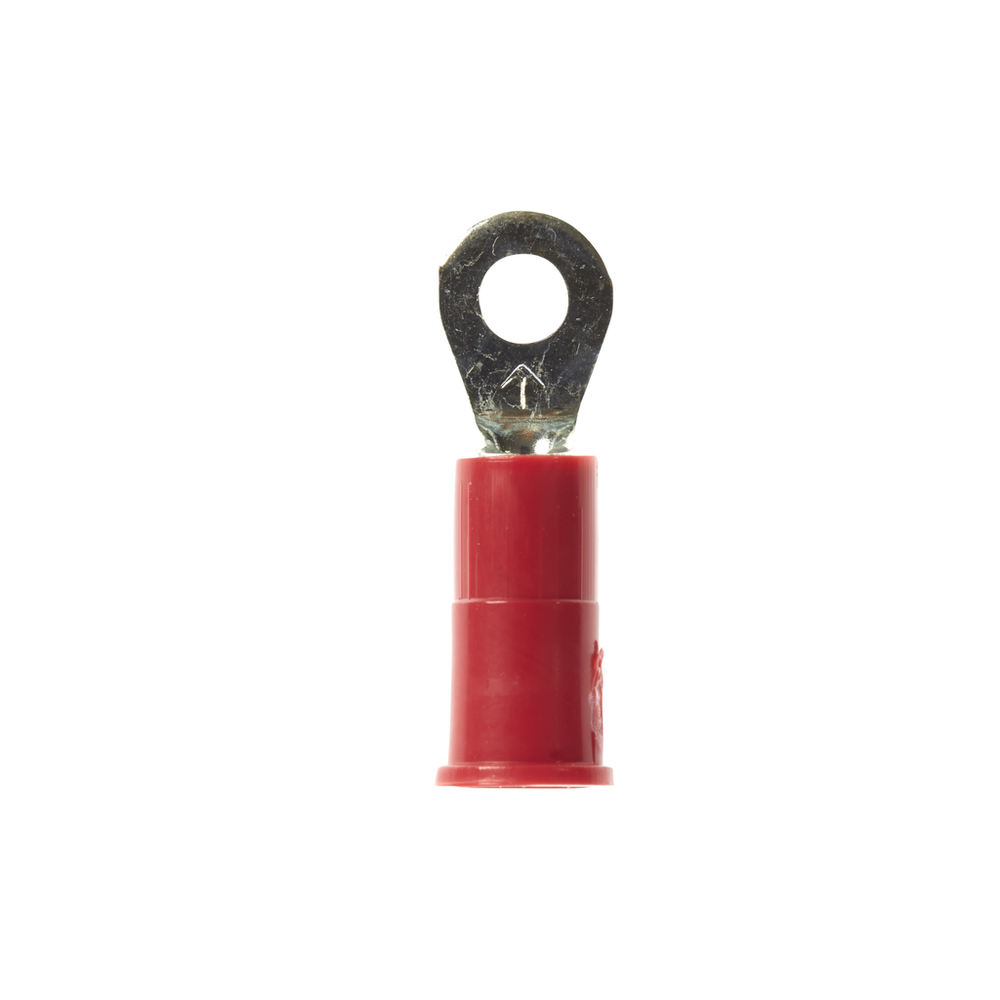

3M™ Scotchlok™ Ring Tongue, Vinyl Insulated Butted Seam MVU18-4R/SK, Stud Size 4, 1000/Case - 7100163932

Sold As: 1000-Pack
SKU: 7100163932
MPN: 7100163932
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007010784
3M ID: 80610035455
5 Digit UPC: 1078
$340.91 ($0.34 / Count)
Hurry up! Current stock:

Product Description

3M™ Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Standard-style ring tongue fits around the stud
  • Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Maximum Operating Temperature (Celsius) UOMDegree
Insulation MaterialVinyl
Maximum Conductor Size (Metric)0.823
Connection Width (Imperial) UOMin
Maximum Operating Temperature (Celsius)105.0
Overall Width (Imperial) UOMin
Minimum Conductor Size (Metric)0.326 mm²
Terminal TypeRing
Overall Width (Imperial)0.25
Connection TypeCrimp
Overall Length (Imperial) UOMin
Connection Width (Metric)2.845
Connection Width (Imperial)0.112
Maximum Conductor Size (Imperial)18 AWG
Overall Length (Imperial)0.8
Connection Width (Metric) UOMmm
Minimum Conductor Size (Imperial)22 AWG
