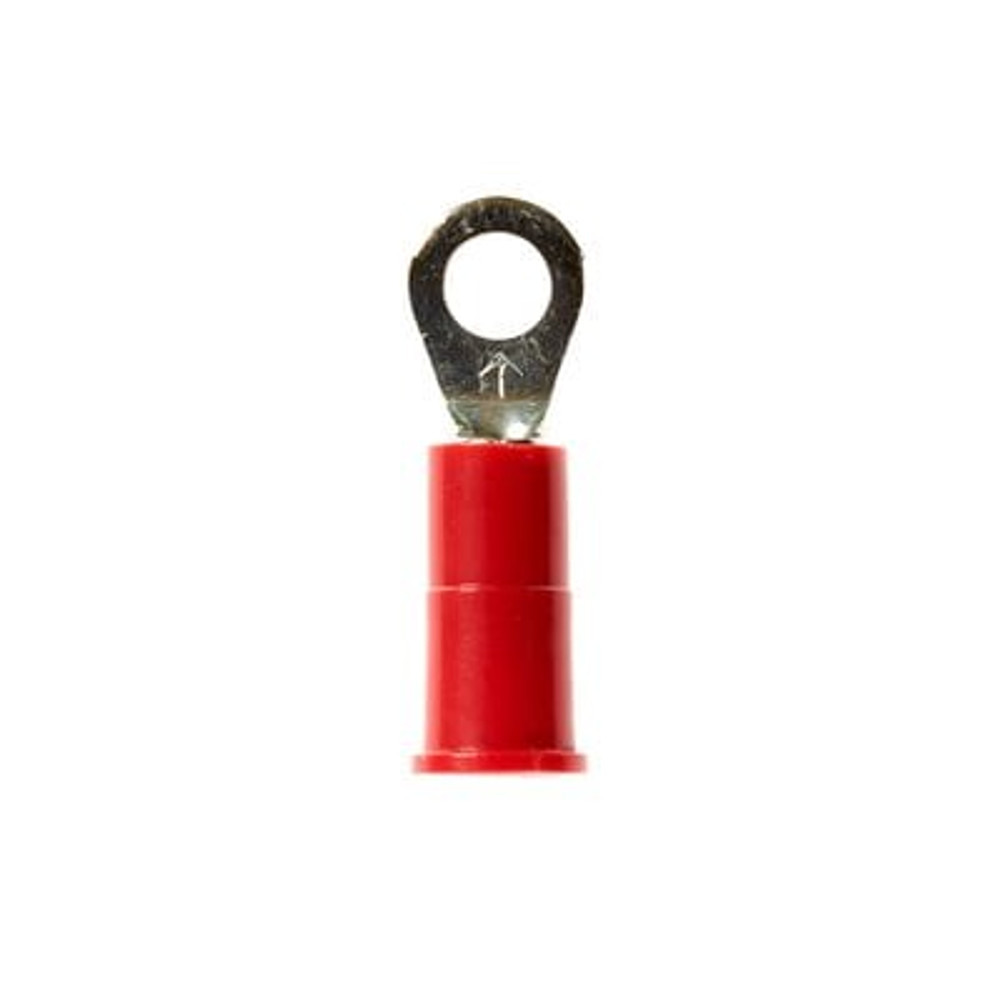

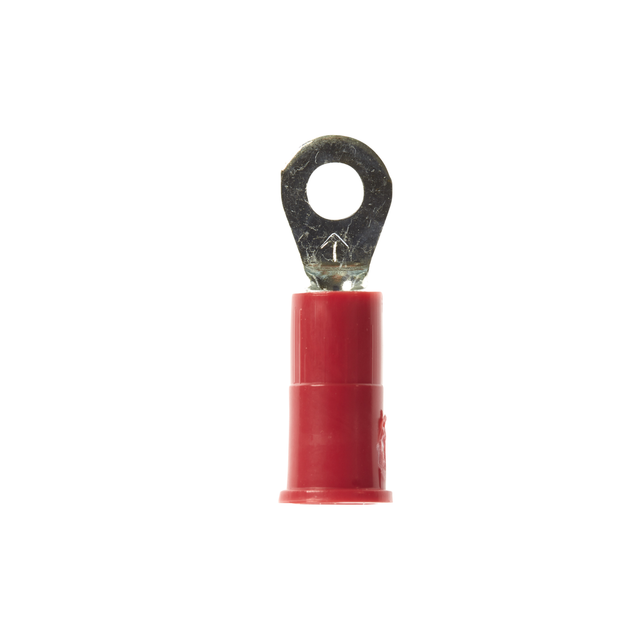

3M™ Scotchlok™ Ring Tongue, Vinyl Insulated Butted Seam MVU18-6R/SK, Stud Size 6, 1000/Case - 7000132239

Sold As: 1000-Pack
SKU: 7000132239
MPN: 7000132239
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007010807
3M ID: 80610035471
5 Digit UPC: 1080
$307.12 ($0.31 / Count)
Hurry up! Current stock:

Product Description

3M™ Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Standard-style ring tongue fits around the stud
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Connection Width (Imperial)0.138
Connection Width (Metric) UOMmm
Connection Width (Metric)3.5
Overall Length (Imperial) UOMin
Overall Width (Imperial)0.25
Overall Length (Imperial)0.8
Maximum Conductor Size (Metric)0.823
Maximum Operating Temperature (Celsius) UOMDegree
Overall Width (Imperial) UOMin
Insulation MaterialVinyl
Maximum Conductor Size (Imperial)18 AWG
Maximum Operating Temperature (Celsius)105.0
Minimum Conductor Size (Metric)0.326 mm²
Connection Width (Imperial) UOMin
Minimum Conductor Size (Imperial)22 AWG
Connection TypeCrimp
Product ColorRed
Terminal TypeRing
