3M Products & Supplies

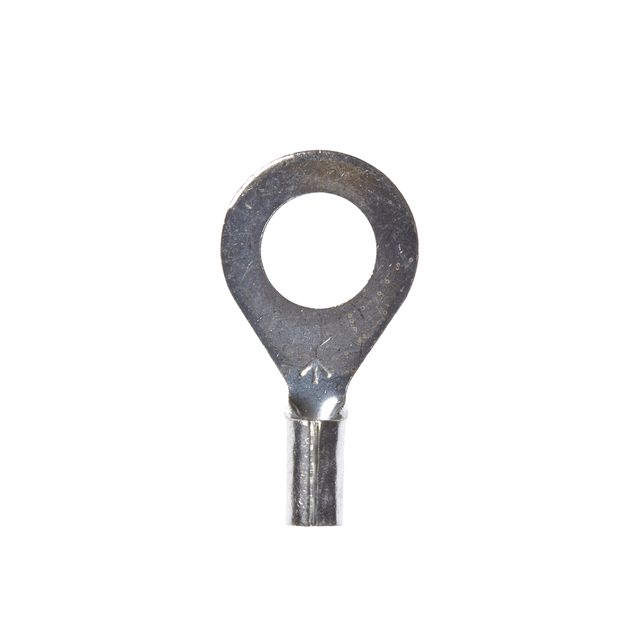

3M™ Scotchlok™ Ring Tongue, Non-Insulated Butted Seam MU18-6R/SK, Stud Size 6, 1000/Case - 7100163916

Sold As: 1000-Pack
SKU: 7100163916
MPN: 7100163916
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007010005
3M ID: 80610034623
5 Digit UPC: 1000
$147.52 ($0.15 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Non-Insulated Butted Seam Ring Tongue terminal ensures an ideal fit while offering reliable and safe performance. The non-insulated, butted-seam barrel has a beveled mouth that guides the wire into position. Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
  • Standard-style ring tongue fits around the stud
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Non-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Beveled mouth offers easy insertion of wires
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Terminal StyleStandard
Terminal TypeRing
Overall Length (Imperial)0.6
Barrel StyleButted
Maximum Conductor Size (Metric)0.823
Ring TypeStandard
Overall Width (Imperial)0.25
Connection Width (Metric) UOMmm
Insulation MaterialNon-insulated
Connection Width (Metric)3.5
Overall Width (Imperial) UOMin
Minimum Conductor Size (Imperial)22 AWG
Overall Length (Imperial) UOMin
UL File NumberE23438
Connection Width (Imperial) UOMin
Maximum Conductor Size (Imperial)18 AWG
Barrel Length (Imperial)0.25 Inch
Connection Width (Imperial)0.138
Maximum Operating Temperature (Celsius)105.0
Minimum Conductor Size (Metric)0.326 mm²
Solution forWireless Network: Infrastructure Accessories
Maximum Operating Temperature (Celsius) UOMDegree
