3M Products & Supplies

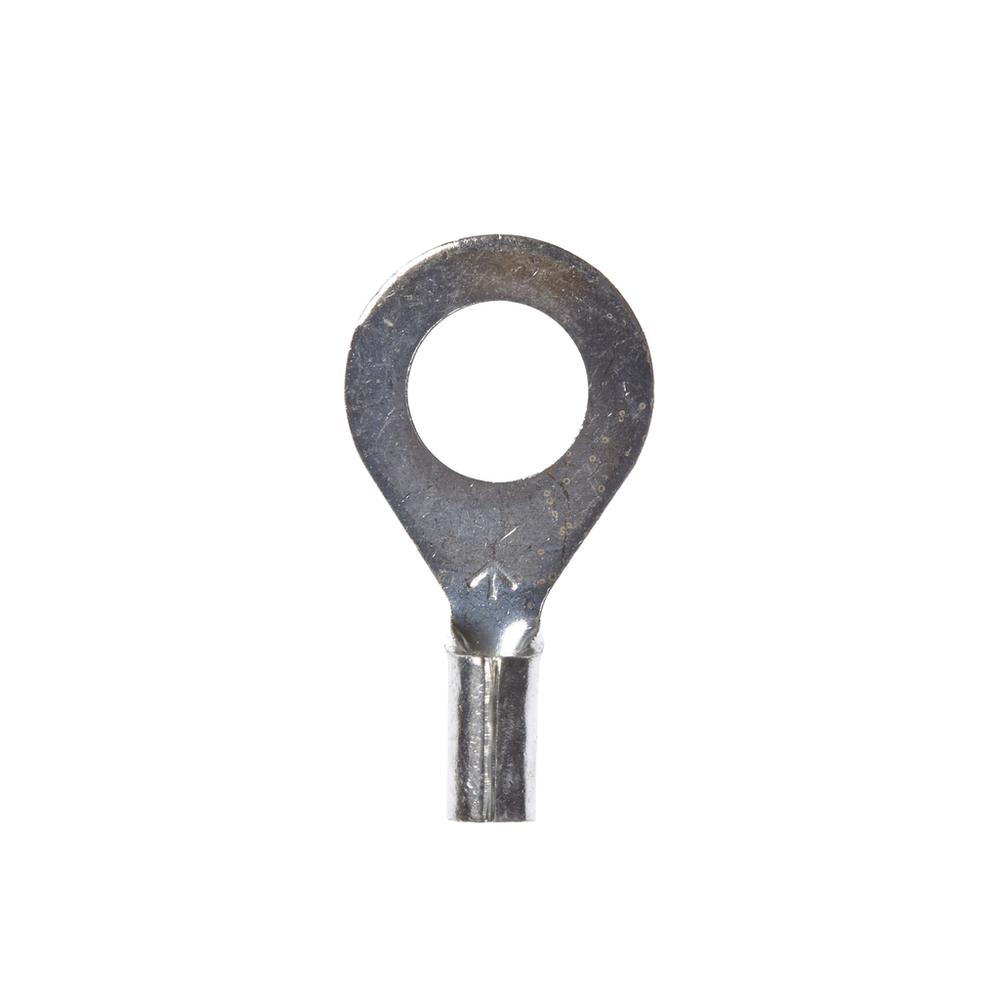

3M™ Scotchlok™ Ring Tongue, Non-Insulated Butted Seam MU18-14R/SK, Stud Size 1/4, 1000/Case - 7100163919

Sold As: 1000-Pack
SKU: 7100163919
MPN: 7100163919
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007010081
3M ID: 80610034714
5 Digit UPC: 1008
$277.95 ($0.28 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Non-Insulated Butted Seam Ring Tongue terminal ensures an ideal fit while offering reliable and safe performance. The non-insulated, butted-seam barrel has a beveled mouth that guides the wire into position. Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Non-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
  • Standard-style ring tongue fits around the stud
  • Beveled mouth offers easy insertion of wires
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Overall Width (Imperial) UOMin
Overall Width (Imperial)0.47
Solution forWireless Network: Infrastructure Accessories
Connection Width (Imperial)0.25
UL File NumberE23438
Connection Width (Metric)6.35
Connection Width (Metric) UOMmm
Ring TypeStandard
Overall Length (Imperial) UOMin
Minimum Conductor Size (Imperial)22 AWG
Insulation MaterialNon-insulated
Maximum Operating Temperature (Celsius) UOMDegree
Overall Length (Imperial)0.89
Maximum Conductor Size (Imperial)18 AWG
Maximum Conductor Size (Metric)0.823
Maximum Operating Temperature (Celsius)105.0
Barrel StyleButted
Terminal StyleStandard
Connection Width (Imperial) UOMin
Terminal TypeRing
Barrel Length (Imperial)0.25 Inch
Minimum Conductor Size (Metric)0.326 mm²
